Stock Status: 1x unit in stock

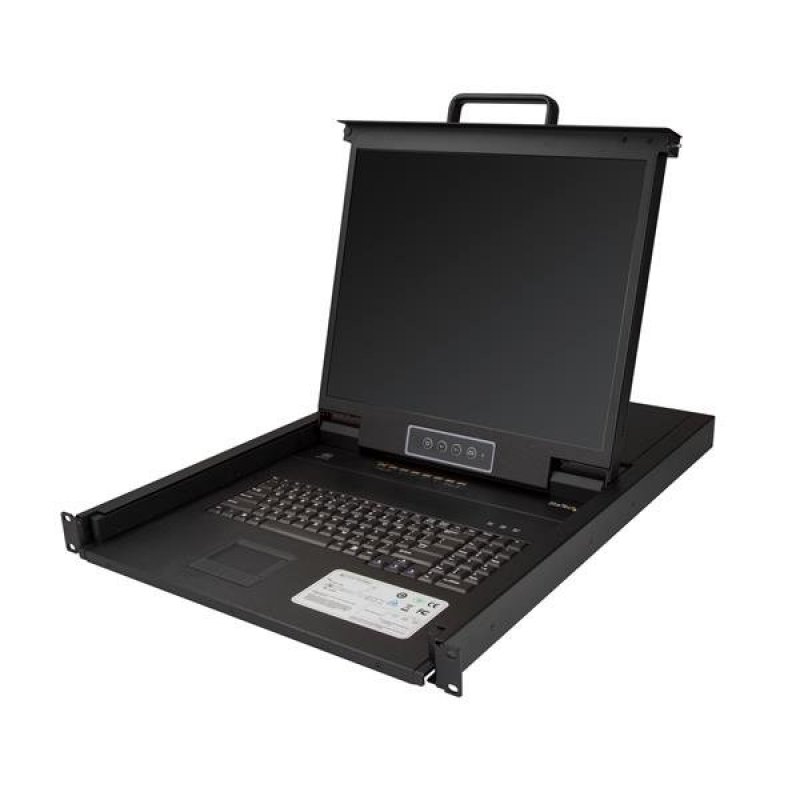

This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. You can also connect to additional servers by connecting to KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
| Certificates |
| Certification |
CE, FCC, PSE, UL, REACH |
| RoHS compliance |
Y |
| Weight & dimensions |
| Width |
483 mm |
| Height |
43 mm |
| Depth |
643 mm |
| Weight |
13.4 kg |
| Mounting depth (min) |
60.5 cm |
| Mounting depth (max) |
89 cm |
| Technical details |
| Mean time between failures (MTBF) |
50000 h |
| Product colour |
Black |
| Operating relative humidity (H-H) |
10 - 80% |
| Daisy chain |
N |
| Key lock |
N |
| Number of computers controlled |
8 |
| Rack capacity |
1U |
| Audio support |
N |
| IP control |
N |
| Sustainability certificates |
CE, RoHS, UL ECOLOGO |
| Material |
Steel |
| Display |
| Display diagonal |
48.3 cm (19") |
| Display resolution |
1280 x 1024 pixels |
| Display |
TFT LCD |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Pixel pitch |
0.264 x 0.264 mm |
| Display type |
LCD |
| Display number of colours |
16.78 million colours |
| Colour depth |
8 bit |
| Power |
| Power consumption (typical) |
21 W |
| AC adapter input voltage |
100 - 240 V |
| Input current |
1.5 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Keyboard |
| Built-in touchpad |
Y |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
9 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| USB 2.0 Type-A ports quantity |
2 |
| Packaging data |
| Package width |
615 mm |
| Package depth |
765 mm |
| Package height |
190 mm |
| Package volume |
19000 cm³ |
| Packaging content |
| Cables included |
KVM |
| Screws included |
Y |
| Number of screws |
8 |
| Mounting brackets included |
Y |
| Cage nuts included |
Y |
| Number of cage nuts |
8 |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Quick installation guide |
Y |
| Logistics data |
| Master (outer) case width |
61.5 cm |
| Master (outer) case length |
76.5 cm |
| Master (outer) case height |
19 cm |
| Products per master (outer) case |
1 pc(s) |
Features
StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: TFT LCD. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Power consumption (typical): 21 W, AC adapter input voltage: 100 - 240 V, Input current: 1.5 A. Width: 483 mm, Height: 43 mm, Depth: 643 mm. Package width: 615 mm, Package depth: 765 mm, Package height: 190 mm
Product Description
This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. You can also connect to additional servers by connecting to KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
