Stock Status: 1x unit in stock

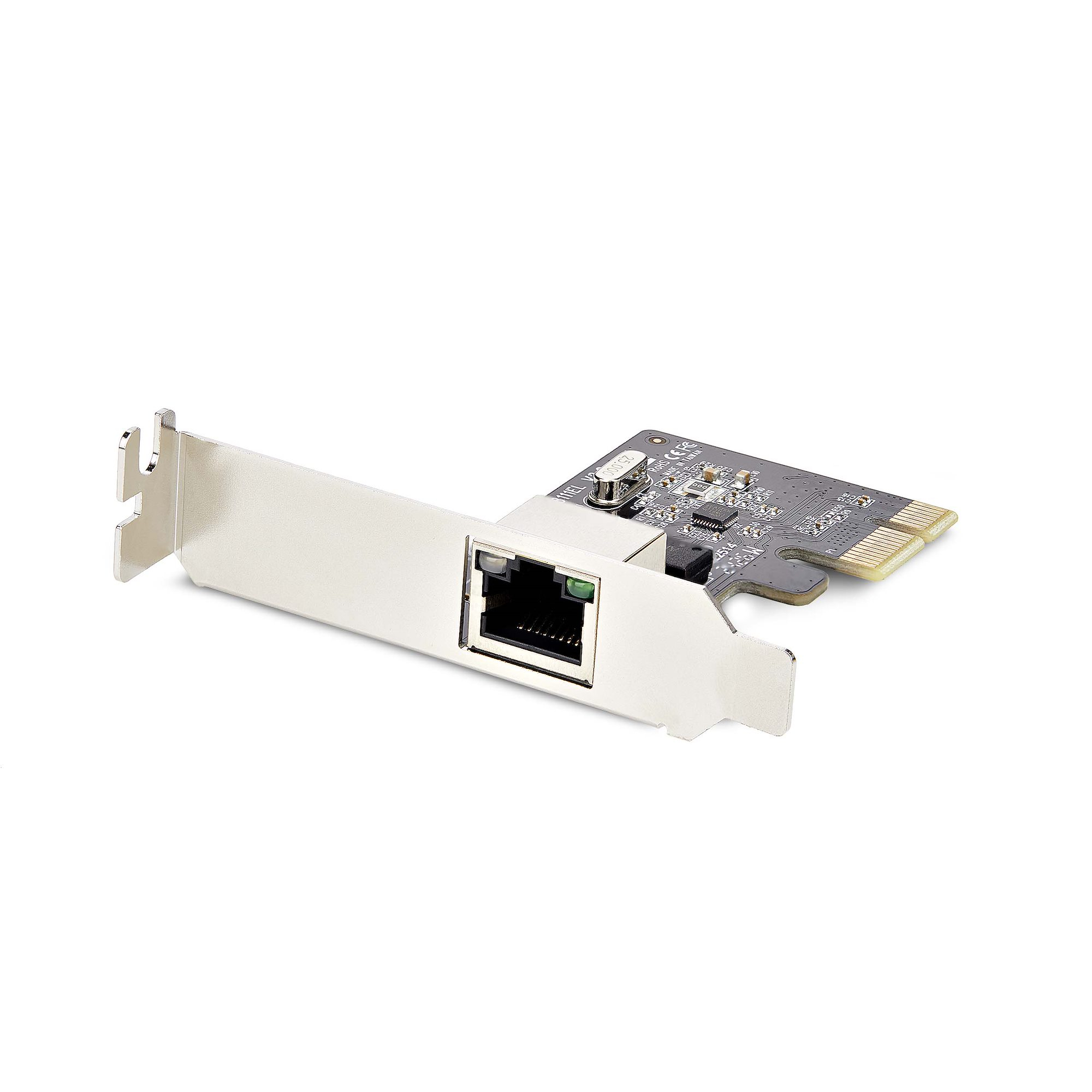

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
This TAA-compliant Gigabit Ethernet card adds a gigabit Ethernet interface to a desktop or server.
Plug And Play Compatible
This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.
Performance and Management
This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.
This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100/1000Mbps, and VLANs for streamlined network management.
Universal Fit
The PCI Express NIC includes a pre-installed low-profile bracket for compatibility with small form-factor computers, as well as a standard-profile bracket for full-sized desktops and servers.
The StarTech.com Advantage
Specs
| Networking |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000BaseT(X) |
| Wake-on-LAN ready |
Yes |
| Jumbo frames support |
Yes |
| Auto-negotiation |
Yes |
| Jumbo frames |
9000 |
| VLAN support |
Yes |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Weight & dimensions |
| Width |
42 mm |
| Depth |
65 mm |
| Height |
18 mm |
| Weight |
34 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| Operational conditions |
| Operating temperature (T-T) |
5 - 70 °C |
| Storage temperature (T-T) |
0 - 80 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Design |
| Internal |
Yes |
| Component for |
PC/Server |
| Product colour |
Black |
| Chipset |
Realtek RTL8111H |
| LED indicators |
Activity, Link |
| Logistics data |
| Master (outer) case width |
685 mm |
| Master (outer) case length |
345 mm |
| Master (outer) case height |
306 mm |
| Products per master (outer) case |
75 pc(s) |
| Packaging data |
| Package width |
142 mm |
| Package depth |
170 mm |
| Package height |
30 mm |
| Package weight |
100.5 g |
| Technical details |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Packaging content |
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
Features
StarTech.com 1-Port Gigabit PCIe Network Adapter Card, Low-Profile NIC, 10/100/1000Mbps PCI Express LAN Card, Realtek RTL8111H, Windows and Linux, TAA Compliant. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Black
Product Description
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
This TAA-compliant Gigabit Ethernet card adds a gigabit Ethernet interface to a desktop or server.
Plug And Play Compatible
This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.
Performance and Management
This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.
This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100/1000Mbps, and VLANs for streamlined network management.
Universal Fit
The PCI Express NIC includes a pre-installed low-profile bracket for compatibility with small form-factor computers, as well as a standard-profile bracket for full-sized desktops and servers.
The StarTech.com Advantage
