Stock Status: 1x unit in stock
PCI Express 2.0 | LPT | PCIe 1x Slot | 2.5 Mbps | 2-Year Warranty

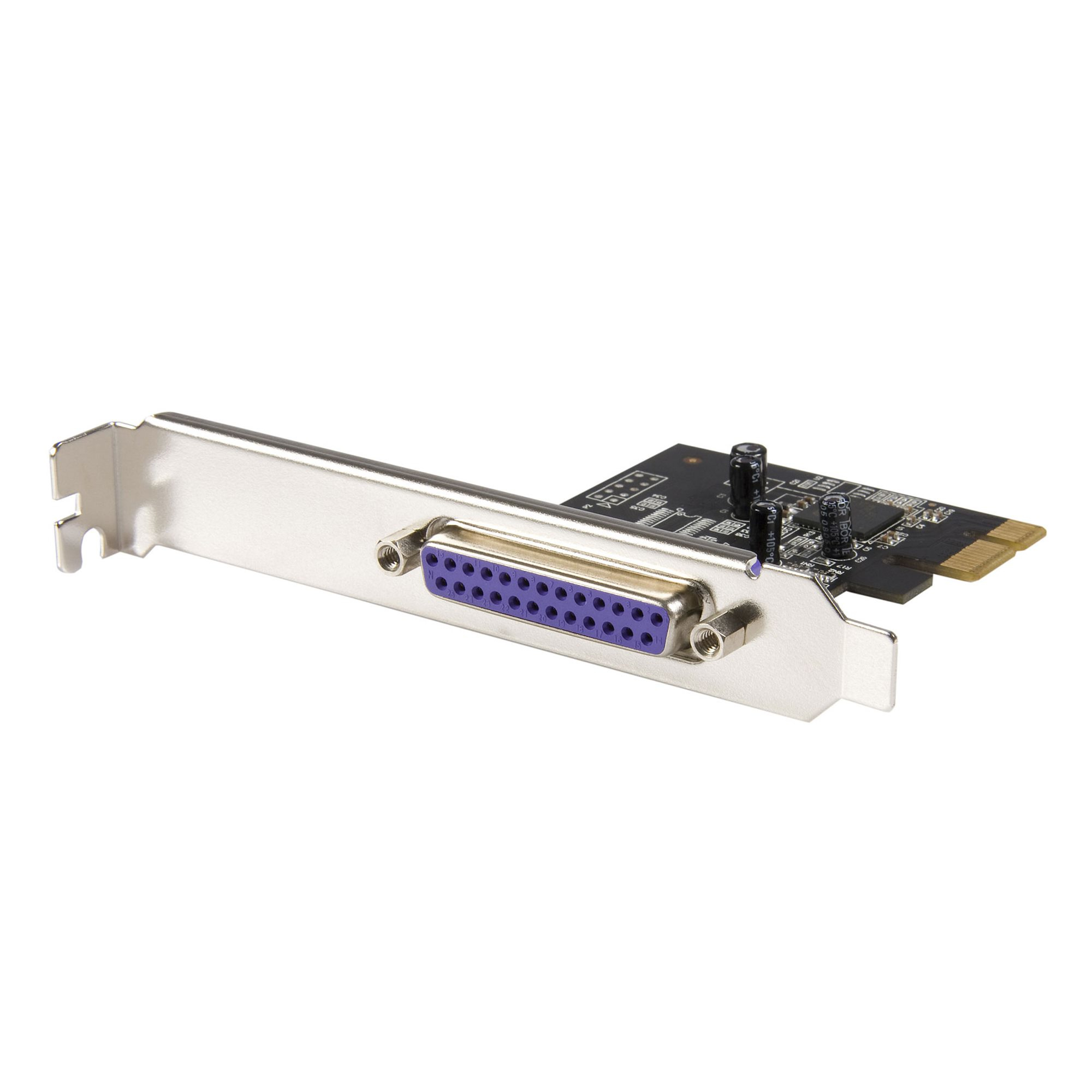

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.
Adds a Parallel Port to Your Desktop Computer
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Wide Installation Compatibility
This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
PEX1P2 is backed by a StarTech.com 2-year warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
Parallel |
| Expansion card standard |
PCIe 1.0a |
| Parallel ports quantity |
1 |
| Weight & dimensions |
| Width |
110 mm |
| Depth |
210 mm |
| Height |
120 mm |
| Weight |
42 g |
| Other features |
| Data transfer rate |
2.5 Mbit/s |
| Material |
Steel |
| Design |
| Internal |
Yes |
| Product colour |
Black, Steel |
| Mean time between failures (MTBF) |
26297 h |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case width |
450 mm |
| Master (outer) case length |
379 mm |
| Master (outer) case height |
327 mm |
| Packaging data |
| Mounting brackets included |
Yes |
| Drivers included |
Yes |
| Manual |
Yes |
| Package width |
216 mm |
| Package depth |
146 mm |
| Package height |
37 mm |
| Package weight |
133 g |
| Features |
| Chipset |
PLX/Oxford - OXPCIe952 |
| Technical details |
| Compliance certificates |
CE, RoHS |
Features
StarTech.com 1-Port Parallel PCIe Card - PCI Express to Parallel DB25 Adapter Card - Desktop Expansion LPT Controller for Printers, Scanners & Plotters - SPP/ECP - Standard/Low Profile. Host interface: PCIe, Output interface: Parallel, Expansion card standard: PCIe 1.0a. Product colour: Black, Steel, Mean time between failures (MTBF): 26297 h. Chipset: PLX/Oxford - OXPCIe952. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 110 mm, Depth: 210 mm, Height: 120 mm
Product Description
PCI Express 2.0 | LPT | PCIe 1x Slot | 2.5 Mbps | 2-Year Warranty
This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.
Adds a Parallel Port to Your Desktop Computer
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Wide Installation Compatibility
This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
PEX1P2 is backed by a StarTech.com 2-year warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
