Stock Status: 1x unit in stock
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible

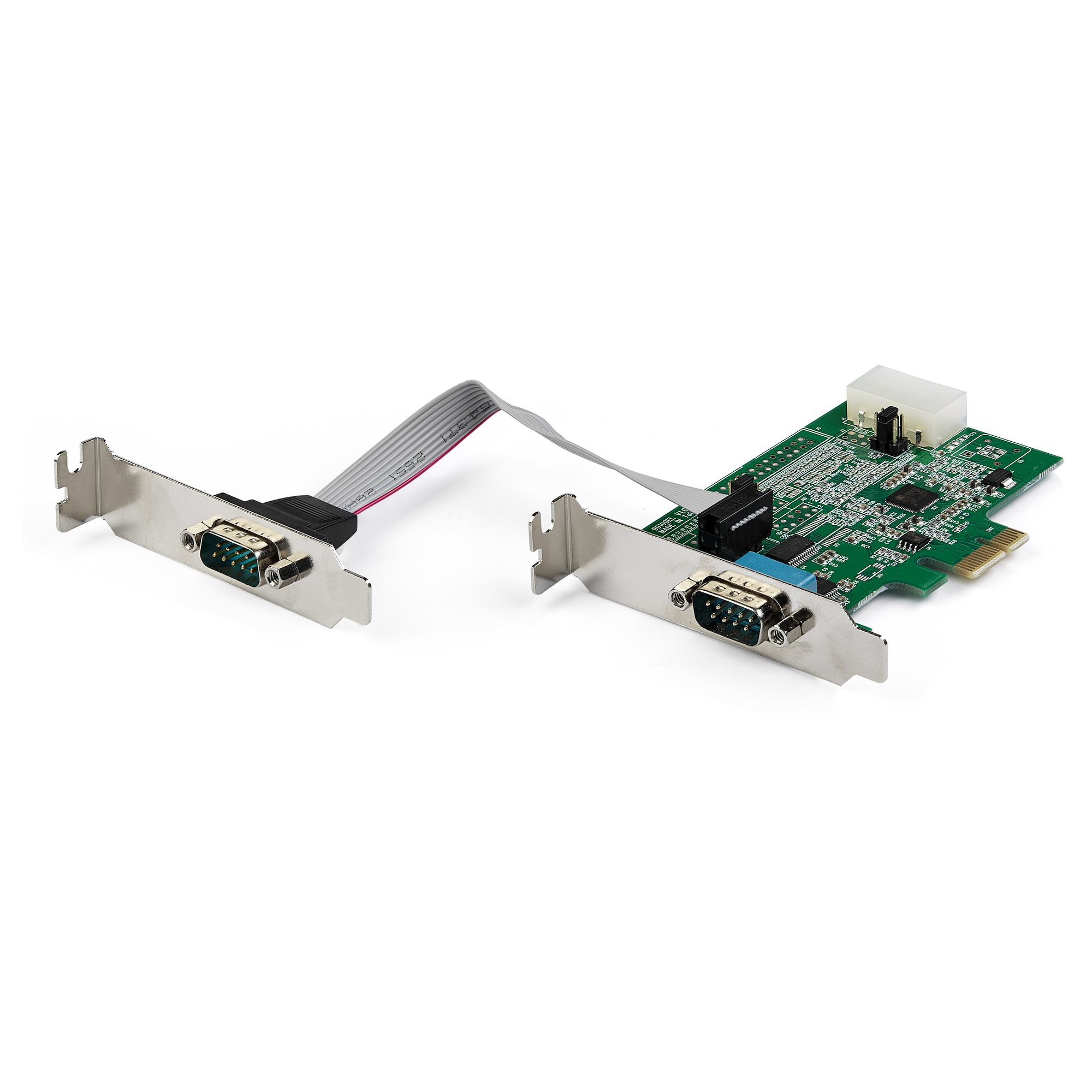

This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant
PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Ports & interfaces |
| Host interface |
Mini PCI Express |
| Output interface |
Serial |
| Expansion card standard |
PCIe 1.1 |
| Serial ports quantity |
2 |
| Serial interface type |
RS-232 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 80 °C |
| Storage temperature (T-T) |
-20 - 100 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Weight & dimensions |
| Width |
67 mm |
| Depth |
98 mm |
| Height |
18 mm |
| Weight |
55.6 g |
| Design |
| Internal |
Yes |
| Mean time between failures (MTBF) |
222366 h |
| Certification |
CE, FCC |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Products per master (outer) case |
75 pc(s) |
| Master (outer) case width |
355 mm |
| Master (outer) case length |
690 mm |
| Master (outer) case height |
317 mm |
| Packaging data |
| Quantity |
1 |
| Mounting brackets included |
Yes |
| Manual |
Yes |
| Package width |
142 mm |
| Package depth |
172 mm |
| Package height |
32 mm |
| Package weight |
146.4 g |
| Features |
| Chipset |
Asix AX99100 |
| Baud rate |
921.6 Kbit/s |
| FIFO (First In, First Out) |
256 B |
| Data bits |
5, 6, 7, 8, 9 |
| Stop bits |
1, 1.5, 2 |
| Parity bit |
Even, Mark, No, Odd, Space |
| Flow Control type |
No, RTS/CTS, XON/XOFF |
| Technical details |
| Compliance certificates |
RoHS |
Features
StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux. Host interface: Mini PCI Express, Output interface: Serial, Expansion card standard: PCIe 1.1. Mean time between failures (MTBF): 222366 h, Certification: CE, FCC. Chipset: Asix AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 67 mm, Depth: 98 mm, Height: 18 mm
Product Description
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible
This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant
PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
