Stock Status: 1x unit in stock
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1

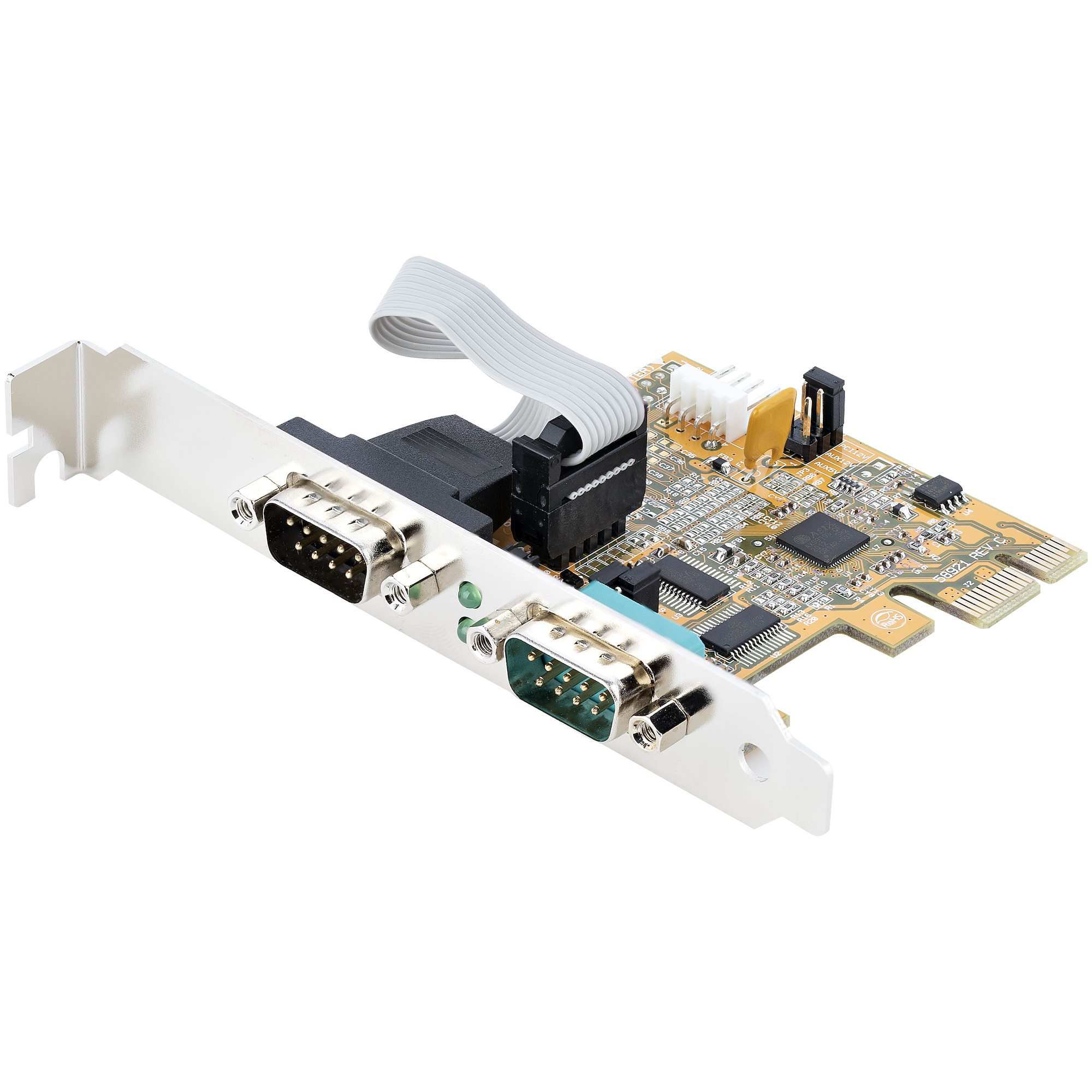

Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease
The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2016, Windows Server 2019 |
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
Serial |
| Expansion card form factor |
Full-height / Low-profile |
| Expansion card standard |
PCI 2.0 |
| Serial ports quantity |
2 |
| Serial interface type |
RS-232 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-40 - 75 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
65 mm |
| Depth |
67 mm |
| Height |
18 mm |
| Weight |
51 g |
| Design |
| Internal |
Yes |
| Product colour |
Yellow |
| LED indicators |
Activity |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Products per master (outer) case |
50 pc(s) |
| Master (outer) case width |
530 mm |
| Master (outer) case length |
440 mm |
| Master (outer) case height |
340 mm |
| Packaging data |
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
| Package width |
207 mm |
| Package depth |
144 mm |
| Package height |
38 mm |
| Package weight |
200 g |
| Features |
| Chipset |
ASIX - AX99100, ASIX - ZT3243LFEY |
| Baud rate |
921.6 Kbit/s |
| FIFO (First In, First Out) |
256 B |
| Data bits |
5, 6, 7, 8, 9 |
| Flow control support |
Yes |
| Parity bit |
Even, Mark, No, Odd, Space |
| Technical details |
| Compliance certificates |
CE, RoHS |
Features
StarTech.com 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Yellow, LED indicators: Activity. Chipset: ASIX - AX99100, ASIX - ZT3243LFEY, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2016, Windows Server 2019. Width: 65 mm, Depth: 67 mm, Height: 18 mm
Product Description
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1
Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease
The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
