Stock Status: 1x unit in stock
Add four ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection

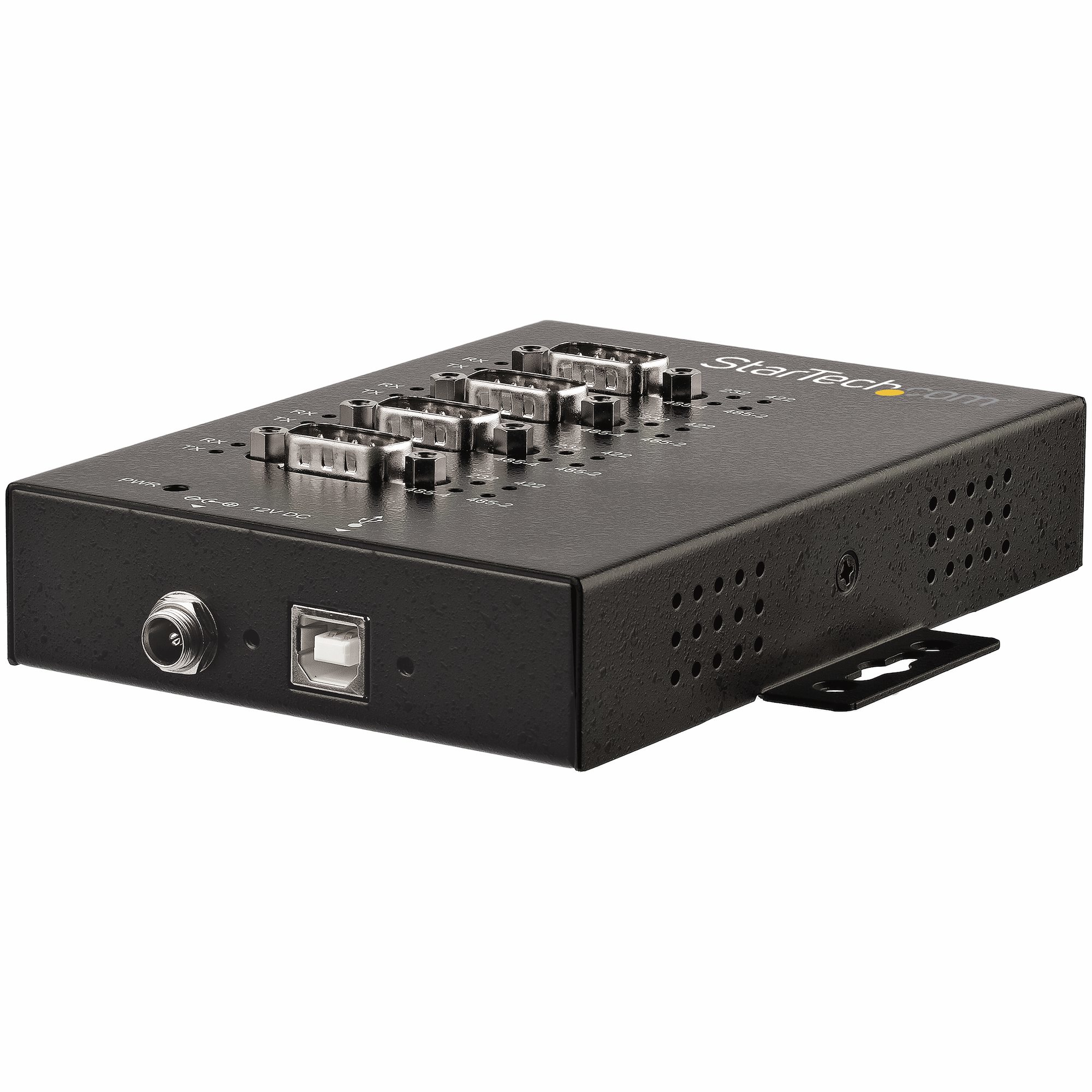

Add four extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
Supports multiple serial protocols
The versatile serial adapter converts a single USB port into four RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
Ideal for harsh environments
With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.
The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
Fast data transfers
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234854I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Window |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Output voltage |
12 V |
| Output current |
1 A |
| Power plug type |
Type N |
| Weight & dimensions |
| Width |
116 mm |
| Depth |
128 mm |
| Height |
25 mm |
| Weight |
382 g |
| Ports & interfaces |
| Ports quantity |
4 |
| Host interface |
USB 2.0 Type-B |
| Hub interfaces |
Serial |
| RS-232 ports |
4 |
| Other features |
| Chipset |
FTDI - FT4232H |
| Packaging content |
| Cables included |
USB |
| Manual |
Yes |
| DIN rail kit included |
Yes |
| Performance |
| Data bits |
7, 8 |
| Stop bits |
1, 2 |
| Parity bit |
Even, Mark, No, Odd, Space |
| Baud rate |
921.6 Kbit/s |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Logistics data |
| Master (outer) case width |
410 mm |
| Master (outer) case length |
420 mm |
| Master (outer) case height |
280 mm |
| Products per master (outer) case |
15 pc(s) |
| Harmonized System (HS) code |
84719000 |
| Packaging data |
| Package width |
165 mm |
| Package depth |
240 mm |
| Package height |
55 mm |
| Package weight |
598 g |
| Features |
| Product colour |
Black |
| Housing material |
Steel |
| Surge protection |
Yes |
| LED indicators |
Power |
| Plug and Play |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com 4 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection. Host interface: USB 2.0 Type-B, Hub interfaces: Serial. Product colour: Black, Housing material: Steel, LED indicators: Power. Output voltage: 12 V, Output current: 1 A, Power plug type: Type N. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows.... Width: 116 mm, Depth: 128 mm, Height: 25 mm
Product Description
Add four ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection
Add four extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
Supports multiple serial protocols
The versatile serial adapter converts a single USB port into four RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
Ideal for harsh environments
With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.
The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
Fast data transfers
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234854I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
