Stock Status: 1x unit in stock
Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

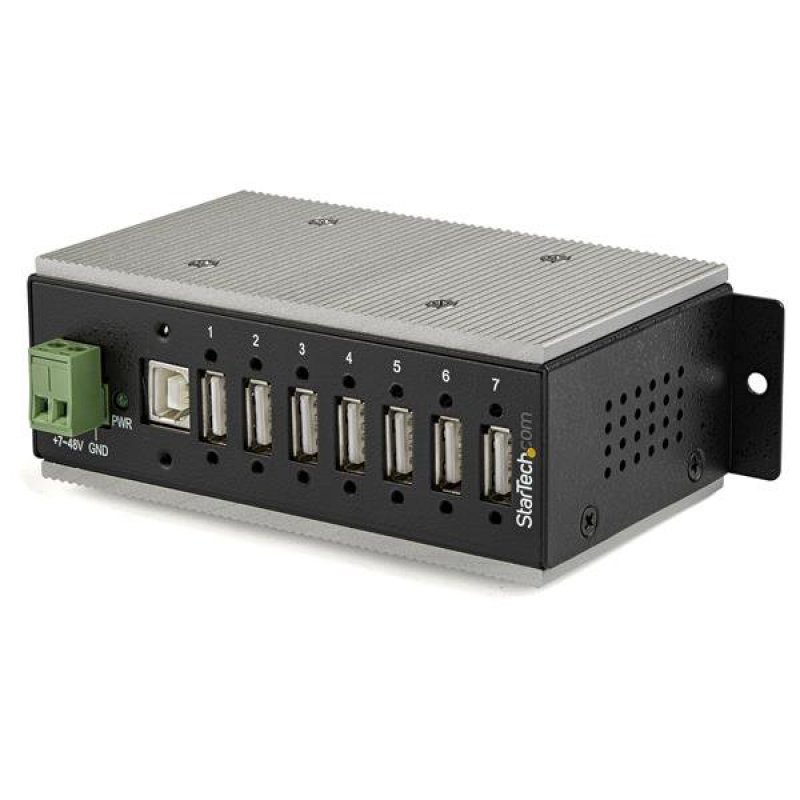

This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers seven connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The HB20A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Protects your connected devices with 15kV Air and 8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports
- Mount industrial USB hub where required with built-in mounting brackets or included DIN rails
Specs
| Operational conditions |
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Power consumption (typical) |
28 W |
| Input voltage |
7 - 48 V |
| Input current |
4 A |
| Weight & dimensions |
| Width |
63 mm |
| Depth |
130 mm |
| Height |
42 mm |
| Weight |
404 g |
| Ports & interfaces |
| Ports quantity |
7 |
| Host interface |
USB 2.0 Type-B |
| Hub interfaces |
USB 2.0 |
| USB 2.0 ports quantity |
7 |
| Terminal block port |
Y |
| Other features |
| Chipset |
Genesys Logic - GL852GT |
| Packaging content |
| Cables included |
USB |
| Manual |
Y |
| DIN rail kit included |
Y |
| Logistics data |
| Master (outer) case width |
43.5 cm |
| Master (outer) case length |
56.5 cm |
| Master (outer) case height |
26 cm |
| Quantity per master (outer) case |
20 pc(s) |
| Products per master (outer) case |
20 pc(s) |
| Packaging data |
| Package width |
170 mm |
| Package depth |
240 mm |
| Package height |
55 mm |
| Package weight |
600 g |
| Features |
| Data transfer rate |
480 Mbit/s |
| Product colour |
Black |
| Housing material |
Metal |
| Surge protection |
Y |
| LED indicators |
Power |
| Plug and Play |
Y |
| Certification |
CE, FCC, TAA, RoHS, REACH |
Features
StarTech.com 7 Port USB 2.0 Hub - Metal Industrial USB-A Hub (7x USB-A) with ESD & Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub. Host interface: USB 2.0 Type-B, Hub interfaces: USB 2.0. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Metal. Power consumption (typical): 28 W, Input voltage: 7 - 48 V, Input current: 4 A. Width: 63 mm, Depth: 130 mm, Height: 42 mm. Package width: 170 mm, Package depth: 240 mm, Package height: 55 mm
Product Description
Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers seven connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The HB20A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Protects your connected devices with 15kV Air and 8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports
- Mount industrial USB hub where required with built-in mounting brackets or included DIN rails
