Stock Status: 1x unit in stock

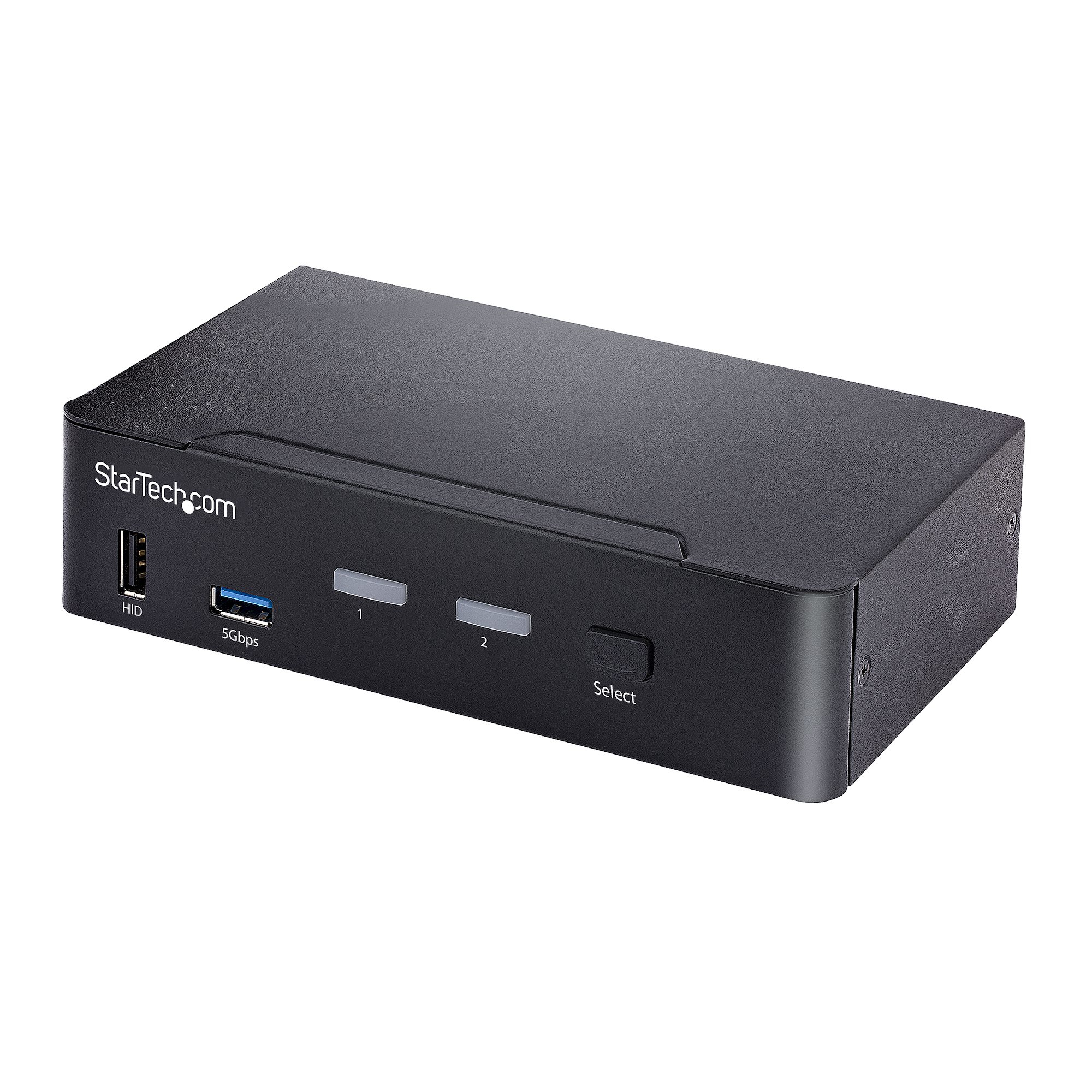

DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant
This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.
4K 60Hz Resolution
This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Analog and Digital Audio
This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.
Intuitive Control
The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort |
| DisplayPort version |
1.2 |
| Console USB ports quantity |
6 |
| Console DisplayPorts ports quantity |
1 |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| Headphone outputs |
1 |
| Number of microphone inputs |
1 |
| Weight & dimensions |
| Width |
140 mm |
| Depth |
160 mm |
| Height |
40 mm |
| Weight |
600 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
AC |
| Input voltage |
100 - 240 V |
| Input current |
1.2 A |
| Output voltage |
12 V |
| Output current |
3 A |
| Power plug type |
Type M |
| Display |
| Built-in display |
No |
| Packaging content |
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Rubber feet |
Yes |
| Other features |
| IP control |
No |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Mean time between failures (MTBF) |
158000 h |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
5120 x 1440 pixels |
| Video bandwidth |
60 Hz |
| Data transfer rate (max) |
5 Gbit/s |
| Scan interval |
3,8,15,30 s |
| HDCP |
Yes |
| Chipset |
Parade - PS8461, Etron - EJ899I |
| Audio channels |
2.0 |
| Number of displays supported |
1 |
| Logistics data |
| Master (outer) case width |
300 mm |
| Master (outer) case length |
397 mm |
| Master (outer) case height |
257 mm |
| Products per master (outer) case |
6 pc(s) |
| Packaging data |
| Package width |
184 mm |
| Package depth |
238 mm |
| Package height |
89 mm |
| Package weight |
1 kg |
Features
StarTech.com SV231DPUCA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 5120 x 1440 pixels, Video bandwidth: 60 Hz. Product colour: Black, Mean time between failures (MTBF): 158000 h. Power source: AC, Input voltage: 100 - 240 V, Input current: 1.2 A. Width: 140 mm, Depth: 160 mm, Height: 40 mm
Product Description
DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant
This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.
4K 60Hz Resolution
This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Analog and Digital Audio
This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.
Intuitive Control
The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
