Stock Status: 1x unit in stock

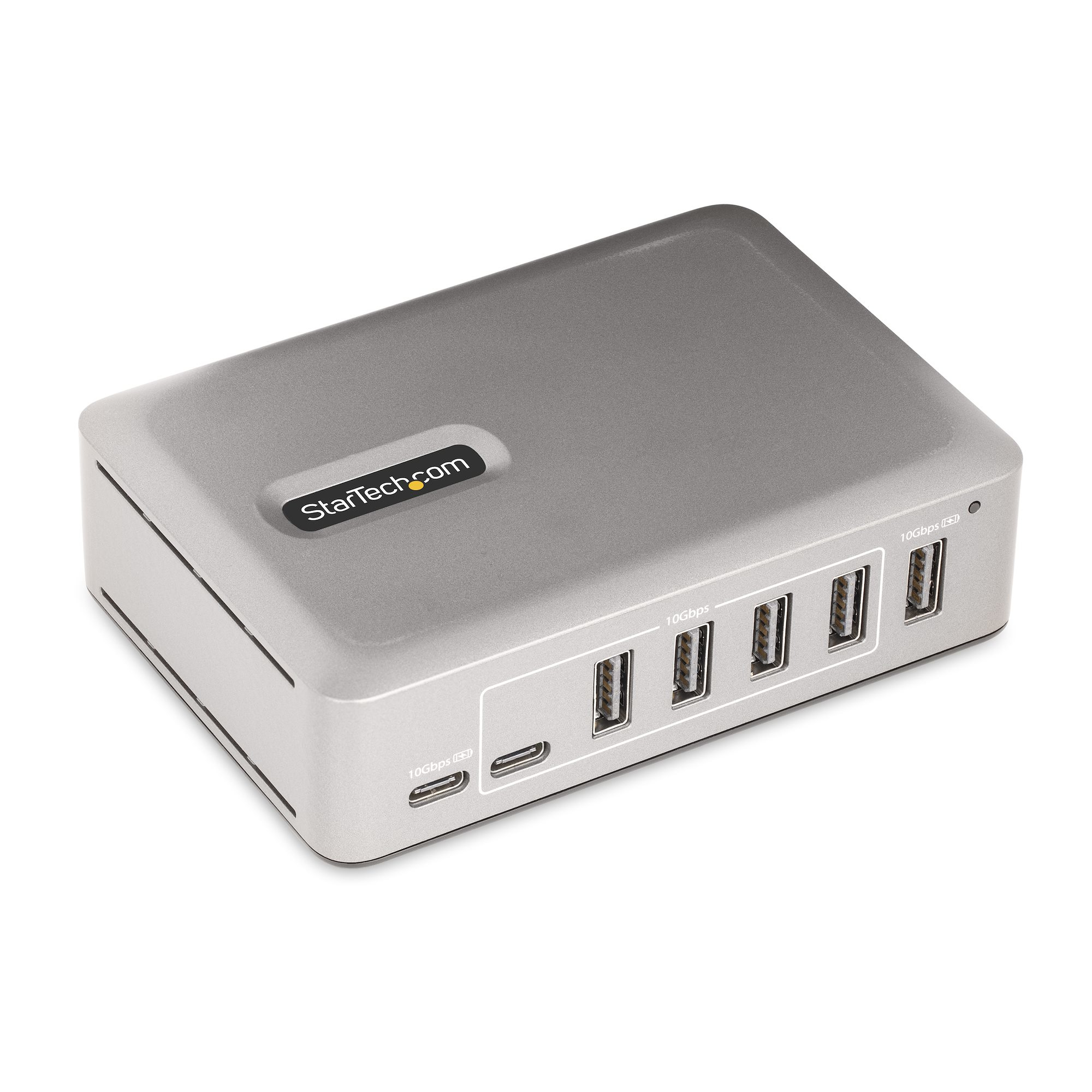

Add 5x USB-A and 2x USB-C ports to a USB-C enabled Desktop/Laptop
Add seven USB 3.2 Gen 2 (10Gbps) ports (5x USB-A, 2x USB-C) to a USB-C computer using this 7-Port USB-C Hub. The USB Hub is self-powered with an included power adapter. The USB Hub features Overcurrent Protection (OCP). OCP aids in preventing peripherals from overdrawing power, avoiding USB device dropouts, and the computers from shutting down unexpectedly. Support for Wake On USB enables USB communications, from devices connected to the hub, to take the computer out of standby or other power saving/sleep modes.
High Performance USB 3.2 Gen 2 (10Gbps) Hub
The USB Hub shares 10Gbps from the USB host device, enabling high-speed data transfers for high-performance applications. The USB hub is backward compatible with previous USB versions, including USB 3.2 Gen 1 (5Gpbs), USB 2.0 (480Mbps), and USB 1.1 (12Mbps). It features five USB-A ports and two USB-C ports. This combination of ports enables support for a wide range of modern and legacy USB devices, such as external storage devices (e.g., thumb drives, HDDs/SSDs), HD Cameras (e.g., webcams), mice, keyboards, and USB headsets.
Power and Charge USB Devices
The USB hub is self-powered, using the 65W power adapter. The hub features two USB BC 1.2 ports (1x USB-A, 1x USB-C), each providing 2.4A (12W) of power simultaneously, making it ideal to charge battery powered USB devices like smartphones, and tablets, while also providing a data connection. These ports will provide power with or without a host computer connected, with support for both CDP (Charging Downstream Port) & DCP (Dedicated Charging Port) applications. The hub features four USB-A, and one USB-C port that each provide the USB 3.2 standard of 0.9A (4.5W) of power. The included power adapter ensures that all ports will always provide specified power regardless of how many devices are connected.
USB-IF Certified Host Cable
A high-quality USB-IF certified USB-C host cable is included. The cable features a screw-locking, connector to ensure a secure and reliable connection to the USB hub. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables.
Plug-and-Play Installation
The 7-Port USB Hub is OS independent supporting all operating systems, including Windows, macOS, ChromeOS, iPadOS and Android. Installation is automatic upon connection to a host computer.
Mount the USB Hub to a wall, desk, or VESA mount, using StarTech.com hub mounts: SSPMSVESA or SSPMSUDWM.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The applicable software for this product is the USB Event Monitoring Utility. Use this utility to track and log any connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools
This product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Power |
| Power supply type |
DC |
| Power consumption (typical) |
65 W |
| Input voltage |
100 - 240 V |
| Output voltage |
19 V |
| Output current |
3.42 A |
| Power plug type |
Type M |
| Weight & dimensions |
| Width |
80 mm |
| Depth |
115 mm |
| Height |
30 mm |
| Weight |
287 g |
| Ports & interfaces |
| Ports quantity |
7 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| DC-in jack |
Yes |
| Other features |
| Chipset |
VIA - VL822-Q7, VIA - VL162 |
| Packaging content |
| AC adapter included |
Yes |
| Included power plug types |
EU, UK, US |
| Cables included |
USB Type-C to USB Type-C |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Logistics data |
| Master (outer) case width |
272 mm |
| Master (outer) case length |
380 mm |
| Master (outer) case height |
510 mm |
| Products per master (outer) case |
10 pc(s) |
| Networking |
| UASP support |
Yes |
| Packaging data |
| Package width |
170 mm |
| Package depth |
225 mm |
| Package height |
93 mm |
| Package weight |
287 g |
| Features |
| Data transfer rate |
10000 Mbit/s |
| Product colour |
Silver |
| LED indicators |
Status |
| Cable jacket material |
Thermoplastic elastomer (TPE) |
| Cable length |
1 m |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com 7-Port USB-C Hub - 5x USB-A + 2x USB-C - Self-Powered w/65W Power Supply - USB 3.1 10Gbps - Desktop/Laptop USB Hub w/3ft USB-IF Certified Locking Cable - USB C Hub. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Product colour: Silver, LED indicators: Status. Power supply type: DC, Power consumption (typical): 65 W, Input voltage: 100 - 240 V. Width: 80 mm, Depth: 115 mm, Height: 30 mm. Package width: 170 mm, Package depth: 225 mm, Package height: 93 mm
