Stock Status: 1x unit in stock
Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selection
This USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.
100W Power Delivery Pass-through
Dual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.
Universal Compatibility
The 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Ready for Quick Deployment

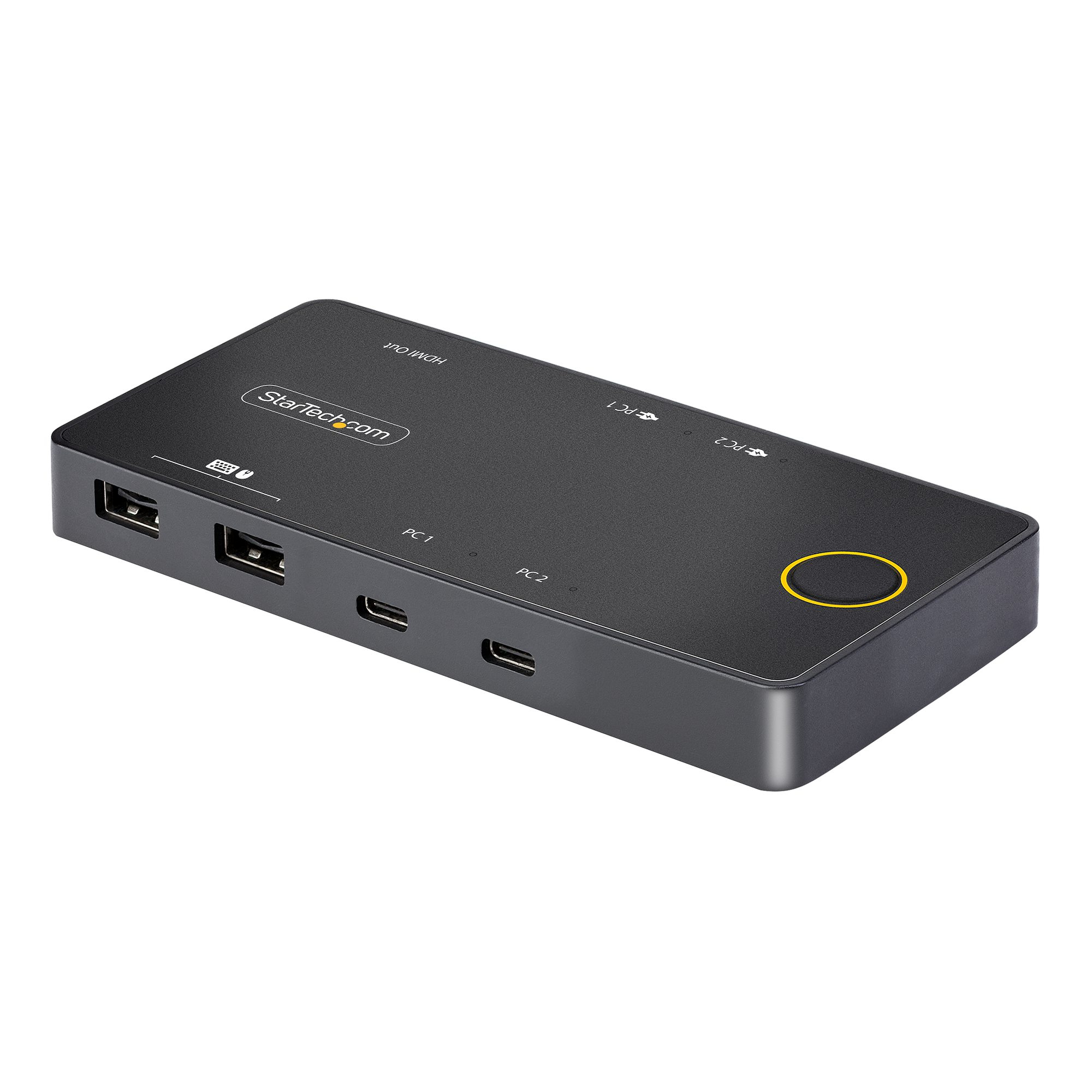

The KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.
The StarTech.com Advantage
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Console ports |
HDMI, USB A, USB C |
| Console USB ports quantity |
4 |
| Console HDMI ports quantity |
1 |
| Weight & dimensions |
| Width |
70 mm |
| Depth |
140 mm |
| Height |
15 mm |
| Weight |
200 g |
| Operational conditions |
| Operating temperature (T-T) |
5 - 55 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Power |
| Power consumption (typical) |
10 W |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| Display |
| Built-in display |
No |
| Packaging content |
| Cables included |
USB Type-C |
| Quick installation guide |
Yes |
| Other features |
| IP control |
No |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Cable length |
1 m |
| LED indicators |
Power |
| Push button |
Yes |
| Hot keys |
No |
| Mean time between failures (MTBF) |
50000 h |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
4096 x 2160 pixels |
| Video bandwidth |
75 Hz |
| Data transfer rate (max) |
0.48 Gbit/s |
| Plug and Play |
Yes |
| Chipset |
VLI - VL103R, VLI - VL171, Parade - PS186, VLI - VL817 |
| Audio channels |
7.1 |
| Logistics data |
| Master (outer) case width |
410 mm |
| Master (outer) case length |
470 mm |
| Master (outer) case height |
310 mm |
| Products per master (outer) case |
20 pc(s) |
| Packaging data |
| Package width |
120 mm |
| Package depth |
172 mm |
| Package height |
85 mm |
| Package weight |
440 g |
| Sustainability |
| Compliance certificates |
CE, RoHS |
| Sustainability compliance |
Yes |
Features
StarTech.com 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 75 Hz. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Cable length: 1 m. Power consumption (typical): 10 W, USB Power Delivery up to: 100 W. Compliance certificates: CE, RoHS
Product Description
Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selection
This USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.
100W Power Delivery Pass-through
Dual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.
Universal Compatibility
The 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Ready for Quick Deployment
The KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.
The StarTech.com Advantage
