Stock Status: 1x unit in stock

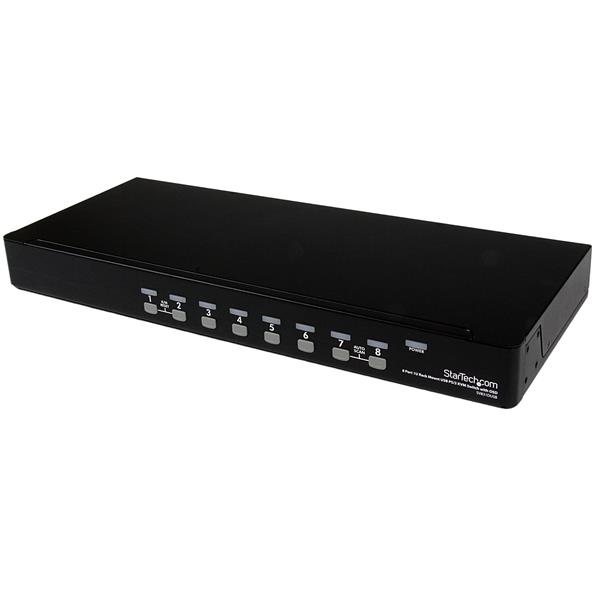

Control up to 8 USB or PS/2-connected computers from one keyboard, mouse and monitor
The SV831DUSBGB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.
This high quality USB PS/2 KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Cascade configuration adds scalability and offers support for control of up to 56 computers
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Specs
| Ports & interfaces |
| Number of computers controlled |
8 |
| Keyboard port type |
USB, PS/2 |
| Video port type |
VGA |
| Audio connections |
N |
| DC-in jack |
Y |
| Weight & dimensions |
| Width |
180 mm |
| Depth |
438 mm |
| Height |
45 mm |
| Weight |
2.9 kg |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
0 - 80% |
| Power |
| AC input voltage |
110-240 V |
| Display |
| Built-in display |
N |
| Packaging content |
| Cables included |
PS/2 |
| Manual |
Y |
| AC adapter included |
Y |
| Other features |
| Connectivity technology |
Wired |
| Power supply type |
110 - 240 V AC |
| Dimensions (WxDxH) |
180 x 438 x 45 mm |
| Ports quantity |
8 |
| Design |
| Product colour |
Black |
| Performance |
| Maximum analog resolution |
1920 x 1440 pixels |
| Number of users |
1 user(s) |
| Packaging data |
| Package width |
88 mm |
| Package depth |
595 mm |
| Package height |
264 mm |
| Package weight |
3.45 kg |
Features
StarTech.com 8 Port 1U Rackmount USB PS/2 KVM Switch with OSD. Keyboard port type: USB, PS/2, Video port type: VGA. Maximum analog resolution: 1920 x 1440 pixels, Number of users: 1 user(s). Product colour: Black. AC input voltage: 110-240 V. Width: 180 mm, Depth: 438 mm, Height: 45 mm
Product Description
Control up to 8 USB or PS/2-connected computers from one keyboard, mouse and monitor
The SV831DUSBGB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.
This high quality USB PS/2 KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Cascade configuration adds scalability and offers support for control of up to 56 computers
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution
