Stock Status: 1x unit in stock
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog AudioThis 4 port KVM switch combines 4K (60Hz) digital display capabilities with control of our connected computers.4K 60Hz Picture and Full Audio SupportThe HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.Integrated USB HubThe integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.Windows, Mac & Linux CompatibleWhile supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.Easy to OperateThe front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.This 4 port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Specs
| Ports & interfaces |
| Number of computers controlled |
1 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| HDMI ports quantity |
5 |
| HDMI version |
2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| Console USB ports quantity |
4 |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| Audio connections |
Yes |
| Headphone outputs |
5 |
| Number of microphone inputs |
5 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
130 mm |
| Depth |
220 mm |
| Height |
44 mm |
| Weight |
1.1 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
1 A |
| Output voltage |
12 V |
| Output current |
3 A |
| Power consumption (typical) |
36 W |
| Power plug type |
Type M |
| Compatible power plug types |
EU, UK, US |
| Display |
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Packaging content |
| Manual |
Yes |
| Rubber feet |
Yes |
| Other features |
| IP control |
No |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Mean time between failures (MTBF) |
143000 h |
| Certification |
CE, FCC, RoHS |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Data transfer rate (max) |
5 Gbit/s |
| Scan interval |
3,8,15,30 s |
| Daisy chain |
No |
| Chipset |
Genesys Logic - GL3523 |
| Audio channels |
7.1 |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
545 mm |
| Master (outer) case length |
438 mm |
| Master (outer) case height |
258 mm |
| Products per master (outer) case |
6 pc(s) |
| Packaging data |
| Package width |
212 mm |
| Package depth |
409 mm |
| Package height |
87 mm |
| Package weight |
1.8 kg |
Features

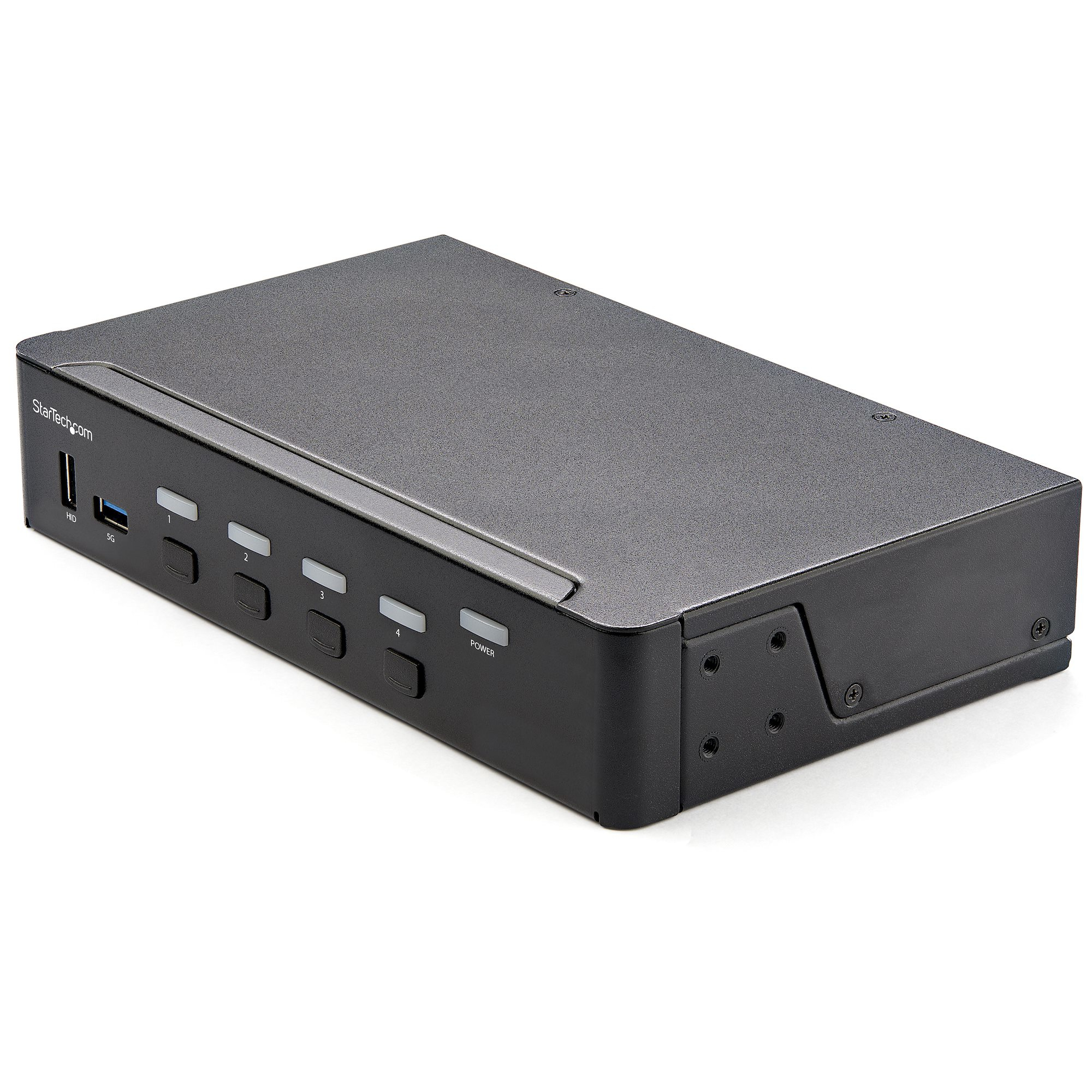

StarTech.com 4 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) and 4x USB 2.0 HID, Audio - Hotkey Switching - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 5 Gbit/s. Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 143000 h. AC input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 12 V. Width: 130 mm, Depth: 220 mm, Height: 44 mm
Product Description
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog AudioThis 4 port KVM switch combines 4K (60Hz) digital display capabilities with control of our connected computers.4K 60Hz Picture and Full Audio SupportThe HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.Integrated USB HubThe integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.Windows, Mac & Linux CompatibleWhile supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.Easy to OperateThe front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.This 4 port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.The StarTech.com Advantage
