Stock Status: 1x unit in stock

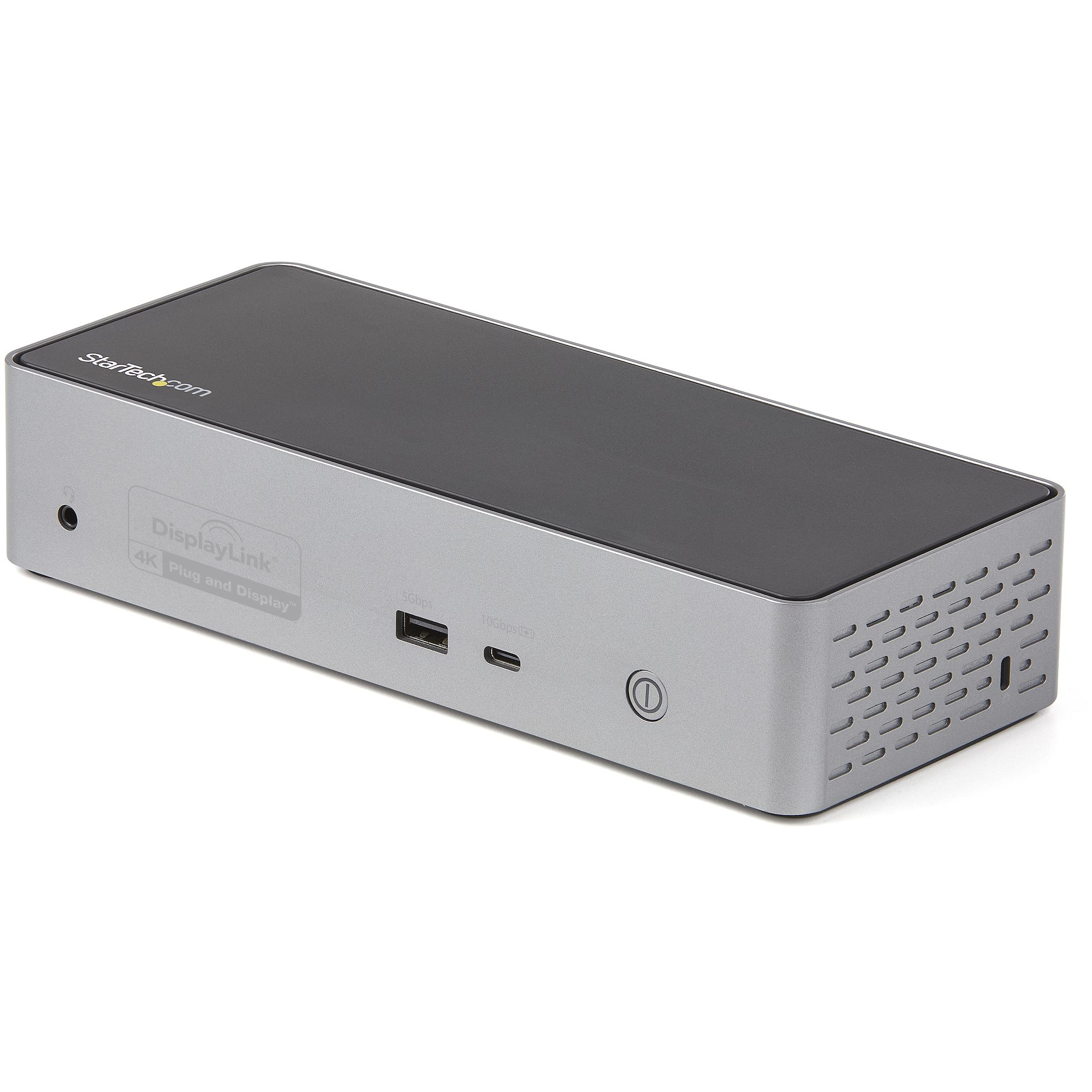

This USB-C Gen 2 10Gbps docking station?turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from quad HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.?
HDMI & DisplayPort for Four Monitor Outputs
This USB-C Gen 2 docking station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops.
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks.
Charge smartphones and other high powered devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Additional Security Features
This USB-C docking station comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable.
Extra Ventilation
USB-C dock features optimized ventilation on both ends and bottom side of dock to provide cooling support to higher temperature thermals that can be generated by high performance video/graphics applications and multiple 4K 60Hz video outputs.
Specs
| Weight & dimensions |
| Width |
90 mm |
| Depth |
215 mm |
| Height |
46 mm |
| Weight |
330 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.0 |
| DisplayPorts quantity |
4 |
| DisplayPort version |
1.2 |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| Power |
| AC input voltage |
100 - 240 V |
| Output voltage |
20 V |
| Output current |
8.5 A |
| Compatible power plug types |
EU, UK |
| Packaging content |
| Cables included |
USB |
| AC adapter included |
Yes |
| Manual |
Yes |
| Other features |
| Chipset |
DisplayLink - DL6910, Realtek - RTS5423, Realtek - RTS5411/RTS5411E, Realtek - RTL8153 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Wake-on-LAN ready |
Yes |
| Performance |
| Product colour |
Black, Grey |
| Card reader integrated |
No |
| Data transfer rate |
10 Gbit/s |
| Maximum digital resolution |
5120 x 2880 pixels |
| Maximum refresh rate |
60 Hz |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| LED indicators |
Yes |
| Software |
| Windows operating systems supported |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported |
ChromeOS |
| Packaging data |
| Package width |
145 mm |
| Package depth |
233 mm |
| Package height |
100 mm |
| Package weight |
360 g |
| Logistics data |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
240 mm |
| Master (outer) case length |
410 mm |
| Master (outer) case height |
160 mm |
| Harmonized System (HS) code |
84733020 |
| Sustainability |
| Sustainability certificates |
CE |
Features
StarTech.com USB C Dock - 4K 60Hz Quad Monitor DisplayPort & HDMI - Universal USB-C Docking Station with 100W Power Delivery - USB Hub with 1x USB Type-C & 3x USB-A, Ethernet, Audio. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Black, Grey, Data transfer rate: 10 Gbit/s, Maximum digital resolution: 5120 x 2880 pixels. AC input voltage: 100 - 240 V, Output voltage: 20 V, Output current: 8.5 A. Windows operating systems supported: Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64,..., Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur,..., Other operating systems supported: ChromeOS. Sustainability certificates: CE
Product Description
This USB-C Gen 2 10Gbps docking station?turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from quad HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.?
HDMI & DisplayPort for Four Monitor Outputs
This USB-C Gen 2 docking station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops.
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks.
Charge smartphones and other high powered devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Additional Security Features
This USB-C docking station comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable.
Extra Ventilation
USB-C dock features optimized ventilation on both ends and bottom side of dock to provide cooling support to higher temperature thermals that can be generated by high performance video/graphics applications and multiple 4K 60Hz video outputs.
