Stock Status: 1x unit in stock

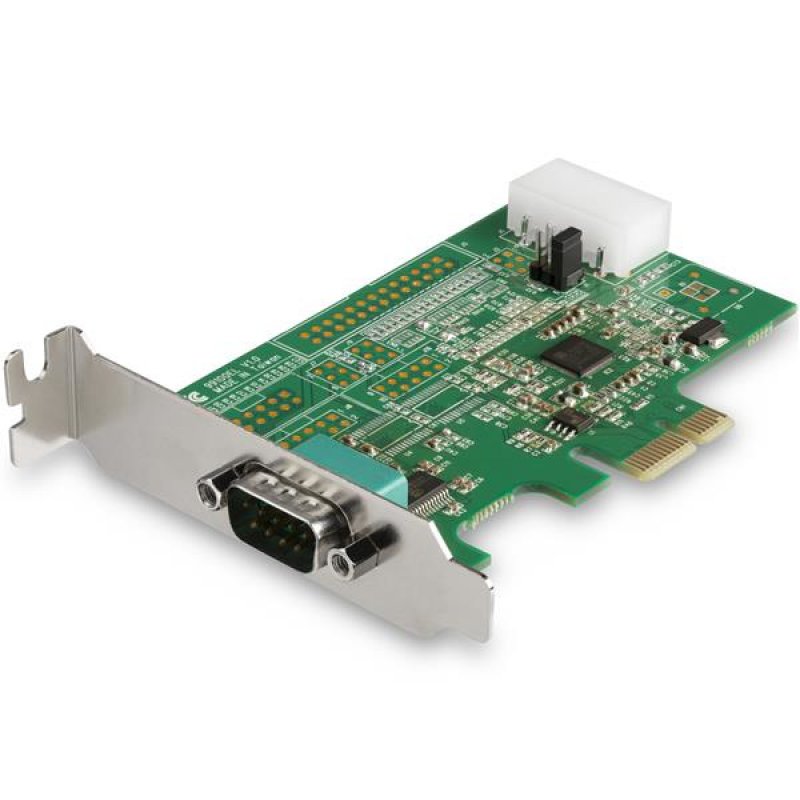

PCI Express to Serial Adapter | 921.4Kbps | Windows and Linux Compatible
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Compatible with industry standard 16950 UART
Supports max baud rate of up-to 921.4Kbps
Provides 5/12V power output on Pin 9 when external power is connected
128-byte depth FIFO per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits
Asix AX99100 chipset
PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Add RS232 DB9 capabilities without purchasing a new server or computer
- PCI Express 1.1 compliant ensuring a reliable performance
- Maximize case form factor integration with a low-profile or full-profile bracket
Specs
| System requirements |
| Linux operating systems supported |
Y |
| Server operating systems supported |
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Win |
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
Serial |
| Expansion card standard |
PCIe 1.1 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
| Width |
67 mm |
| Depth |
98 mm |
| Height |
150 mm |
| Weight |
44 g |
| Design |
| Internal |
Y |
| Product colour |
Green |
| RoHS compliance |
Y |
| Certification |
CE, FCC, Microsoft WHQL |
| Mean time between failures (MTBF) |
277385 h |
| Logistics data |
| Master (outer) case width |
36 cm |
| Master (outer) case length |
68.5 cm |
| Master (outer) case height |
31.5 cm |
| Quantity per master (outer) case |
75 pc(s) |
| Products per master (outer) case |
75 pc(s) |
| Packaging data |
| Quantity |
1 |
| Mounting brackets included |
Y |
| Manual |
Y |
| Package width |
142 mm |
| Package depth |
170 mm |
| Package height |
30 mm |
| Package weight |
112 g |
| Features |
| Chipset |
Asix AX99100 |
| Baud rate |
921.4 Kbit/s |
| FIFO (First In, First Out) |
256 B |
| Data bits |
5,6,7,8,9 |
| Stop bits |
1,1.5,2 |
| Flow control support |
Y |
| Parity bit |
Even, Mark, N, Odd, Space |
| Flow Control type |
N, RTS/CTS, XON/XOFF |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 277385 h, Certification: CE, FCC, Microsoft WHQL. Chipset: Asix AX99100, Baud rate: 921.4 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Width: 67 mm, Depth: 98 mm, Height: 150 mm
Product Description
PCI Express to Serial Adapter | 921.4Kbps | Windows and Linux Compatible
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Compatible with industry standard 16950 UART
Supports max baud rate of up-to 921.4Kbps
Provides 5/12V power output on Pin 9 when external power is connected
128-byte depth FIFO per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits
Asix AX99100 chipset
PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Add RS232 DB9 capabilities without purchasing a new server or computer
- PCI Express 1.1 compliant ensuring a reliable performance
- Maximize case form factor integration with a low-profile or full-profile bracket
