Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure

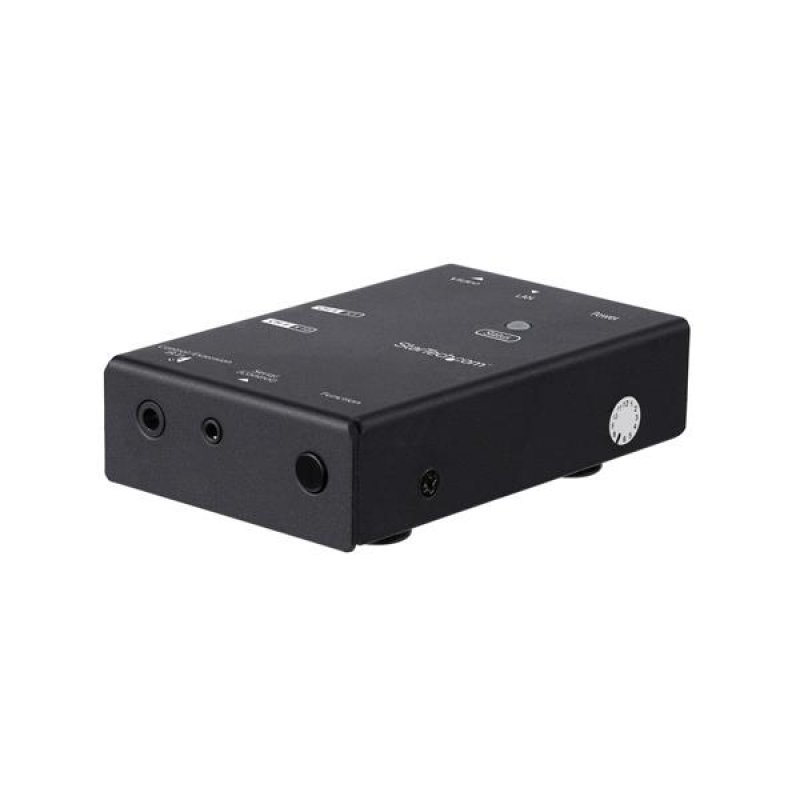

The HDMI® over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations.
Customize your video distribution with a scalable solution
With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability, you can combine up to 99 different kits (ST12MHDLNHK) to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.
Get brilliant video at HD 1080p
The receiver maintains your HD video signal, supporting resolutions up to 1080p. Maintaining your HD quality over IP makes it easy to distribute dynamic digital signage throughout your site to attract and engage customers.
Save your network bandwidth with video compression
Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP solution uses video compression to distribute high-quality HDMI over your local area network, with minimal bandwidth requirements. Extending your HDMI using compression saves your network resources, avoiding the hassle of a separate video network.
The ST12MHDLNHR is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specs
| Technical details |
| Sustainability certificates |
RoHS |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Ethernet LAN |
Y |
| RJ-45 input ports |
1 |
| Number of HDMI outputs |
1 |
| USB ports quantity |
1 |
| USB connector type |
Mini-USB B |
| Audio output |
1 |
| Weight & dimensions |
| Width |
97 mm |
| Depth |
130 mm |
| Height |
28 mm |
| Weight |
448 g |
| Packaging data |
| Package width |
143 mm |
| Package depth |
168 mm |
| Package height |
63 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Power |
| AC input voltage |
100 - 240 V |
| Operating voltage |
5 V |
| Input current |
0.3 A |
| Output current |
1 A |
| External power adapter |
Y |
| Packaging content |
| AC adapter included |
Y |
| Cables included |
LAN (RJ-45), Serial, USB |
| Included power plug types |
ANZ,EU,NA,UK |
| Manual |
Y |
| IR receiver included |
Y |
| Mounting kit |
Y |
| Features |
| Type |
AV receiver |
| Maximum resolution |
1920 x 1200 pixels |
| Cable types supported |
Cat5e |
| Maximum transfer distance |
15 m |
| Maximum refresh rate |
60 Hz |
| Audio output channels |
2.0 channels |
| LED indicators |
Status |
| Supported video modes |
1080p |
| Cable length |
15.2 m |
| Material |
Aluminium |
| Rack mounting |
Y |
| Daisy chain |
Y |
| Rubber feet |
Y |
| Product colour |
Black |
| Certification |
CE, REACH, FCC, TAA |
Features
StarTech.com ST12MHDLNHR. Type: AV receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Connectivity technology: Wired, USB connector type: Mini-USB B. AC input voltage: 100 - 240 V, Operating voltage: 5 V, Input current: 0.3 A. Width: 97 mm, Depth: 130 mm, Height: 28 mm. Package width: 143 mm, Package depth: 168 mm, Package height: 63 mm
Product Description
Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure
The HDMI® over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations.
Customize your video distribution with a scalable solution
With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability, you can combine up to 99 different kits (ST12MHDLNHK) to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.
Get brilliant video at HD 1080p
The receiver maintains your HD video signal, supporting resolutions up to 1080p. Maintaining your HD quality over IP makes it easy to distribute dynamic digital signage throughout your site to attract and engage customers.
Save your network bandwidth with video compression
Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP solution uses video compression to distribute high-quality HDMI over your local area network, with minimal bandwidth requirements. Extending your HDMI using compression saves your network resources, avoiding the hassle of a separate video network.
The ST12MHDLNHR is backed by a 2-year StarTech.com warranty and free lifetime technical support.
