Stock Status: 1x unit in stock

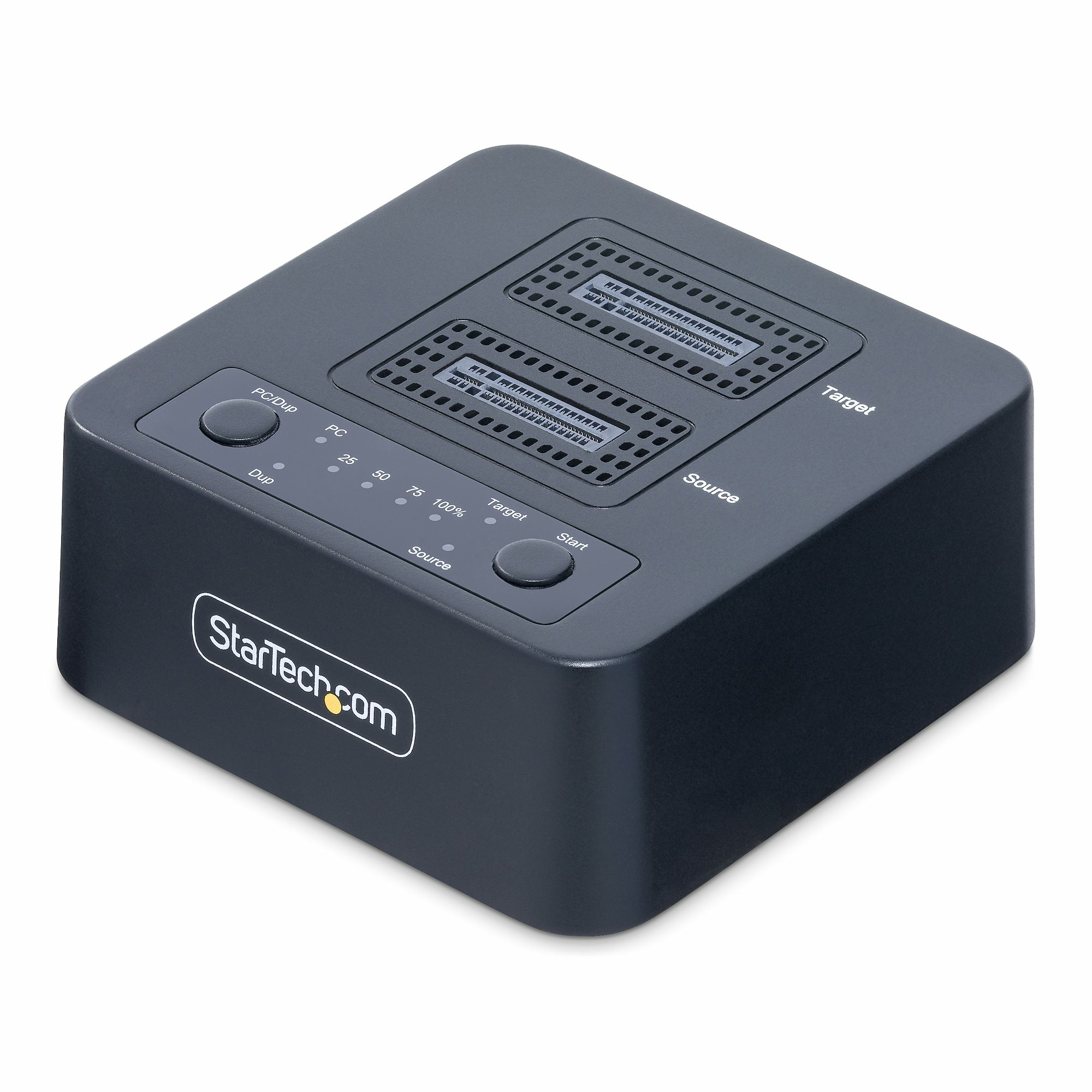

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USBThis M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.High-Speed M.2 NVMe DuplicationClone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.NVMe Drive Access over USB 3.2 Gen2x2The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.Compact and User-FriendlyThe device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.The StarTech.com Advantage
Specs
| Technical details |
| Product type |
HDD/SSD duplicator |
| Number of simultaneous copies |
1 copies |
| Interface |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Duplicator operating modes |
Copy |
| USB connector type |
USB Type-C |
| Product colour |
Black |
| Housing material |
Plastic |
| Transfer rate |
90 GB/min |
| Hot-swap drive bays |
No |
| Plug and Play |
Yes |
| Chipset |
JMS586U |
| Number of fans |
1 fan(s) |
| Fan diameter |
6 cm |
| LED indicators |
Yes |
| Sustainability certificates |
RoHS |
| Compliance certificates |
RoHS |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Dimensions (WxDxH) |
77 x 77 x 44 mm |
| Weight |
129 g |
| Power |
| Power consumption (typical) |
0.1 W |
| AC input voltage |
100 - 240 V |
| Input current |
0.6 A |
| Output voltage |
12 V |
| Output current |
2 A |
| Power plug type |
Type M |
| Included power plug types |
ANZ, EU, NA, UK |
| Hard drive |
| SSD support |
Yes |
| SSD interface |
M.2 |
| Operational conditions |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
5 - 55 °C |
| Storage temperature (T-T) |
-20 - 55 °C |
| Packaging data |
| Package weight |
140 g |
| Package height |
95 mm |
| Package width |
160 mm |
| Cables included |
USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| AC adapter included |
Yes |
| Manual |
Yes |
| Package depth |
90 mm |
| Logistics data |
| Master (outer) case length |
338 mm |
| Master (outer) case width |
500 mm |
| Master (outer) case height |
220 mm |
| Products per master (outer) case |
20 pc(s) |
Features
StarTech.com 1:1 M.2 NVMe Drive Duplicator, Standalone M.2 SSD Cloner/Copier up to 90GBpm, USB 3.2 20Gbps M.2 Dual-Bay Drive Dock, USB-C/A Cables Included. SSD interface: M.2. Power consumption (typical): 0.1 W, AC input voltage: 100 - 240 V, Input current: 0.6 A. Dimensions (WxDxH): 77 x 77 x 44 mm, Weight: 129 g. Package weight: 140 g, Package height: 95 mm, Package width: 160 mm. Master (outer) case length: 338 mm, Master (outer) case width: 500 mm, Master (outer) case height: 220 mm
Product Description
Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USBThis M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.High-Speed M.2 NVMe DuplicationClone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.NVMe Drive Access over USB 3.2 Gen2x2The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.Compact and User-FriendlyThe device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.The StarTech.com Advantage
