Stock Status: 1x unit in stock
Control your server or KVM switch from a centralized rack console

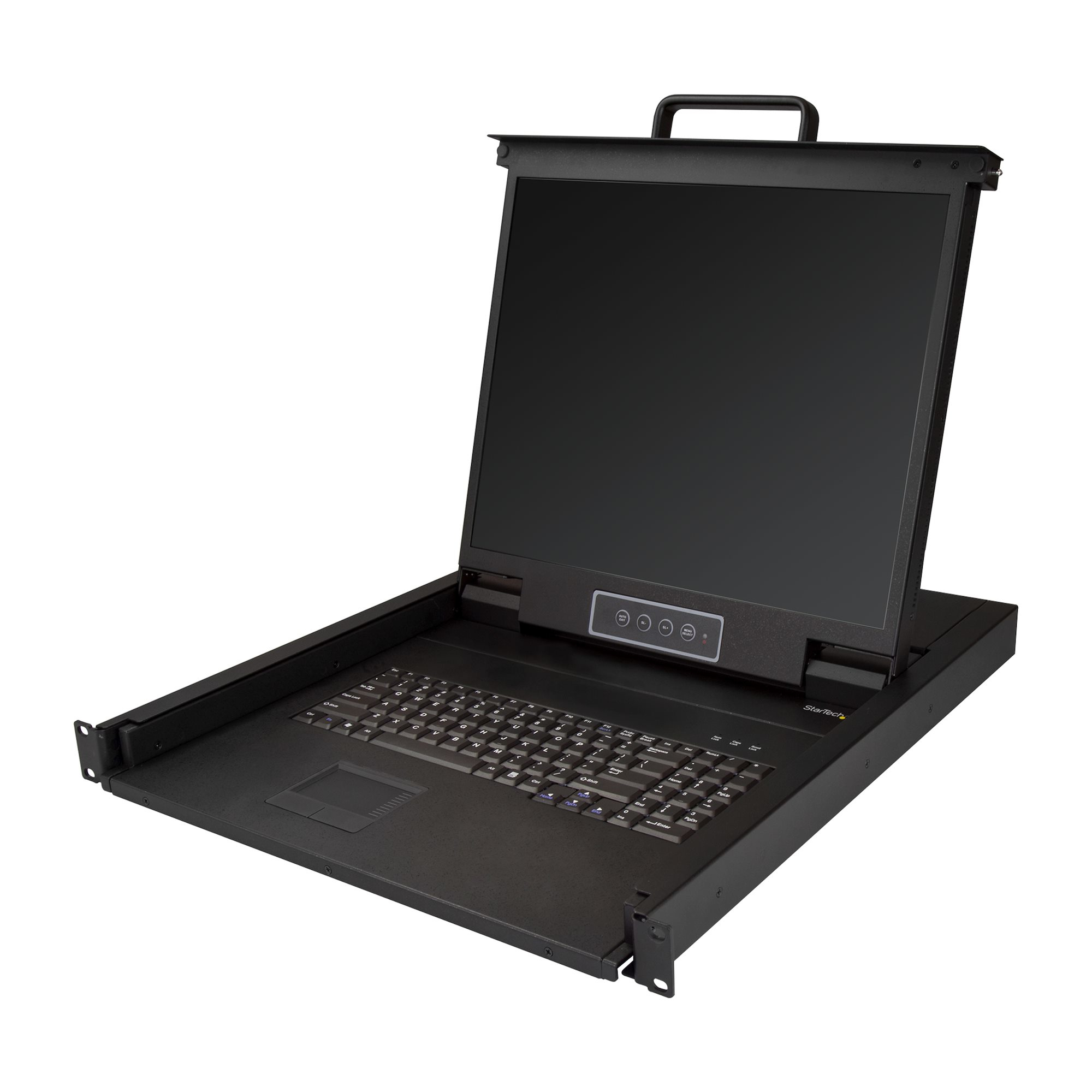

This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Certificates |
| Certification |
CE, FCC |
| Weight & dimensions |
| Width |
483 mm |
| Height |
430 mm |
| Depth |
533 mm |
| Weight |
12.2 kg |
| Mounting depth (min) |
50 cm |
| Mounting depth (max) |
78 cm |
| Technical details |
| Material |
Steel |
| Mean time between failures (MTBF) |
50000 h |
| Product colour |
Black |
| Operating relative humidity (H-H) |
10 - 80% |
| Daisy chain |
Yes |
| Key lock |
No |
| LED indicators |
Yes |
| Compliance certificates |
RoHS |
| Rack capacity |
1U |
| Audio support |
No |
| IP control |
No |
| Display |
| Display diagonal |
48.3 cm (19") |
| Display resolution |
1280 x 1024 pixels |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
176° |
| Viewing angle, vertical |
170° |
| On Screen Display (OSD) |
Yes |
| Pixel pitch |
0.264 x 0.264 mm |
| Aspect ratio |
4:3 |
| Display type |
LCD |
| Display number of colours |
16.78 million colours |
| Power |
| Power consumption (typical) |
17 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Keyboard |
| Built-in touchpad |
Yes |
| Hot keys |
Yes |
| Ports & interfaces |
| Video port type |
VGA |
| Packaging data |
| Package weight |
16 kg |
| Package width |
615 mm |
| Package depth |
765 mm |
| Package height |
190 mm |
| Packaging content |
| Cables included |
AC, KVM |
| Screws included |
Yes |
| Mounting brackets included |
Yes |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Quick installation guide |
Yes |
| Logistics data |
| Master (outer) case width |
615 mm |
| Master (outer) case length |
765 mm |
| Master (outer) case height |
190 mm |
| Products per master (outer) case |
1 pc(s) |
Features
StarTech.com Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display brightness: 250 cd/m². Video port type: VGA. Certification: CE, FCC. Power consumption (typical): 17 W. Width: 483 mm, Height: 430 mm, Depth: 533 mm
Product Description
Control your server or KVM switch from a centralized rack console
This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
