Stock Status: 1x unit in stock
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

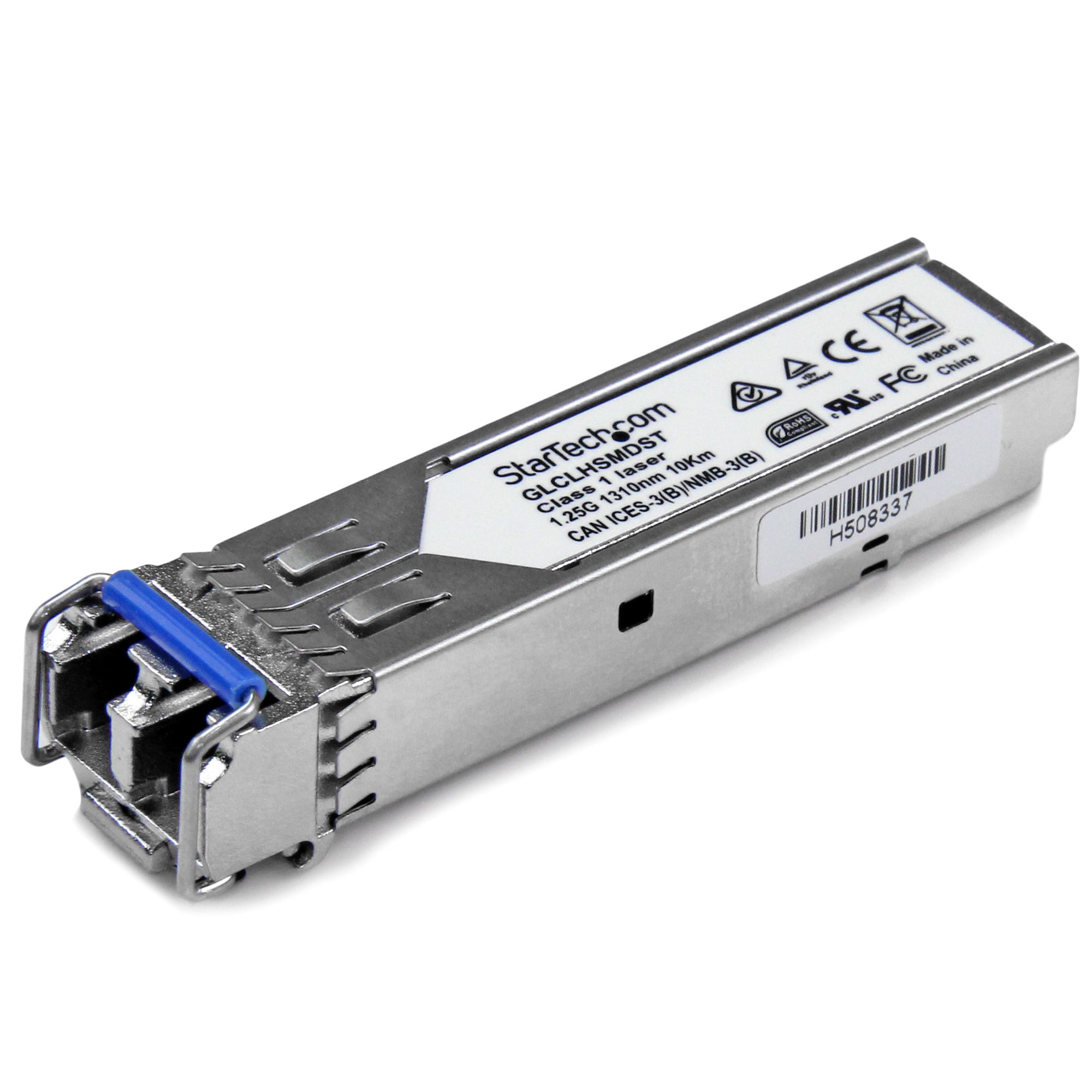

The GLCLHSMDST is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
• MTBF: 200,000 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
12 mm |
| Depth |
58 mm |
| Height |
8 mm |
| Weight |
18 g |
| Power |
| Power consumption (typical) |
1 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Single-mode fiber (SMF) supported |
Yes |
| Multi-mode fiber (MMF) supported |
Yes |
| Fiber optic connector |
LC |
| SFP transceiver standard |
LH, LX |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Networking standards |
IEEE 802.3z |
| Duplex system |
Full |
| Auto MDI/MDI-X |
Yes |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Fiber ports quantity |
1 |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
200000 h |
| Brand compatibility |
Cisco |
| Compatible products |
GLC-LH-SMD |
| Logistics data |
| Master (outer) case width |
259 mm |
| Master (outer) case length |
307 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case height |
201 mm |
| Products per master (outer) case |
36 pc(s) |
| Packaging data |
| Package width |
92 mm |
| Package depth |
118 mm |
| Package height |
32 mm |
| Package weight |
95 g |
| Certification |
| Compliance certificates |
CE, RoHS |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
StarTech.com Cisco GLC-LH-SMD Compatible SFP Transceiver Module - 1000BASE-LX/LH~Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LX/LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM Cisco Firepower, ASR920, IE2000. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 200000 h. Power consumption (typical): 1 W. Compliance certificates: CE, RoHS. Width: 12 mm, Depth: 58 mm, Height: 8 mm
Product Description
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The GLCLHSMDST is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
• MTBF: 200,000 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
