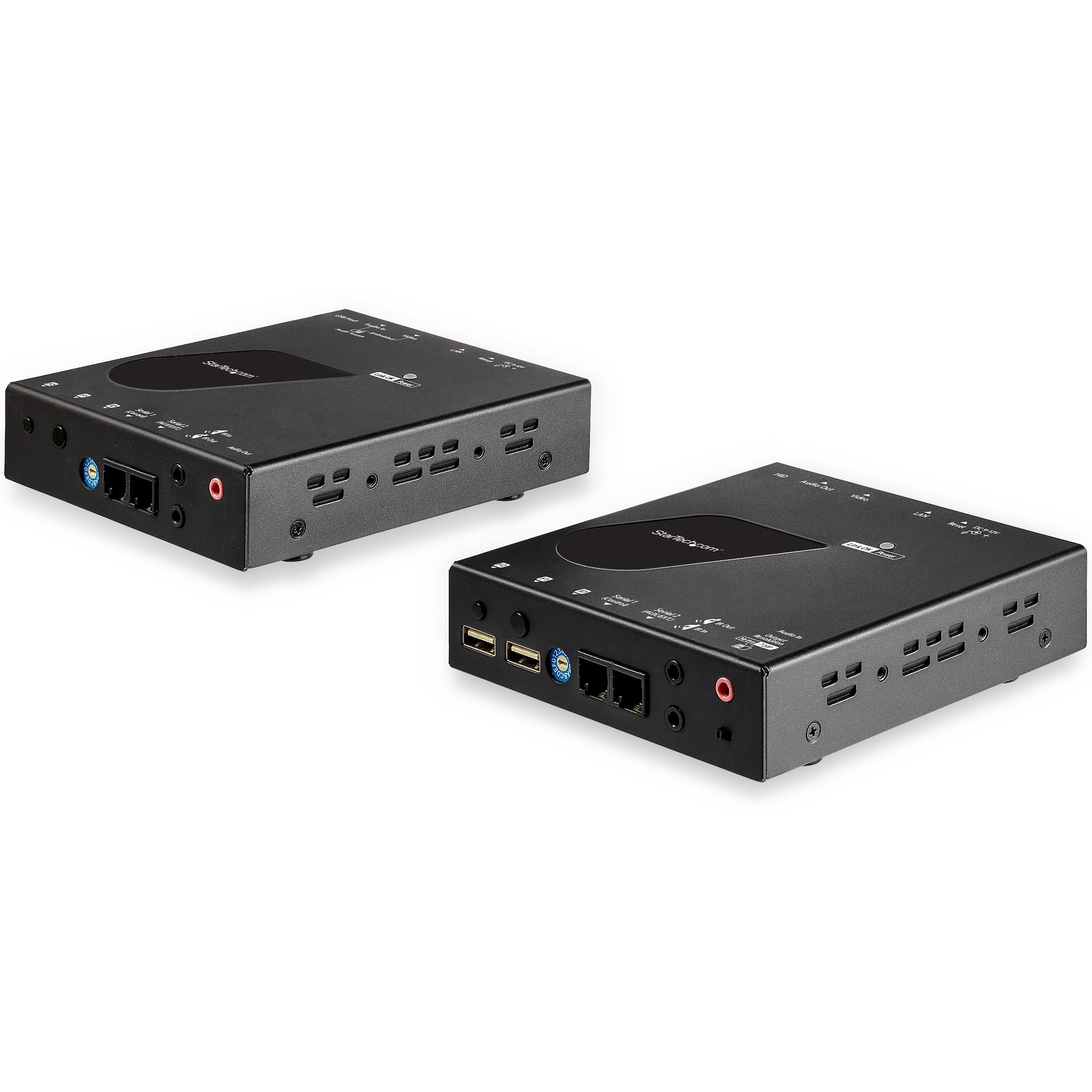

KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-ThroughThis HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.Supports UHD 4K 30HzThe HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.Hassle-Free InstallationWith a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.Versatile Configuration OptionsThe extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5 or CAT6 cabling up to 330 feet (100 meters).SV565HDIP is backed by a 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Specs
| Ports & interfaces |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| HDMI ports quantity |
2 |
| USB hub |
Yes |
| USB 2.0 Type-A hub ports quantity |
2 |
| Audio connections |
Yes |
| Headphone outputs |
8 |
| Number of microphone inputs |
2 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
117 mm |
| Depth |
130 mm |
| Height |
28 mm |
| Weight |
610 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Networking |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
| Input voltage |
100 - 240 V |
| Input current |
0.6 A |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power consumption (typical) |
18 W |
| External power adapter |
Yes |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, JP, UK |
| Display |
| Built-in display |
No |
| On Screen Display (OSD) |
Yes |
| Packaging content |
| Cables included |
HDMI, LAN (RJ-45), Phone (RJ-11), USB |
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Rubber feet |
Yes |
| Other features |
| IP control |
No |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Yes |
| Hot keys |
No |
| Mean time between failures (MTBF) |
60000 h |
| Certification |
CE, FCC, TAA, REACH |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Video bandwidth |
30 Hz |
| Daisy chain |
No |
| Maximum operating distance |
100 m |
| Chipset |
ASPEED - AST1520 |
| Audio channels |
7.1 |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
385 mm |
| Master (outer) case length |
495 mm |
| Master (outer) case height |
265 mm |
| Products per master (outer) case |
6 pc(s) |
| Packaging data |
| Package width |
365 mm |
| Package depth |
195 mm |
| Package height |
235 mm |
| Sustainability |
| Sustainability certificates |
RoHS |
| Compliance certificates |
RoHS |
Features
StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 60000 h. Input voltage: 100 - 240 V, Input current: 0.6 A, Output voltage: 12 V. Sustainability certificates: RoHS, Compliance certificates: RoHS
Product Description
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-ThroughThis HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.Supports UHD 4K 30HzThe HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.Hassle-Free InstallationWith a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.Versatile Configuration OptionsThe extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5 or CAT6 cabling up to 330 feet (100 meters).SV565HDIP is backed by a 2-year warranty and free lifetime technical support.The StarTech.com Advantage
