Stock Status: 1x unit in stock

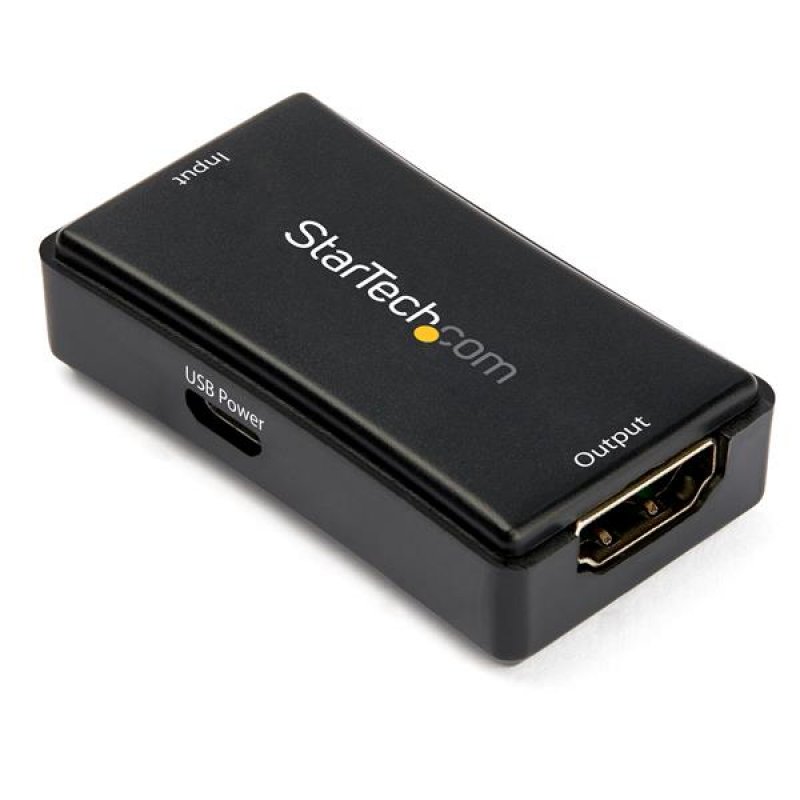

HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.Cable lengthfrom sourceCable lengthto displayTotal cable lengthMaximumresolution82 ft. (25 m)82 ft. (25 m)164 ft. (50 m)1080p (60 Hz) - 1920x108065 ft. (20 m)65 ft. (20 m)130 ft. (40 m)4K (30 Hz) - 3840x216022.5 ft. (7 m)22.5 ft. (7 m)45 ft. (14 m)4K (60 Hz) - 3840x2160Maintains Ultra HD 4K VideoWhen you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.Hassle-Free InstallationWith its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.Supports Several DistancesSupport for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.The StarTech.com Advantage
Specs
| Technical details |
| Sustainability certificates |
RoHS |
| Ports & interfaces |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| HDMI version |
2.0 |
| USB ports quantity |
1 |
| USB connector type |
Micro-USB B |
| Weight & dimensions |
| Width |
52 mm |
| Depth |
28.5 mm |
| Height |
13.7 mm |
| Weight |
15 g |
| Packaging data |
| Package width |
140 mm |
| Package depth |
170 mm |
| Package height |
30 mm |
| Package weight |
113 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Power |
| Power consumption (typical) |
2.5 W |
| USB powered |
Yes |
| Packaging content |
| Cables included |
USB |
| Quick start guide |
Yes |
| Features |
| Type |
AV repeater |
| Maximum resolution |
3840 x 2160 pixels |
| Maximum transfer distance |
14 m |
| Maximum refresh rate |
60 Hz |
| Audio output channels |
7.1 channels |
| Bandwidth |
18 Gbit/s |
| HDCP |
Yes |
| Material |
Plastic |
| Rack mounting |
No |
| Daisy chain |
No |
| HDCP version |
2.2 |
| Product colour |
Black |
| Certification |
REACH, CE, FCC |
| Logistics data |
| Master (outer) case width |
530 mm |
| Master (outer) case length |
550 mm |
| Master (outer) case height |
340 mm |
| Products per master (outer) case |
100 pc(s) |
Features
StarTech.com 45 ft. (14 m) HDMI Signal Booster - 4K 60Hz. Type: AV repeater, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 14 m. USB connector type: Micro-USB B. Power consumption (typical): 2.5 W. Width: 52 mm, Depth: 28.5 mm, Height: 13.7 mm. Package width: 140 mm, Package depth: 170 mm, Package height: 30 mm
Product Description
HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.Cable lengthfrom sourceCable lengthto displayTotal cable lengthMaximumresolution82 ft. (25 m)82 ft. (25 m)164 ft. (50 m)1080p (60 Hz) - 1920x108065 ft. (20 m)65 ft. (20 m)130 ft. (40 m)4K (30 Hz) - 3840x216022.5 ft. (7 m)22.5 ft. (7 m)45 ft. (14 m)4K (60 Hz) - 3840x2160Maintains Ultra HD 4K VideoWhen you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.Hassle-Free InstallationWith its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.Supports Several DistancesSupport for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.The StarTech.com Advantage
