Stock Status: 1x unit in stock
PCI Express to Serial Adapter | 921.6Kbps | Windows and Linux Compatible

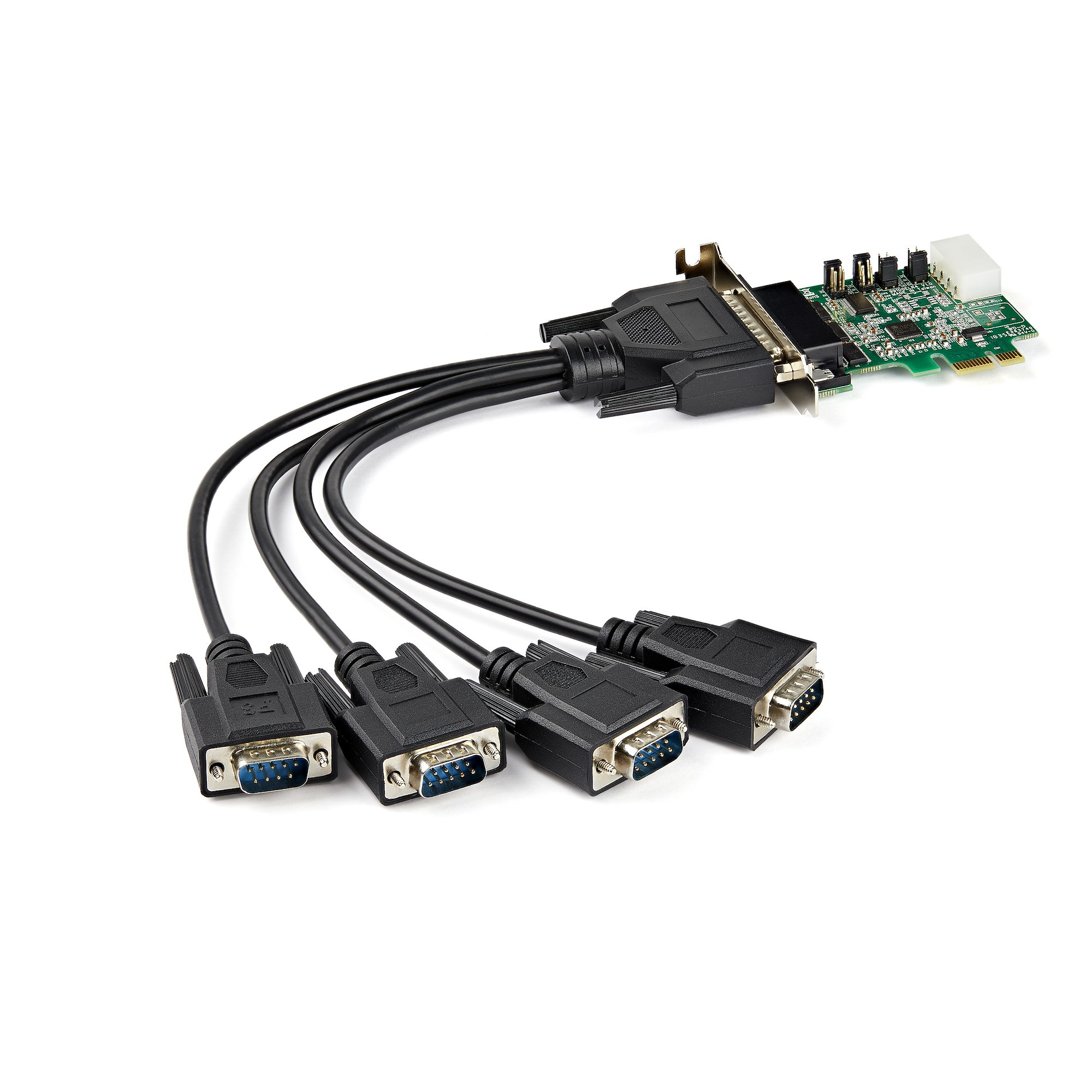

This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with low-profile brackets and includes optional full-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX4S952LP.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Compatible with industry-standard 16950 UART
Supports max baud rate of up-to 921.6Kbps
Provides 5/12V power output on Pin 9 when external power is connected
256-byte depth FIFO cache per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits (one per port)
Asix AX99100 chipset
PCI Express 1.1 compliant
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEX4S03LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Install in home or office workstations
- Connect to automated self-service kiosks or ATM machines
- Connect in retail POS applications
- Connect serial printers and other legacy devices to modern computers
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, W |
| Linux operating systems supported |
Y |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
Serial |
| Expansion card standard |
PCIe 1.1 |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 80 °C |
| Storage temperature (T-T) |
-20 - 100 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Weight & dimensions |
| Width |
75 mm |
| Depth |
63 mm |
| Height |
18 mm |
| Weight |
264 g |
| Design |
| Internal |
Y |
| Product colour |
Green |
| Mean time between failures (MTBF) |
214358 h |
| Certification |
CE, FCC |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Products per master (outer) case |
16 pc(s) |
| Master (outer) case width |
480 mm |
| Master (outer) case length |
350 mm |
| Master (outer) case height |
235 mm |
| Packaging data |
| Quantity |
1 |
| Cables included |
Serial |
| Mounting brackets included |
Y |
| Quick installation guide |
Y |
| Package width |
213 mm |
| Package depth |
149 mm |
| Package height |
51 mm |
| Package weight |
370 g |
| Features |
| Chipset |
Asix AX99100 |
| Baud rate |
921.6 Kbit/s |
| FIFO (First In, First Out) |
256 B |
| Data bits |
5, 6, 7, 8, 9 |
| Stop bits |
1, 1.5, 2 |
| Parity bit |
Even, Mark, N, Odd, Space |
| Flow Control type |
N, RTS/CTS, XON/XOFF |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows/Linux. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 214358 h, Certification: CE, FCC. Chipset: Asix AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 75 mm, Depth: 63 mm, Height: 18 mm
Product Description
PCI Express to Serial Adapter | 921.6Kbps | Windows and Linux Compatible
This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with low-profile brackets and includes optional full-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX4S952LP.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
Compatible with industry-standard 16950 UART
Supports max baud rate of up-to 921.6Kbps
Provides 5/12V power output on Pin 9 when external power is connected
256-byte depth FIFO cache per transmitter and receiver
Supports 9, 8, 7, 6, 5 data bits (one per port)
Asix AX99100 chipset
PCI Express 1.1 compliant
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEX4S03LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Install in home or office workstations
- Connect to automated self-service kiosks or ATM machines
- Connect in retail POS applications
- Connect serial printers and other legacy devices to modern computers
