Stock Status: 1x unit in stock
KVM with USB | Triple Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog AudioThe StarTech.com Advantage
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity |
9 |
| DisplayPort version |
1.2 |
| Console USB ports quantity |
4 |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
160 mm |
| Depth |
100 mm |
| Height |
98 mm |
| Weight |
850 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
1 A |
| Output voltage |
12 V |
| Output current |
3 A |
| Power consumption (typical) |
36 W |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, JP, UK, US |
| Display |
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Packaging content |
| Quick installation guide |
Yes |
| Rubber feet |
Yes |
| Other features |
| IP control |
No |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Mean time between failures (MTBF) |
156000 h |
| Certification |
CE, RoHS, FCC |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
3,8,15,30 s |
| HDCP |
Yes |
| Daisy chain |
No |
| Audio channels |
5.1 |
| Number of displays supported |
3 |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
397 mm |
| Master (outer) case length |
317 mm |
| Master (outer) case height |
280 mm |
| Products per master (outer) case |
6 pc(s) |
| Packaging data |
| Package width |
238 mm |
| Package depth |
189 mm |
| Package height |
91 mm |
Features

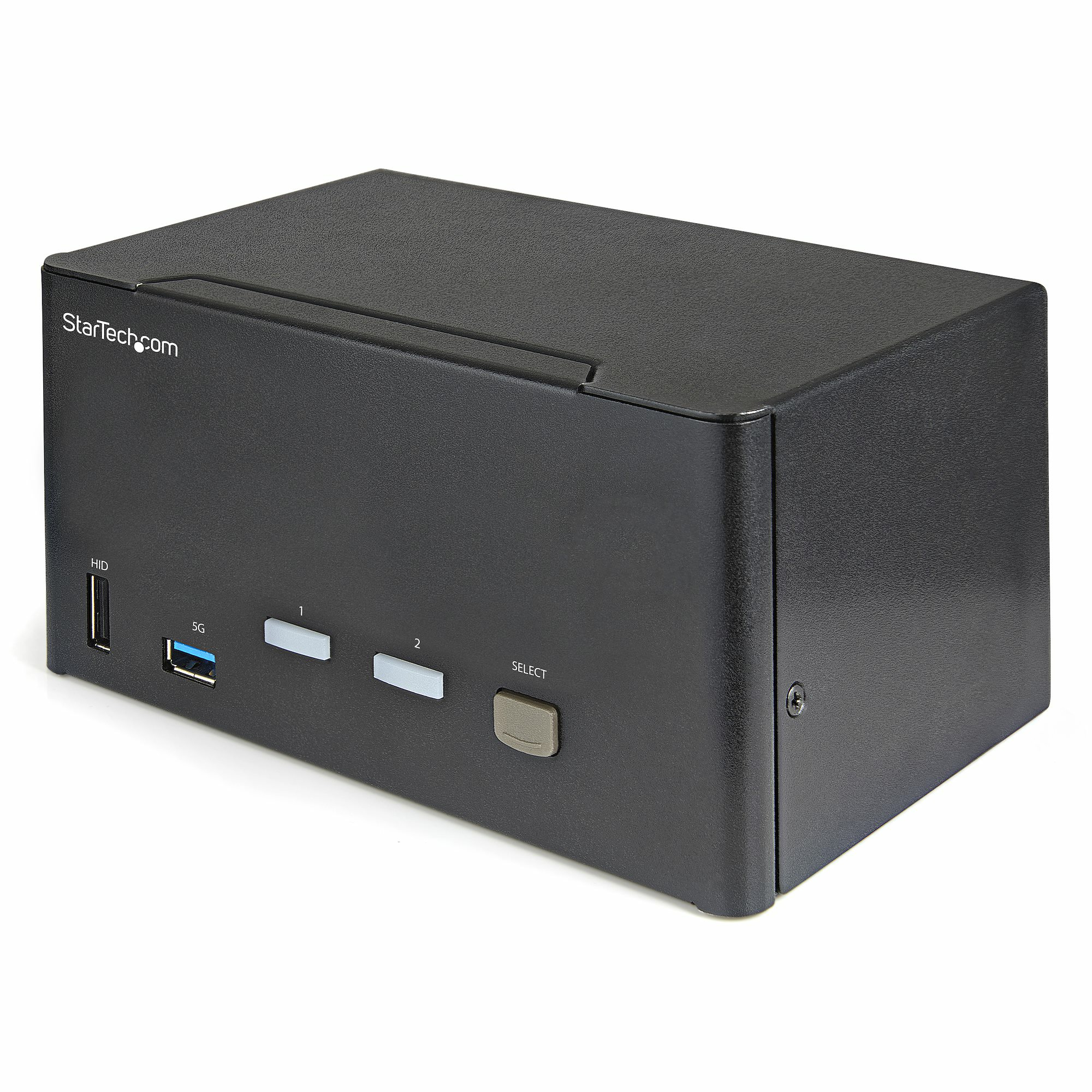

StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 156000 h. AC input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 12 V. Width: 160 mm, Depth: 100 mm, Height: 98 mm
Product Description
KVM with USB | Triple Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog AudioThe StarTech.com Advantage
