Stock Status: 1x unit in stock

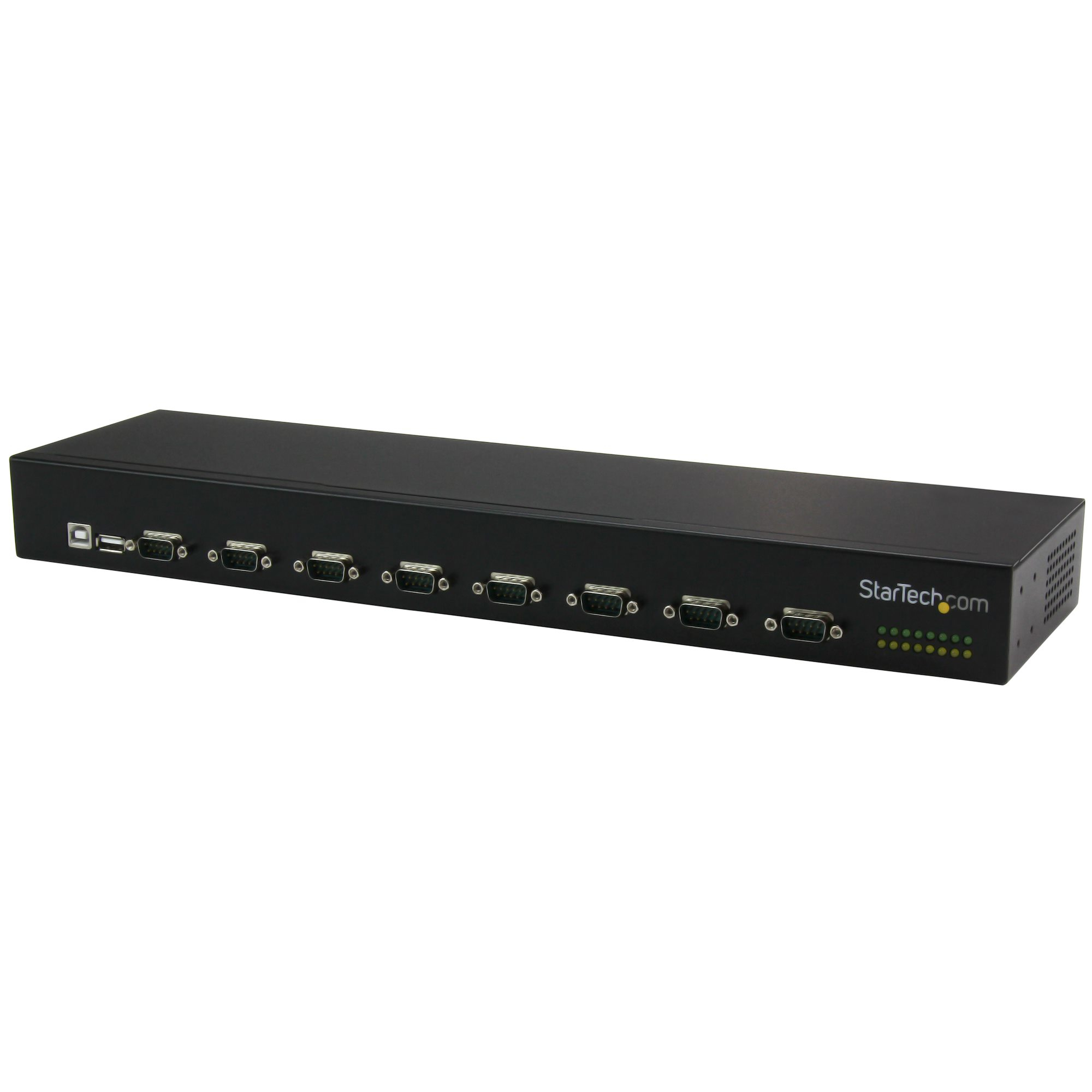

Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution
This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Meets the demands of industrial environments
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Other operating systems supported |
Windows XP Embedded |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-65 - 150 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Power |
| Power consumption (max) |
36 W |
| Input voltage |
100 - 240 V |
| Input current |
1.5 A |
| Output voltage |
12 V |
| Output current |
3 A |
| Power plug type |
Type B |
| Weight & dimensions |
| Width |
120 mm |
| Depth |
430 mm |
| Height |
45 mm |
| Weight |
1.36 kg |
| Ports & interfaces |
| Ports quantity |
8 |
| Host interface |
USB 2.0 |
| Hub interfaces |
Serial |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
8 |
| Terminal block port |
Yes |
| DC-in jack |
Yes |
| Other features |
| Chipset |
FTDI - FT4232 |
| Packaging content |
| Included power plug types |
AU, EU, NA, UK |
| Cables included |
USB |
| Terminal block included |
Yes |
| Quick installation guide |
Yes |
| DIN rail kit included |
Yes |
| Drivers included |
Yes |
| Performance |
| Data bits |
7, 8 |
| Stop bits |
1, 2 |
| Parity bit |
Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) |
256 B |
| Baud rate |
921.6 Kbit/s |
| Mean time between failures (MTBF) |
67114 h |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Logistics data |
| Master (outer) case width |
472 mm |
| Master (outer) case length |
344 mm |
| Master (outer) case height |
236 mm |
| Products per master (outer) case |
5 pc(s) |
| Harmonized System (HS) code |
84719000 |
| Packaging data |
| Package width |
449 mm |
| Package depth |
217 mm |
| Package height |
64 mm |
| Package weight |
2.1 kg |
| Features |
| Product colour |
Black |
| Housing material |
Aluminium |
| LED indicators |
Yes |
Features
StarTech.com 8-Port USB-to-Serial Adapter Hub. Host interface: USB 2.0, Hub interfaces: Serial. Product colour: Black, Housing material: Aluminium. Power consumption (max): 36 W, Input voltage: 100 - 240 V, Input current: 1.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2. Width: 120 mm, Depth: 430 mm, Height: 45 mm
Product Description
Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution
This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Meets the demands of industrial environments
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
