Stock Status: 1x unit in stock

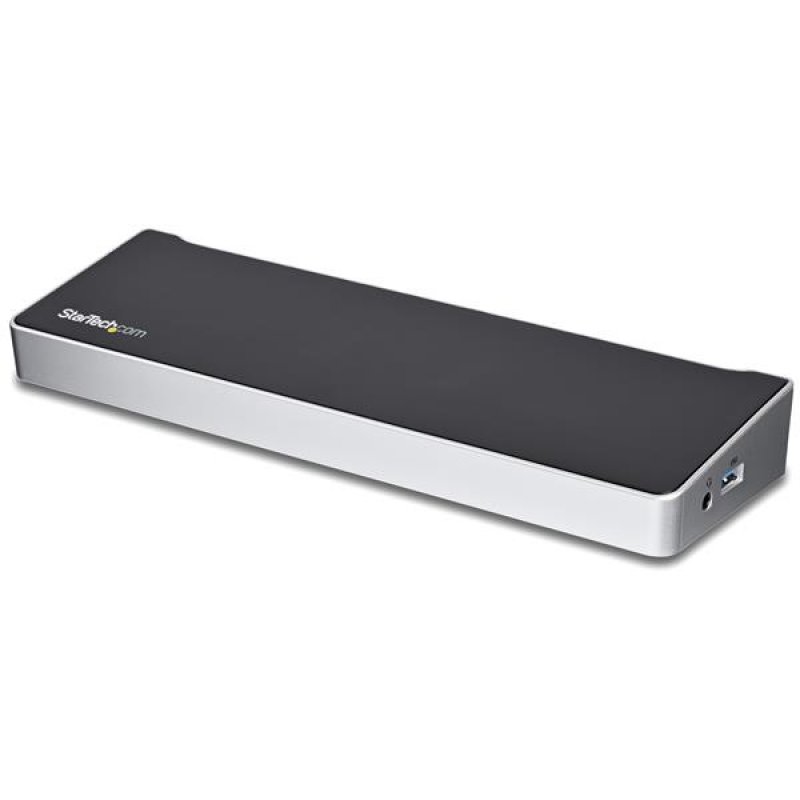

Laptop Docking Station | Mac, Windows & Chrome OS | 2x 4K 60Hz DP + HDMI
This triple-4K dock for Mac, Windows and Chrome USB-C laptops?helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.
You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.
Enhance Productivity
The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:
2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz
For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.
100W Power Delivery
Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.
Powerful Connections
This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.
The TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Dock your USB-C equipped laptop with three 4K monitors: 2x DisplayPort (DisplayLink) and 1x HDMI (DP Alt Mode)
- Connect your USB devices with 5x USB 3.0 ports - 1x USB-C and 4x USB-A (incl. 1x Fast-Charge)
- Power and charge your high-performance laptop with 100W Power Delivery
Specs
| Weight & dimensions |
| Width |
82 mm |
| Depth |
270 mm |
| Height |
34 mm |
| Weight |
382 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| DisplayPorts quantity |
2 |
| Combo headphone/mic port |
Y |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Y |
| USB Power Delivery |
Y |
| USB Power Delivery up to |
100 W |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
2.5 A |
| Power supply |
100 W |
| Output voltage |
20 V |
| Output current |
7.5 A |
| Power plug type |
Type N |
| Compatible power plug types |
EU,UK |
| Packaging content |
| Cables included |
USB Type-C |
| AC adapter included |
Y |
| Manual |
Y |
| Other features |
| Chipset |
DisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 70% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| Performance |
| Product colour |
Black, Silver |
| Card reader integrated |
N |
| Data transfer rate |
5 Gbit/s |
| Maximum digital resolution |
5120 x 2880 pixels |
| Cable lock slot |
Y |
| On/off switch |
Y |
| UASP support |
Y |
| Housing material |
Plastic |
| RoHS compliance |
Y |
| Certification |
CE, FCC, TAA, REACH |
| Rubber feet |
Y |
| Technical details |
| Sustainability certificates |
RoHS |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
| Mac compatibility |
Y |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.9 Mavericks |
| Other operating systems supported |
Chrome |
| Packaging data |
| Package width |
160 mm |
| Package depth |
320 mm |
| Package height |
80 mm |
| Package weight |
1.7 kg |
| Logistics data |
| Quantity per master (outer) case |
8 pc(s) |
| Master (outer) case width |
36.5 cm |
| Master (outer) case length |
37 cm |
| Master (outer) case height |
37 cm |
| Products per master (outer) case |
8 pc(s) |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com USB-C Dock - 4K Triple Monitor Laptop Docking Station with Dual DisplayPort & HDMI - 100W Power Delivery - USB-C, 4x USB-A Hub - USB 3.1 Gen 1 Type-C Dock - Windows & Mac. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 5120 x 2880 pixels. AC input voltage: 100 - 240 V, Input current: 2.5 A, Power supply: 100 W. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac..., Other operating systems supported: Chrome
Product Description
Laptop Docking Station | Mac, Windows & Chrome OS | 2x 4K 60Hz DP + HDMI
This triple-4K dock for Mac, Windows and Chrome USB-C laptops?helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.
You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.
Enhance Productivity
The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:
2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz
For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.
100W Power Delivery
Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.
Powerful Connections
This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.
The TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Dock your USB-C equipped laptop with three 4K monitors: 2x DisplayPort (DisplayLink) and 1x HDMI (DP Alt Mode)
- Connect your USB devices with 5x USB 3.0 ports - 1x USB-C and 4x USB-A (incl. 1x Fast-Charge)
- Power and charge your high-performance laptop with 100W Power Delivery
