Stock Status: 1x unit in stock

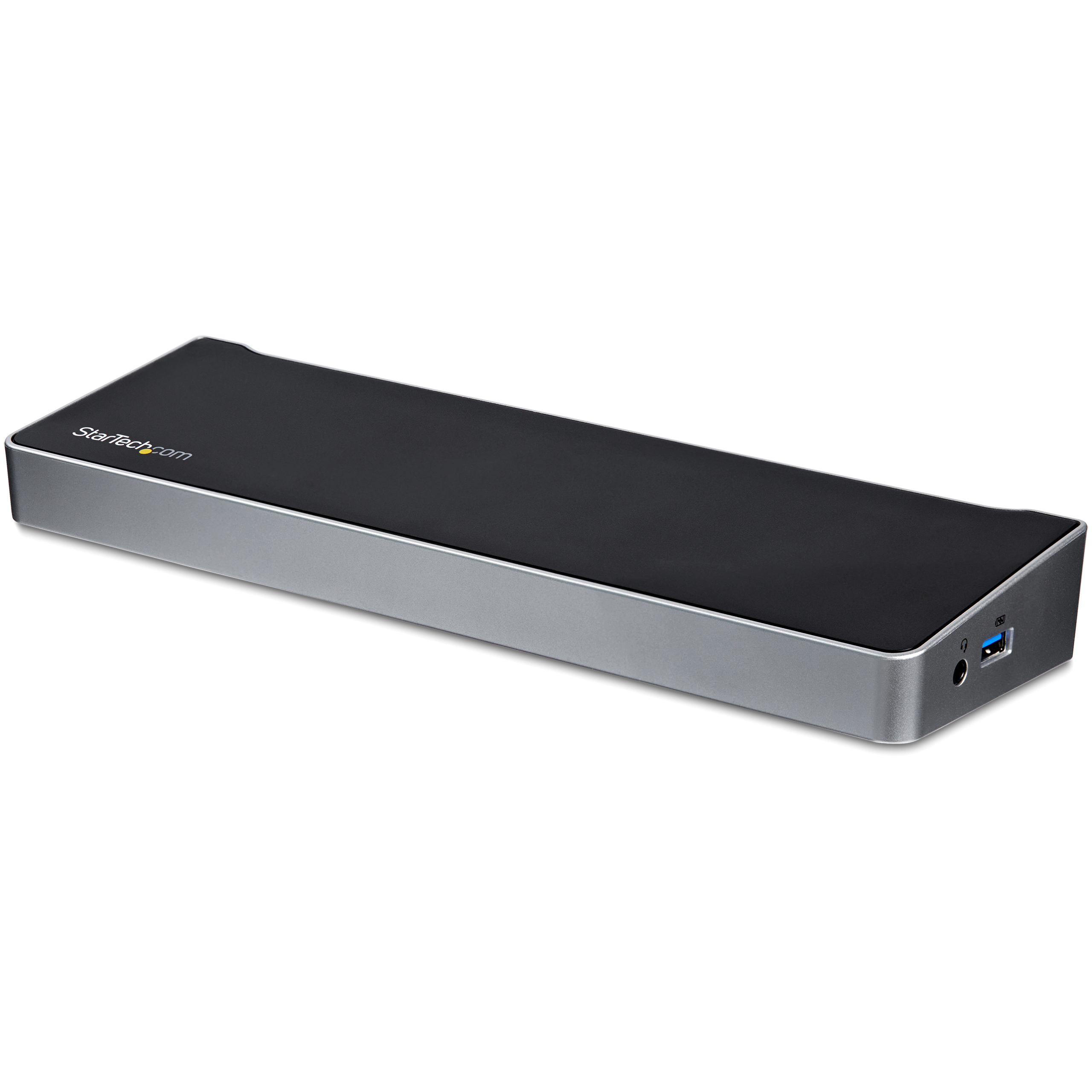

Laptop Docking Station | Mac & Windows | 60W Power Delivery| 4K 60 DP + HDMI
This TAA compliant 4K USB-C dock for Mac and Windows laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell XPS 15, Chromebook Pixel, or another USB-C enabled PC laptop. Â
The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).Â
Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported. Â
Enhance ProductivityÂ
The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:Â
2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and Â
1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30HzÂ
For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.Â
Powerful ConnectionsÂ
This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.Â
60W Power DeliveryÂ
Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.Â
The DK30CH2DPPDU is backed by a StarTech.com 3-year warranty and free lifetime technical support.Â
technical support.
The StarTech.com Advantage
- Dock your USB-C equipped Mac or Windows laptop with triple 4K monitors: 2x DisplayPort (DisplayLink) and 1x HDMI (DP Alt Mode)
- Connect your USB devices with 5x USB 3.0 ports - 1x USB-C and 4x USB-A (incl 1x Fast-Charge)
- Power and charge your laptop with Power Delivery 2.0 (up to 60W)
Specs
| Weight & dimensions |
| Width |
82 mm |
| Depth |
270 mm |
| Height |
34 mm |
| Weight |
385 g |
| Package width |
161 mm |
| Package depth |
296 mm |
| Package height |
71 mm |
| Package weight |
1.5 kg |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity |
2 |
| DisplayPorts quantity |
2 |
| Number of microphone inputs |
1 |
| Headphone connectivity |
3.5 mm |
| Combo headphone/mic port |
Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
2 A |
| Power supply |
60 W |
| Output voltage |
20 V |
| Output current |
6 A |
| Power plug type |
Type N |
| Compatible power plug types |
EU,UK |
| Storage |
| Card reader integrated |
N |
| Packaging content |
| Cables included |
USB Type-C |
| AC adapter included |
Y |
| Manual |
Y |
| Other features |
| Chipset |
DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176 |
| Number of microphone inputs |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Ethernet LAN (RJ-45) ports |
1 |
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| Design |
| Product colour |
Black,Silver |
| Cable lock slot |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, TAA |
| Performance |
| Brand compatibility |
Any brand |
| On/off switch |
Y |
| Maximum digital resolution |
4096 x 2160 pixels |
| Data transfer rate |
6 Gbit/s |
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| UASP support |
Y |
| Product colour |
Black, Silver |
| Card reader integrated |
N |
| Cable lock slot |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, TAA |
| Technical details |
| Sustainability certificates |
RoHS |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
| Mac compatibility |
Y |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina |
| Other operating systems supported |
Chrome |
| Packaging data |
| Package width |
161 mm |
| Package depth |
296 mm |
| Package height |
71 mm |
| Package weight |
1.45 kg |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com Triple Monitor 4K USB-C Dock with 5x USB 3.0 Ports. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 6 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. AC input voltage: 100 - 240 V, Input current: 2 A, Power supply: 60 W. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina, Other operating systems supported: Chrome
Product Description
Laptop Docking Station | Mac & Windows | 60W Power Delivery| 4K 60 DP + HDMI
This TAA compliant 4K USB-C dock for Mac and Windows laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell XPS 15, Chromebook Pixel, or another USB-C enabled PC laptop. Â
The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).Â
Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported. Â
Enhance ProductivityÂ
The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:Â
2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and Â
1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30HzÂ
For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.Â
Powerful ConnectionsÂ
This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.Â
60W Power DeliveryÂ
Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.Â
The DK30CH2DPPDU is backed by a StarTech.com 3-year warranty and free lifetime technical support.Â
technical support.
The StarTech.com Advantage
- Dock your USB-C equipped Mac or Windows laptop with triple 4K monitors: 2x DisplayPort (DisplayLink) and 1x HDMI (DP Alt Mode)
- Connect your USB devices with 5x USB 3.0 ports - 1x USB-C and 4x USB-A (incl 1x Fast-Charge)
- Power and charge your laptop with Power Delivery 2.0 (up to 60W)
