Stock Status: 1x unit in stock

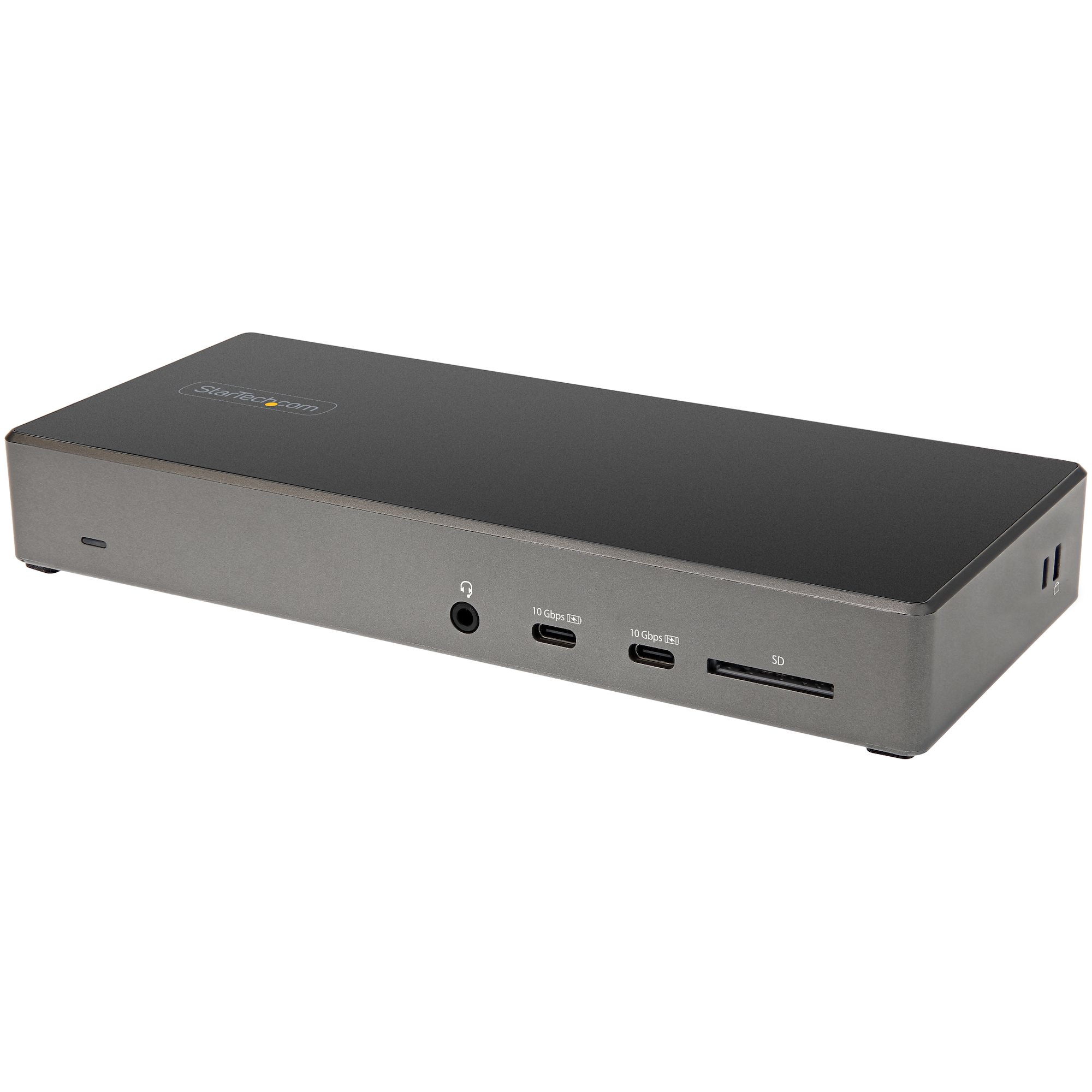

USB Type-C Multiport Adapter | Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports
This USB-C Gen 2 10Gbps docking station?turns your USB-C or Thunderbolt 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.
HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.
DP 1.4 HBR3 with DSC Enabled
DP 1.4 HBR3 (without DSC)
DP 1.2 HBR2
Triple Display
Up to 4096 x 2160 @ 30Hz
Up to 1920 x 1080 @ 60Hz
Up to 1600 x 900 @ 60Hz
Dual Display
Up to 4096 x 2160 @ 60Hz*
*HDMI port + DP port or 2 DP ports
Up to 2560 x 1440 @ 60Hz
Up to 1920 x 1080 @ 60Hz
Single Display
Up to 4096 x 2160 @ 60Hz
Up to 3840 x 2160 @ 60Hz
Up to 3840 x 2160 @ 30Hz
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.
2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
2x USB-A 3.2 Gen 1 - 5 Gbps
2x USB-A 2.0 - 480 Mbps
SD 4.0 Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.
Additional Security Features
This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Connected Device Transparency with the StarTech.com MAC Address Changer Utility
The DK31C2DHSPDUE includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.
The StarTech.com Advantage
- HIGH PERFORMANCE USB-C DOCK: USB-C docking station for Windows/Chrome OS, featuring up to three 4K video outputs (2x DisplayPort 1.4 & 1x HDMI 2.0), 100W PD, 6 port USB Hub (10Gbps), SD 4.0 Card Reader, Gigabit Ethernet, and headset port
- DISPLAYPORT 1.4 WITH DSC: Triple monitor USB-C docking station (MST) supports dual 4K 60Hz or triple 4K 30Hz on DP 1.4 Alt-Mode HBR3 w/ DSC enabled laptop (min. Intel 11th Gen); works with DP 1.2 supporting dual monitor 1080p @ 60Hz (see image gallery)
- 100W POWER DELIVERY CHARGING: Power & charge Windows-based USB-C/Thunderbolt 3 workstation laptops, Chromebooks, ultrabooks including Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, and ZBook"
Specs
| Weight & dimensions |
| Width |
210 mm |
| Depth |
90 mm |
| Height |
30 mm |
| Weight |
300 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| Headphone outputs |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB Power Delivery |
Y |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.0 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Combo headphone/mic port |
Y |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Y |
| Power |
| AC input voltage |
100 - 240 V |
| Power plug type |
Type M |
| Compatible power plug types |
EU,UK |
| Packaging content |
| Cables included |
USB Type-C to USB Type-C |
| AC adapter included |
Y |
| Quick start guide |
Y |
| Other features |
| Chipset |
Cypress - CYPD4236, Synaptics - VMM5320BJG-R |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Networking standards |
IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u |
| Performance |
| Product colour |
Black, Grey |
| Card reader integrated |
Y |
| Compatible memory cards |
MMC,SD |
| Data transfer rate |
10 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
3 |
| Maximum refresh rate |
60 Hz |
| Cable lock slot |
Y |
| LED indicators |
Y |
| Certification |
CE, FCC, RoHS |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 8.1,Windows |
| Mac operating systems supported |
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Mobile operating systems supported |
Android 10,Android 9.0,iPadOS |
| Other operating systems supported |
Chrome |
| Packaging data |
| Package width |
270 mm |
| Package depth |
150 mm |
| Package height |
94 mm |
| Package weight |
1.4 kg |
| Logistics data |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
390 mm |
| Master (outer) case length |
282 mm |
| Master (outer) case height |
195 mm |
Features
StarTech.com USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps) - Windows/Chrome. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T, Networking standards: IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u. Product colour: Black, Grey, Compatible memory cards: MMC,SD, Data transfer rate: 10 Gbit/s. AC input voltage: 100 - 240 V, Power plug type: Type M, Compatible power plug types: EU,UK. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Mobile operating systems supported: Android 10,Android 9.0,iPadOS
Product Description
USB Type-C Multiport Adapter | Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports
This USB-C Gen 2 10Gbps docking station?turns your USB-C or Thunderbolt 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.
HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.
DP 1.4 HBR3 with DSC Enabled
DP 1.4 HBR3 (without DSC)
DP 1.2 HBR2
Triple Display
Up to 4096 x 2160 @ 30Hz
Up to 1920 x 1080 @ 60Hz
Up to 1600 x 900 @ 60Hz
Dual Display
Up to 4096 x 2160 @ 60Hz*
*HDMI port + DP port or 2 DP ports
Up to 2560 x 1440 @ 60Hz
Up to 1920 x 1080 @ 60Hz
Single Display
Up to 4096 x 2160 @ 60Hz
Up to 3840 x 2160 @ 60Hz
Up to 3840 x 2160 @ 30Hz
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.
2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
2x USB-A 3.2 Gen 1 - 5 Gbps
2x USB-A 2.0 - 480 Mbps
SD 4.0 Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.
Additional Security Features
This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Connected Device Transparency with the StarTech.com MAC Address Changer Utility
The DK31C2DHSPDUE includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.
The StarTech.com Advantage
- HIGH PERFORMANCE USB-C DOCK: USB-C docking station for Windows/Chrome OS, featuring up to three 4K video outputs (2x DisplayPort 1.4 & 1x HDMI 2.0), 100W PD, 6 port USB Hub (10Gbps), SD 4.0 Card Reader, Gigabit Ethernet, and headset port
- DISPLAYPORT 1.4 WITH DSC: Triple monitor USB-C docking station (MST) supports dual 4K 60Hz or triple 4K 30Hz on DP 1.4 Alt-Mode HBR3 w/ DSC enabled laptop (min. Intel 11th Gen); works with DP 1.2 supporting dual monitor 1080p @ 60Hz (see image gallery)
- 100W POWER DELIVERY CHARGING: Power & charge Windows-based USB-C/Thunderbolt 3 workstation laptops, Chromebooks, ultrabooks including Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, and ZBook"
