Stock Status: 1x unit in stock

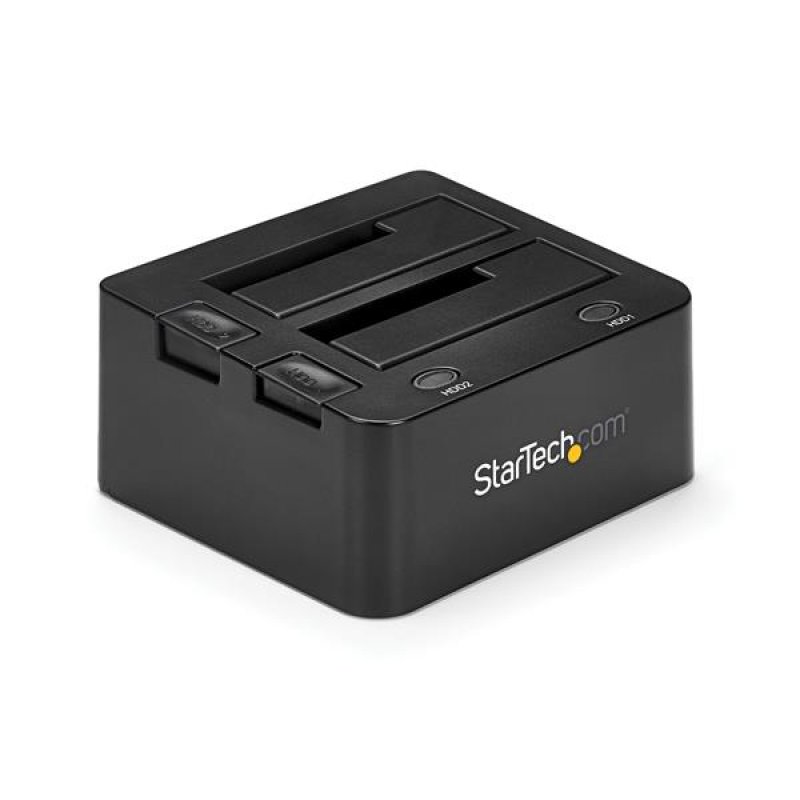

The SDOCK2U33 Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap drives from your desktop or laptop computer simultaneously, using a single USB port.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The hard drive dock features independent power buttons for each individual drive, ensuring you can operate each hard drive separately. This gives you the freedom to hot-swap one drive while transferring data to another, saving you time.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCK2U33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
SDOCK2U33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
- Save time, with file transfers up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
- Hassle-free operation with independent drive power allowing for uninterrupted data transfers while hot-swapping the other drive
Specs
| Hard drive |
| Storage media type |
HDD, SSD |
| Storage drive interface |
Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported |
2.5,3.5" |
| Number of storage drives supported |
2 |
| Maximum storage capacity |
8 TB |
| Technical details |
| Sustainability certificates |
RoHS |
| Weight & dimensions |
| Width |
132 mm |
| Depth |
148 mm |
| Height |
70 mm |
| Weight |
513 g |
| Operating system/software |
| Windows operating systems supported |
Windows 2000,Windows 8,Windows 8.1,Windows Vista Home Basic,Windows XP Home |
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Software |
| Windows operating systems supported |
Windows 2000,Windows 8,Windows 8.1,Windows Vista Home Basic,Windows XP Home |
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
1.3 A |
| Output voltage |
12 V |
| Output current |
3 A |
| Packaging data |
| Package dimensions (WxDxH) |
120 x 185 x 210 mm |
| Package width |
189 mm |
| Package height |
212 mm |
| Package weight |
1 kg |
| Package depth |
122 mm |
| Packaging content |
| AC adapter included |
Y |
| Cables included |
USB |
| Manual |
Y |
| Included power plug types |
EU,NA,UK |
| Cooling |
| Built-in fan |
N |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Ports & interfaces |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.0 (3.1 Gen 1) ports quantity |
1 |
| DC-in jack |
Y |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity |
1 |
| Other features |
| Standard interfaces |
USB 3.0 |
| Features |
| Maximum data transfer rate |
6 Gbit/s |
| Colour of product |
Black |
| Material |
Plastic |
| Plug and Play |
Y |
| Mean time between failures (MTBF) |
30000 h |
| UASP support |
Y |
| Chipset |
VIA/VLI – VL812, ASMedia ASM1053E |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH |
| Product colour |
Black |
| LED indicators |
Activity, Power |
| Number of connectivity cycles |
15000 |
| Ethernet LAN features |
| LED indicators |
Activity, Power |
Features
StarTech.com USB 3.0 Dual Hard Drive Docking Station with UASP for 2.5/3.5in SSD / HDD – SATA 6 Gbps. Storage media type: HDD, SSD, Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B. Maximum data transfer rate: 6 Gbit/s, Product colour: Black, Material: Plastic. AC input voltage: 100 - 240 V, Input current: 1.3 A, Output voltage: 12 V. Width: 132 mm, Depth: 148 mm, Height: 70 mm
Product Description
The SDOCK2U33 Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap drives from your desktop or laptop computer simultaneously, using a single USB port.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The hard drive dock features independent power buttons for each individual drive, ensuring you can operate each hard drive separately. This gives you the freedom to hot-swap one drive while transferring data to another, saving you time.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCK2U33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
SDOCK2U33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
- Save time, with file transfers up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
- Hassle-free operation with independent drive power allowing for uninterrupted data transfers while hot-swapping the other drive
