Stock Status: 1x unit in stock
Dock and access your SATA SSD/HDD through high-performance USB 3.1 (10Gbps) or eSATA
Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.
Supports USB 3.1 Gen 2 and eSATA for flexible use
Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.
You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.

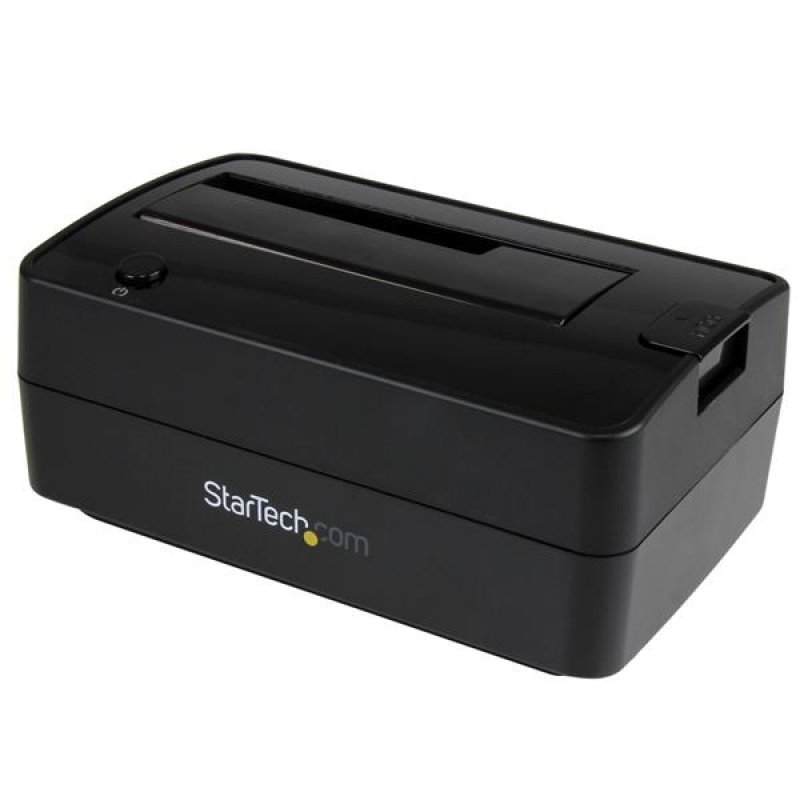

Top-loading design for easy drive access
The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.
The docking station is also UASP compatible, for enhanced performance.
The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Connect and access a 2.5" or 3.5" SATA SSD/HDD over USB 3.1 Gen 2 or eSATA
- Access drives at full speed with support for SATA I, II and III (up to 6Gbps)
- Top-loading design with built-in ejection button for easy drive access
Specs
| Hard drive |
| Storage media type |
HDD, SSD |
| Storage drive interface |
Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported |
2.5,3.5" |
| Number of storage drives supported |
1 |
| Maximum storage capacity |
6 TB |
| Technical details |
| Sustainability certificates |
RoHS |
| Weight & dimensions |
| Width |
93 mm |
| Depth |
145 mm |
| Height |
63 mm |
| Weight |
410 g |
| Power |
| AC input voltage |
110-240 V |
| Input current |
0.6 A |
| Output voltage |
12 V |
| Output current |
2 A |
| Power plug type |
Type M |
| Packaging data |
| Package width |
161 mm |
| Package depth |
171 mm |
| Package height |
91 mm |
| Package weight |
862 g |
| Packaging content |
| AC adapter included |
Y |
| Cables included |
USB,eSATA |
| Included power plug types |
AU,EU,NA,UK |
| Quick installation guide |
Y |
| Cooling |
| Built-in fan |
N |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Ports & interfaces |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-B |
| eSATA ports quantity |
1 |
| DC-in jack |
Y |
| Features |
| Maximum data transfer rate |
10 Gbit/s |
| Product colour |
Black |
| Material |
Plastic |
| Hot-swap |
Y |
| Plug and Play |
Y |
| LED indicators |
Activity, Power |
| UASP support |
Y |
| Chipset |
ASMedia - ASM1351 |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH |
Features
StarTech.com Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1 (USB-A, USB-C) or eSATA. Storage media type: HDD, SSD, Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-B. Maximum data transfer rate: 10 Gbit/s, Product colour: Black, Material: Plastic. AC input voltage: 110-240 V, Input current: 0.6 A, Output voltage: 12 V. Width: 93 mm, Depth: 145 mm, Height: 63 mm
