Stock Status: 1x unit in stock

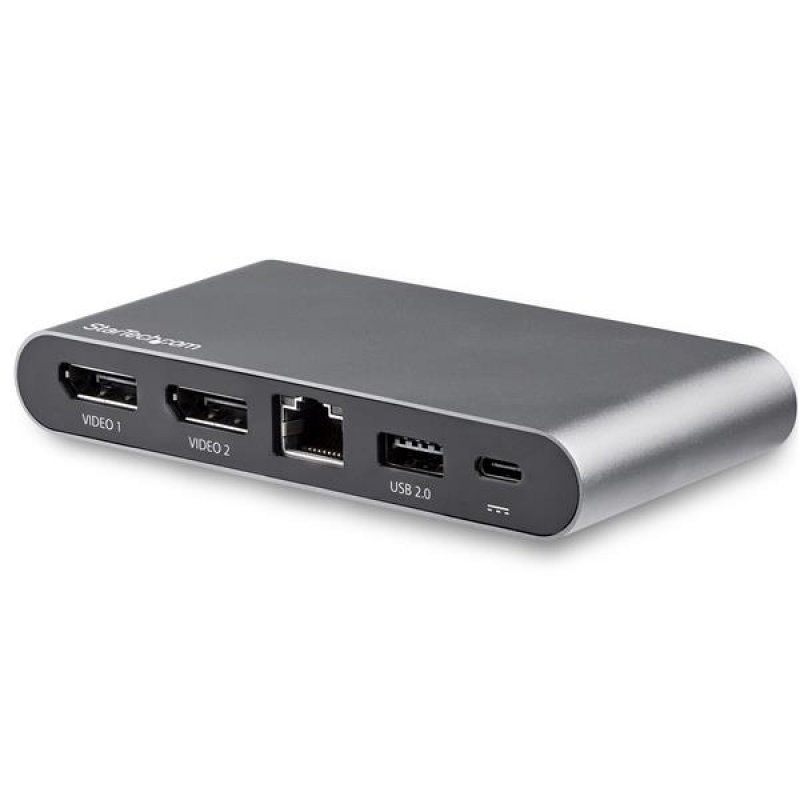

Portable Docking Station| 2 x USB-A | Windows | GbE | DP Alt Mode Switch
This USB-C multiport adapter turns your Windows laptop into a portable workstation. The USB-C to dual DisplayPort adapter connects your USB-C laptop to two DisplayPort monitors, letting you power through work faster or make presentations with different views on two displays. It gives you two USB-A ports, a Gigabit Ethernet port, a DP Alt Mode Switch, and laptop charging.
Laptop Charging with PD 3.0
Through 100W Power Delivery 3.0, the USB Type-C to DisplayPort adapter powers itself as well as your laptop and any attached peripherals, with up to 85W laptop charging when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug the power adapter to switch power sources (USB-C power adapter to bus power).
Connect to Dual DP Monitors with Flexible Resolution Options
The USB-C video adapter extends your laptop screen to dual DisplayPort displays. Using the DP Alt Mode switch, you can choose between higher display resolution or faster USB speed to meet your needs, for desktop or portable use. Choose between: dual 4K30 (or single 4K60) resolution with USB 2.0 speed, or dual 1080p (or single 4K30) resolution with USB 3.0 speed.
The maximum Ethernet speed is 1000 Mbps in USB 3.0 mode, and 100 Mbps in USB 2.0 mode.
Connect USB Devices
The USB-C hub with DisplayPort gives you two USB-A ports (one USB 3.0/USB 2.0, and one USB 2.0).
Reliable Network Connectivity
The GbE port ensures reliable network access. A 1 m USB-C cable is included for set-up flexibility.
DK30C2DAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
The StarTech.com Advantage
- Portable USB-C multiport adapter with flexible DisplayPort dual-monitor or single-monitor video outputs: dual 4K 30Hz, dual 2K 60Hz or single 4K60Hz
- Power both the adapter and your laptop with 100W Power Delivery 3.0 (85W laptop charging) using a USB Type-C power adapter
- Connect your devices with 2x USB-A ports - 1x USB 3.0/2.0 and 1x USB 2.0
Specs
| Weight & dimensions |
| Width |
60 mm |
| Depth |
120 mm |
| Height |
18.8 mm |
| Weight |
150 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Microphone in |
N |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| DisplayPorts quantity |
2 |
| USB Power Delivery |
Y |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| Power |
| Power source type |
USB |
| Power supply |
100 W |
| Power consumption (typical) |
15 W |
| Packaging content |
| Cables included |
USB Type-C |
| Quick start guide |
Y |
| Other features |
| Chipset |
VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, RealTek - RTL8153 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| 10G support |
N |
| Performance |
| Product colour |
Black |
| Card reader integrated |
N |
| Data transfer rate |
5 Gbit/s |
| Maximum digital resolution |
4096 x 2160 pixels |
| UASP support |
Y |
| Housing material |
Plastic |
| Brand compatibility |
Any brand |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH |
| Technical details |
| Sustainability certificates |
RoHS |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
| Packaging data |
| Package width |
145 mm |
| Package depth |
208 mm |
| Package height |
42 mm |
| Package weight |
300 g |
| Logistics data |
| Quantity per master (outer) case |
24 pc(s) |
| Master (outer) case width |
31 cm |
| Master (outer) case length |
45 cm |
| Master (outer) case height |
28 cm |
| Products per master (outer) case |
24 pc(s) |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: USB, Power supply: 100 W, Power consumption (typical): 15 W. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10...
Product Description
Portable Docking Station| 2 x USB-A | Windows | GbE | DP Alt Mode Switch
This USB-C multiport adapter turns your Windows laptop into a portable workstation. The USB-C to dual DisplayPort adapter connects your USB-C laptop to two DisplayPort monitors, letting you power through work faster or make presentations with different views on two displays. It gives you two USB-A ports, a Gigabit Ethernet port, a DP Alt Mode Switch, and laptop charging.
Laptop Charging with PD 3.0
Through 100W Power Delivery 3.0, the USB Type-C to DisplayPort adapter powers itself as well as your laptop and any attached peripherals, with up to 85W laptop charging when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug the power adapter to switch power sources (USB-C power adapter to bus power).
Connect to Dual DP Monitors with Flexible Resolution Options
The USB-C video adapter extends your laptop screen to dual DisplayPort displays. Using the DP Alt Mode switch, you can choose between higher display resolution or faster USB speed to meet your needs, for desktop or portable use. Choose between: dual 4K30 (or single 4K60) resolution with USB 2.0 speed, or dual 1080p (or single 4K30) resolution with USB 3.0 speed.
The maximum Ethernet speed is 1000 Mbps in USB 3.0 mode, and 100 Mbps in USB 2.0 mode.
Connect USB Devices
The USB-C hub with DisplayPort gives you two USB-A ports (one USB 3.0/USB 2.0, and one USB 2.0).
Reliable Network Connectivity
The GbE port ensures reliable network access. A 1 m USB-C cable is included for set-up flexibility.
DK30C2DAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
The StarTech.com Advantage
- Portable USB-C multiport adapter with flexible DisplayPort dual-monitor or single-monitor video outputs: dual 4K 30Hz, dual 2K 60Hz or single 4K60Hz
- Power both the adapter and your laptop with 100W Power Delivery 3.0 (85W laptop charging) using a USB Type-C power adapter
- Connect your devices with 2x USB-A ports - 1x USB 3.0/2.0 and 1x USB 2.0
