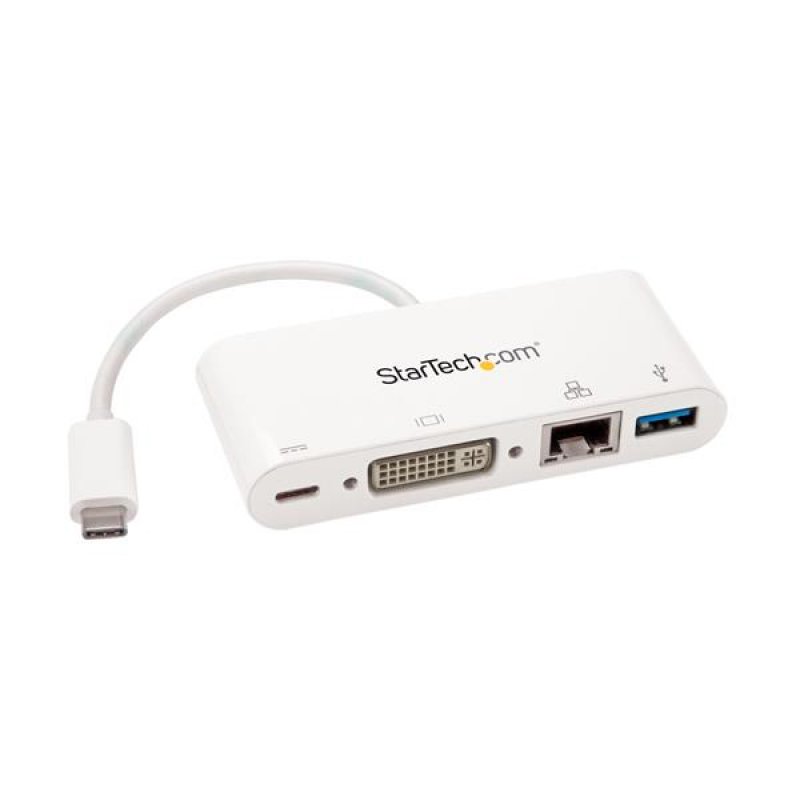

Portable Docking Station | Windows & Mac | USB-A & GbE | Thunderbolt3 Compatible
This USB-C multiport adapter equips your USB-C Windows or MacBook laptop with essential connections, including a DVI output, a Gigabit Ethernet port and a USB 3.0 (Type-A) port. Plus, you can power both the adapter and your laptop simultaneously, with 60 W USB Power Delivery 2.0 and a USB-C power adapter.
All the Connections You Need
The versatile adapter combines the performance of three single-function adapters into one powerful solution.
USB-C to DVI adapter
USB-C Ethernet adapter
USB-C to USB -A adapter
Add a second display through the DVI port. Get fast, reliable network access through the Gigabit Ethernet RJ45 port and connect a USB 3.0 peripheral device, such as a mouse or USB flash drive, all with one, simple-to-use device.
Charge and Power Your Laptop While You Work
The multiport adapter’s USB-C port supports 60 W USB Power Delivery 2.0, so you can power and charge your laptop while you work.
Bring Productivity Wherever You Go
The USB Type-C multiport adapter is highly portable and features an integrated USB-C cable and USB-powered performance, so there’s no need to carry a separate power adapter with you.
The StarTech.com Advantage for Docking Stations
Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
Get more done faster - More ports and more displays maximize end user connectivity and productivity
Quick installation - eliminate deployment headaches that waste time and frustrate end users
IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support
The DKT30CDVPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
The StarTech.com Advantage
- 4-IN-1 USB-C MULITPORT ADAPTER: This USB C mini dock has DVI-D video output, Gigabit Ethernet port, 1x 5Gbps USB-A 3.0 port & 60W Power Delivery pass through charging, to work from home or in office
- DVI DIGITAL VIDEO OUTPUT: The DVI Digital video output on this USB Type-C multiport adapter provides a sharper digital display image and supports resolutions up to 1920x1200 / 1080p (Single Link)
- POWERED BY LAPTOP OR EXTERNAL ADAPTER: The dock can be USB bus powered or with a USB-C power adapter; Charge the laptop via PD Passthrough w/ your USB-C power adapter (7W for dock, 53W for charging)
Specs
| Weight & dimensions |
| Width |
41 mm |
| Depth |
97 mm |
| Height |
17 mm |
| Weight |
50 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Microphone in |
N |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| DVI-I ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-C |
| Power |
| Power source type |
USB |
| Power supply |
60 W |
| Packaging content |
| Manual |
Y |
| Other features |
| Cable length |
0.14 m |
| Chipset |
VLI - VL812, VLI - VL100, PS - PS171, Realtek - RTL8153 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wake-on-LAN ready |
Y |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| Performance |
| Product colour |
White |
| Card reader integrated |
N |
| Data transfer rate |
5000 Gbit/s |
| Maximum digital resolution |
1920 x 1200 pixels |
| UASP support |
Y |
| Brand compatibility |
Any brand |
| Certification |
CE, FCC, REACH |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
| Mac compatibility |
Y |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Other operating systems supported |
Chrome |
| Packaging data |
| Package width |
142 mm |
| Package depth |
172 mm |
| Package height |
30 mm |
| Package weight |
130 g |
| Logistics data |
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case width |
33 cm |
| Master (outer) case length |
53 cm |
| Master (outer) case height |
31 cm |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com USB C Multiport Adapter - USB-C to DVI-D (Digital) Video Adapter with 60W Power Delivery Passthrough Charging, GbE, USB-A - Portable USB Type-C/Thunderbolt 3 Mini Laptop Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB connector type: USB Type-A, USB Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u. Product colour: White, Data transfer rate: 5000 Gbit/s, Maximum digital resolution: 1920 x 1200 pixels. Power source type: USB, Power supply: 60 W. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Other operating systems supported: Chrome
