Stock Status: 1x unit in stock

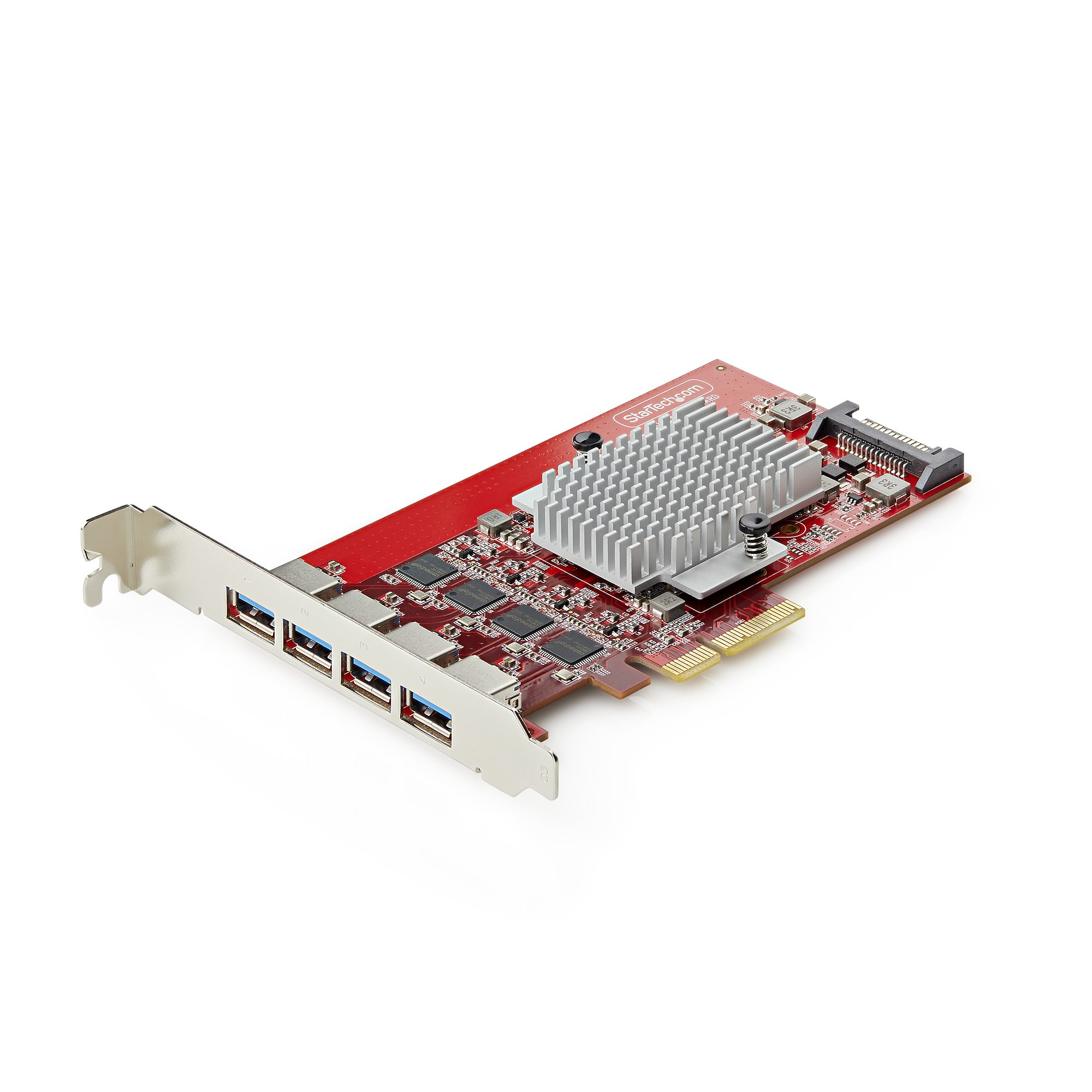

Add four USB Type-A ports with four independent 10Gbps channels to a computer via a PCI Express slot
Enhance the USB connectivity of a desktop computer or server by adding four external USB-A 10Gbps ports with this internal PCI Express 3.0 expansion card.
Dedicated USB Controllers
With its four independent USB controllers, this PCIe USB-C card enables each port to achieve up to 10Gbps performance, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters.
Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 2A (10W) per USB-A port, enabling sync and charge of portables devices. If the motherboard can't supply enough power, a built-in SATA power connector supports auxiliary power to maintain stable performance.
Compatibility
The PCIe USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. It supports PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card ships with a pre-installed standard profile bracket.
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2019, Windows Server 2022 |
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard |
PCIe 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| SATA power connector type |
SATA 15-pin |
| Weight & dimensions |
| Width |
56 mm |
| Depth |
140 mm |
| Height |
120 mm |
| Weight |
94 g |
| Design |
| Internal |
Yes |
| Product colour |
Red |
| Logistics data |
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case width |
380 mm |
| Master (outer) case length |
310 mm |
| Master (outer) case height |
500 mm |
| Packaging data |
| User guide |
Yes |
| Package width |
142 mm |
| Package depth |
170 mm |
| Package height |
30 mm |
| Package weight |
160 g |
| Features |
| Chipset |
ASMedia - ASM3142, ASMedia - ASM2812X |
| Data transfer rate (max) |
10 Gbit/s |
| UASP support |
Yes |
| Technical details |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
Features
StarTech.com 4-Port USB-A PCIe Card, USB 3.2 10Gbps, PCI Express 3.0 Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Product colour: Red. Chipset: ASMedia - ASM3142, ASMedia - ASM2812X, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Server operating systems supported: Windows Server 2019, Windows Server 2022. Width: 56 mm, Depth: 140 mm, Height: 120 mm
Product Description
Add four USB Type-A ports with four independent 10Gbps channels to a computer via a PCI Express slot
Enhance the USB connectivity of a desktop computer or server by adding four external USB-A 10Gbps ports with this internal PCI Express 3.0 expansion card.
Dedicated USB Controllers
With its four independent USB controllers, this PCIe USB-C card enables each port to achieve up to 10Gbps performance, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters.
Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 2A (10W) per USB-A port, enabling sync and charge of portables devices. If the motherboard can't supply enough power, a built-in SATA power connector supports auxiliary power to maintain stable performance.
Compatibility
The PCIe USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. It supports PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card ships with a pre-installed standard profile bracket.
