Stock Status: 1x unit in stock
Add four USB 2.0 Ports to the back of your computer

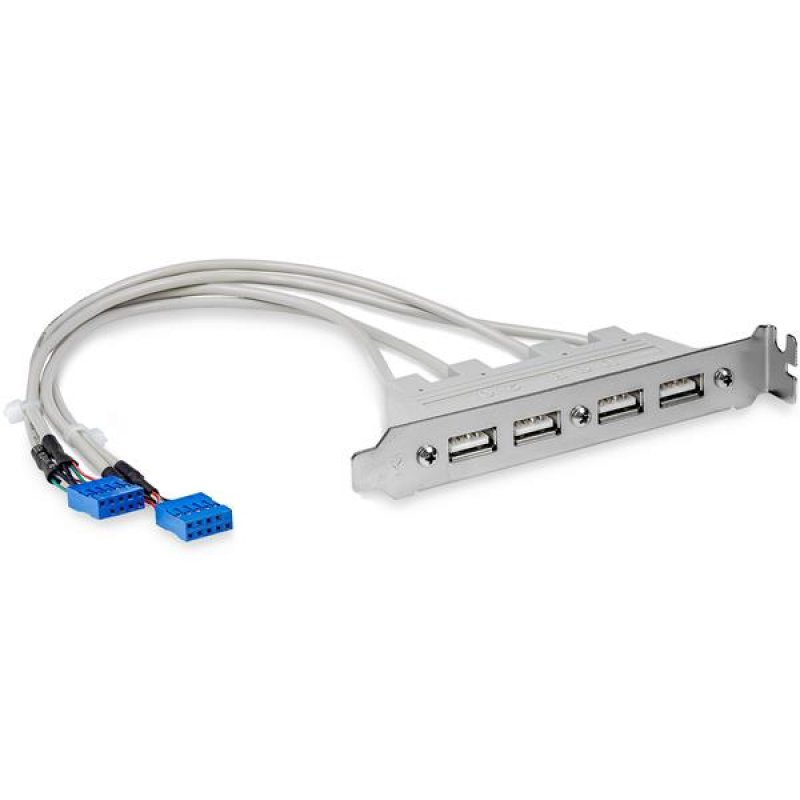

The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.
Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.
Please Note: Check your motherboard’s manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red=Power, Green=Signal, White=Signal, Black=Ground
The StarTech.com Advantage
- Supports 4 or 5 pin motherboard connections
- Guaranteed reliability
Specs
| Ports & interfaces |
| Internal |
Y |
| Host interface |
IDC |
| Output interface |
USB 2.0 |
| USB 2.0 ports quantity |
4 |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 40 °C |
| Storage temperature (T-T) |
-5 - 80 °C |
| Operating relative humidity (H-H) |
20 - 60% |
| Weight & dimensions |
| Package width |
18 mm |
| Package depth |
124 mm |
| Package height |
220 mm |
| Package weight |
100 g |
| Weight |
68 g |
| Other features |
| Package length |
4.88 mm |
| Cable length |
0.286 m |
| Design |
| RoHS compliance |
Y |
| Internal |
Y |
| Certification |
CE, UL, REACH |
| Performance |
| Package length |
4.88 mm |
| Packaging data |
| Package width |
125 mm |
| Package depth |
225 mm |
| Package height |
22 mm |
| Package weight |
73 g |
| Features |
| Data transfer rate (max) |
0.48 Gbit/s |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com 4 Port USB A Female Slot Plate Adapter. Host interface: IDC, Output interface: USB 2.0. Certification: CE, UL, REACH. Data transfer rate (max): 0.48 Gbit/s. Weight: 68 g. Package width: 125 mm, Package depth: 225 mm, Package height: 22 mm
Product Description
Add four USB 2.0 Ports to the back of your computer
The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.
Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.
Please Note: Check your motherboard’s manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red=Power, Green=Signal, White=Signal, Black=Ground
The StarTech.com Advantage
- Supports 4 or 5 pin motherboard connections
- Guaranteed reliability
