Stock Status: 1x unit in stock

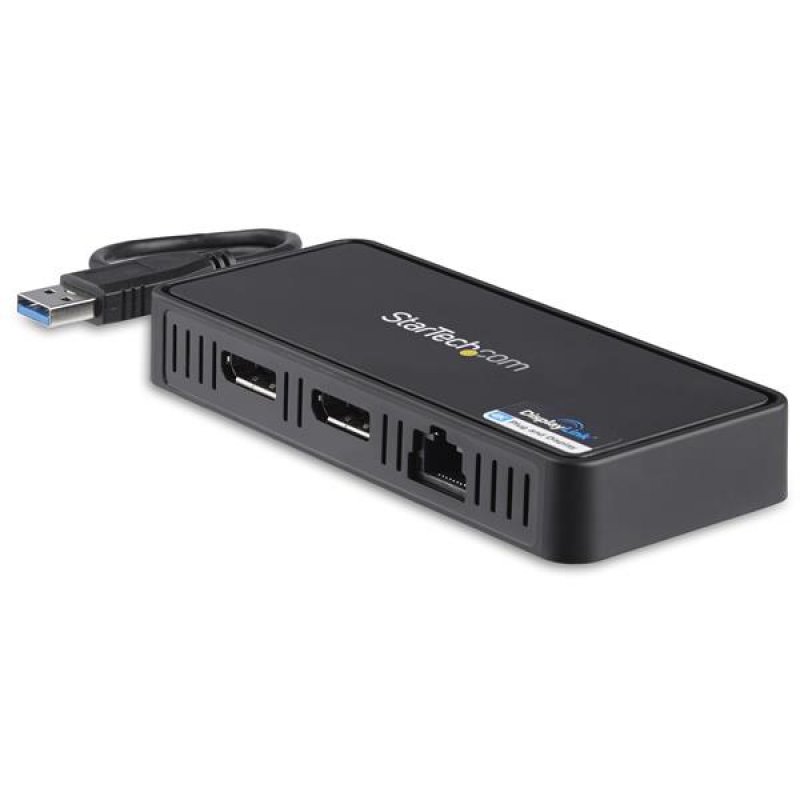

Portable Docking Station | USB 3.0 | Mac & Windows | TAA Compliant
This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.
Increase Your Productivity with Two 4K Monitors
The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.
Access Hardwired Networks with a GbE Port
Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn’t have an Ethernet port.
Maximize Portability with a Miniature Docking Station
The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.
The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Dock your USB 3.0 equipped Windows laptop with a portable USB docking station that supports dual monitors: 2x DisplayPort
- Get hardwired LAN connectivity to secure networks, with a dual DisplayPort adapter that features a Gigabit Ethernet port
- Take your connectivity on the go, with a compact mini dock that travels with your laptop
Specs
| Weight & dimensions |
| Width |
58 mm |
| Depth |
130 mm |
| Height |
20 mm |
| Weight |
126 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Microphone in |
N |
| DisplayPorts quantity |
2 |
| Power |
| Power source type |
USB |
| Packaging content |
| Quick start guide |
Y |
| Other features |
| Cable length |
0.14 m |
| Chipset |
DisplayLink - DL-6950 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wake-on-LAN ready |
Y |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| Performance |
| Product colour |
Black |
| Card reader integrated |
N |
| Data transfer rate |
5 Gbit/s |
| Maximum digital resolution |
4096 x 2160 pixels |
| Number of displays supported |
2 |
| UASP support |
N |
| Brand compatibility |
Any brand |
| RoHS compliance |
Y |
| Certification |
CE, FCC, TAA |
| Technical details |
| Sustainability certificates |
RoHS |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
| Mac compatibility |
Y |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave |
| Packaging data |
| Package width |
200 mm |
| Package depth |
114 mm |
| Package height |
38 mm |
| Package weight |
215 g |
| Logistics data |
| Quantity per master (outer) case |
20 pc(s) |
| Master (outer) case width |
22 cm |
| Master (outer) case length |
41.5 cm |
| Master (outer) case height |
25.5 cm |
| Products per master (outer) case |
20 pc(s) |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com USB 3.0 Mini Dock - Dual Monitor USB-A Docking Station with DisplayPort 4K 60Hz Video & Gigabit Ethernet - 1ft (30cm) cable - Portable USB 3.1 Gen 1 Type-A Laptop Adapter. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: USB. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave
Product Description
Portable Docking Station | USB 3.0 | Mac & Windows | TAA Compliant
This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.
Increase Your Productivity with Two 4K Monitors
The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.
Access Hardwired Networks with a GbE Port
Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn’t have an Ethernet port.
Maximize Portability with a Miniature Docking Station
The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.
The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Dock your USB 3.0 equipped Windows laptop with a portable USB docking station that supports dual monitors: 2x DisplayPort
- Get hardwired LAN connectivity to secure networks, with a dual DisplayPort adapter that features a Gigabit Ethernet port
- Take your connectivity on the go, with a compact mini dock that travels with your laptop
