Stock Status: 1x unit in stock

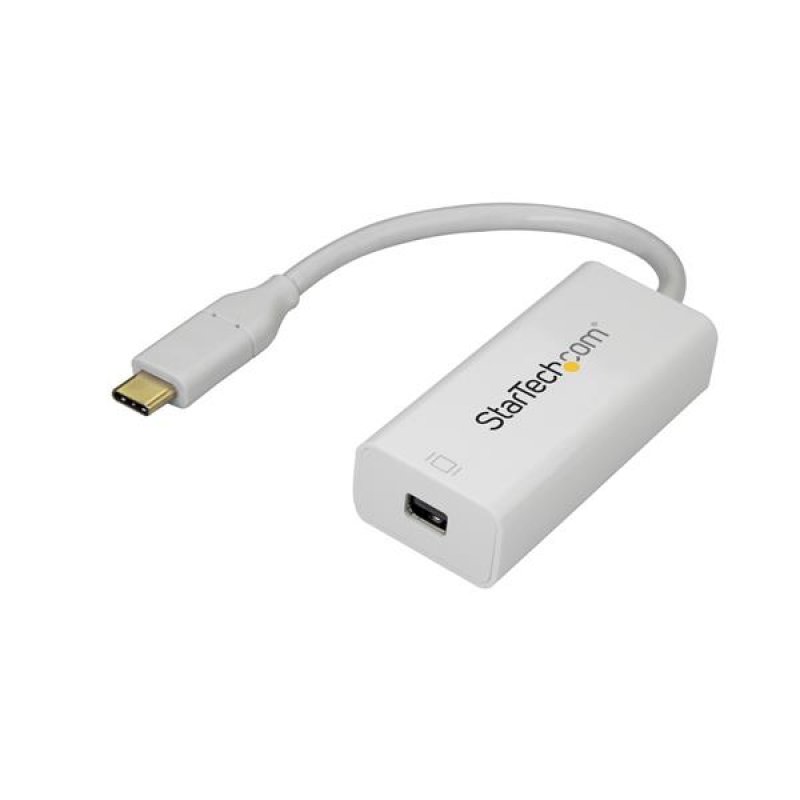

"Use this USB C to mDP adapter to connect your USB Type C computer to a Mini DisplayPort monitor
This USB-C to Mini DisplayPort adapter lets you output mDP video and audio from the USB Type-C port on your laptop or other device. The adapter works with USB-C devices that pass a DisplayPort video signal (DP Alt Mode), such as your MacBook Pro, Chromebook or other USB-C laptop.
This versatile adapter enables you to connect a Mini DisplayPort monitor to your USB-C computer using a Mini DisplayPort cable, or re-purpose your existing mDP equipped workspace to work with your new USB-C computer.
Ultra HD 4K resolution at 60Hz
For easier multitasking, the adapter lets you harness the video capabilities that are built into your computer's USB-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier to multitask, even while working on resource-demanding applications.
With this adapter, you can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
The CDP2MDP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Notes:
Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter
This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters
The StarTech.com Advantage
- Run resource-demanding applications on 4K displays at 60Hz
- Hassle-free connection with the reversible USB-C connector
- Thunderbolt 3 compatible"
Specs
| Weight & dimensions |
| Width |
27 mm |
| Depth |
60 mm |
| Height |
16 mm |
| Weight |
25 g |
| Package width |
125 mm |
| Package depth |
225 mm |
| Package weight |
30 g |
| Package height |
0.0700 mm |
| Performance |
| DVI output |
N |
| HDMI output |
N |
| DisplayPort output |
Y |
| Number of displays supported |
1 |
| USB connector type |
USB Type-C |
| USB connector gender |
Male |
| DisplayPort version |
1.2 |
| Maximum resolution |
3840 x 2160 pixels |
| Refresh rate at maximum resolution |
60 Hz |
| Supported graphics resolutions |
1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160 |
| Audio output channels |
7.1 channels |
| Chipset |
NXP - PTN5100, Pericom - PI3DPX1203 |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH |
| Design |
| Product colour |
White |
| Housing material |
Plastic |
| Integrated USB cable |
Y |
| USB cable length |
0.014 m |
| Technical details |
| Sustainability certificates |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
Features
StarTech.com USB-C to Mini DisplayPort Adapter - 4K 60Hz - White. USB connector type: USB Type-C, USB connector gender: Male, Maximum resolution: 3840 x 2160 pixels. Product colour: White, Housing material: Plastic, USB cable length: 0.014 m. Width: 27 mm, Depth: 60 mm, Height: 16 mm
Product Description
"Use this USB C to mDP adapter to connect your USB Type C computer to a Mini DisplayPort monitor
This USB-C to Mini DisplayPort adapter lets you output mDP video and audio from the USB Type-C port on your laptop or other device. The adapter works with USB-C devices that pass a DisplayPort video signal (DP Alt Mode), such as your MacBook Pro, Chromebook or other USB-C laptop.
This versatile adapter enables you to connect a Mini DisplayPort monitor to your USB-C computer using a Mini DisplayPort cable, or re-purpose your existing mDP equipped workspace to work with your new USB-C computer.
Ultra HD 4K resolution at 60Hz
For easier multitasking, the adapter lets you harness the video capabilities that are built into your computer's USB-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier to multitask, even while working on resource-demanding applications.
With this adapter, you can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
The CDP2MDP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Notes:
Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter
This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters
The StarTech.com Advantage
- Run resource-demanding applications on 4K displays at 60Hz
- Hassle-free connection with the reversible USB-C connector
- Thunderbolt 3 compatible"
