Stock Status: 1x unit in stock

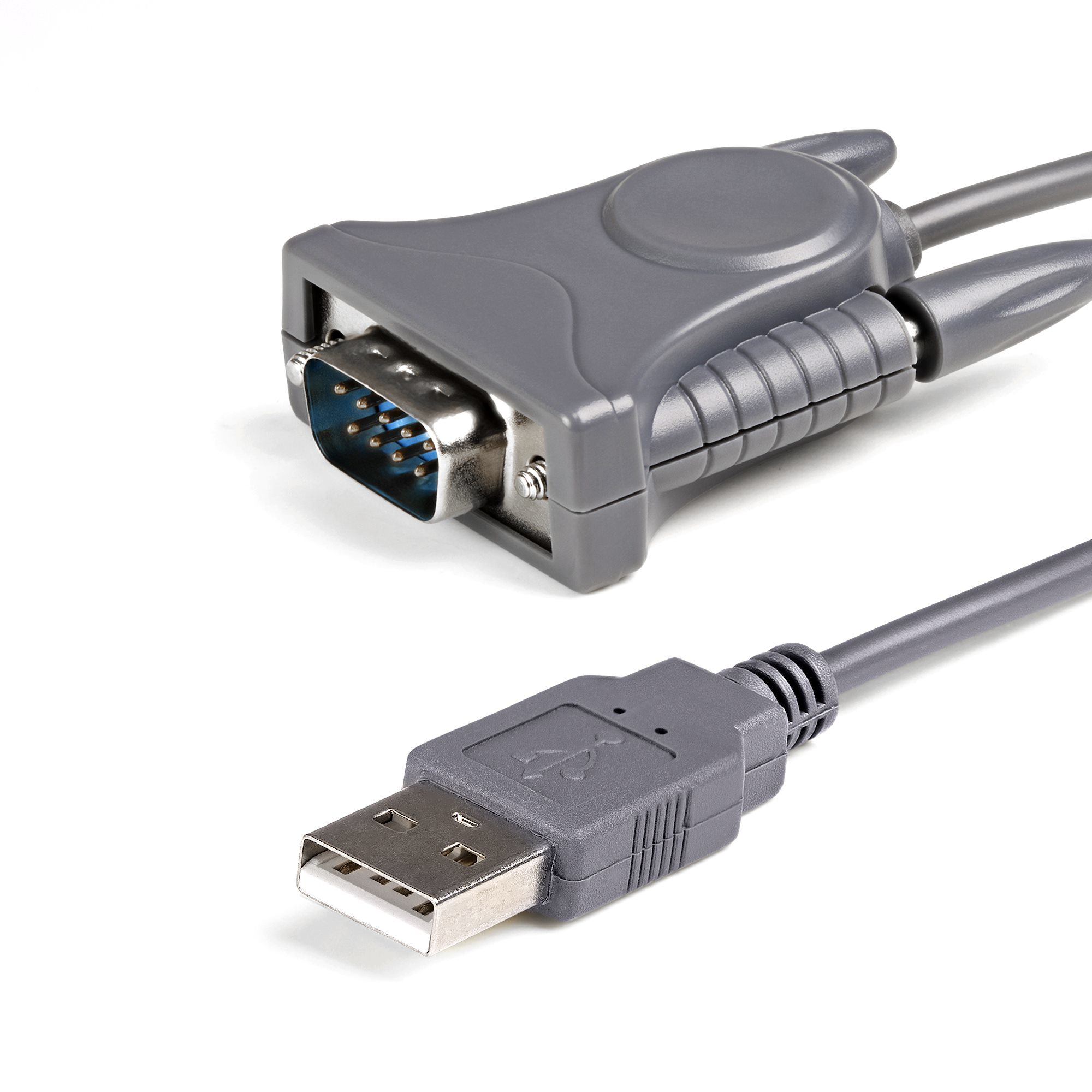

The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.
A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- This versatile device ships with a 9-pin connector, and a 25-pin RS232 adapter for a variety of connection options
- Integrated 3ft cable allows you to connect directly to your serial devices
- Plug-and-Play/Hot-swap support enables you to add and remove this adapter without having to reboot the computer
Specs
| Ports & interfaces |
| Connector 1 |
USB 2.0 |
| Connector 2 |
DB-25 + DB-9 |
| Gender |
Male/Male |
| Connector gender |
Male/Male |
| Cable length |
0.9 m |
| Packaging data |
| Package width |
143 mm |
| Package depth |
172 mm |
| Package height |
32 mm |
| Package weight |
143 g |
| Weight & dimensions |
| Weight |
70 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Relative humidity |
5 - 85% |
| Packaging content |
| Manual |
Y |
| Drivers included |
Y |
| Performance |
| Chipset |
Prolific - PL-2303 |
| Data bits |
4,5,6,7,8 |
| Stop bits |
1,1.5,2 |
| Flow Control type |
N, XON/XOFF |
| Baud rate |
230.4 Kbit/s |
| Parity bit |
Even, Mark, N, Odd, Space |
| FIFO (First In, First Out) |
512 B |
| Compatible operating systems |
- Windows PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10
- Windows Server 2003, 2008 R2, 2012, 2016, 2019
- Mac OS X 10.6 - 10.14
- Linux 2.4.x to 4.11.x LT |
| Product colour |
Grey |
| Housing material |
Plastic |
| Certification |
CE |
| Design |
| Colour of product |
Grey |
| Material |
Plastic |
| Cable length |
0.9 m |
| Product colour |
Grey |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging data |
| Package width |
143 mm |
| Package depth |
172 mm |
| Package height |
32 mm |
| Package weight |
143 g |
| Features |
| Product colour |
Grey |
| Cable length |
0.9 m |
| Connector 1 |
USB 2.0 |
| Connector 2 |
DB9 |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Weight |
70 g |
| Certification |
CE |
Features
StarTech.com USB to RS232 DB9/DB25 Serial Adapter Cable - M/M. Product colour: Grey, Cable length: 0.9 m, Connector 1: USB 2.0. Package width: 143 mm, Package depth: 172 mm, Package height: 32 mm
Product Description
The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.
A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- This versatile device ships with a 9-pin connector, and a 25-pin RS232 adapter for a variety of connection options
- Integrated 3ft cable allows you to connect directly to your serial devices
- Plug-and-Play/Hot-swap support enables you to add and remove this adapter without having to reboot the computer
