Stock Status: 1x unit in stock
USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows

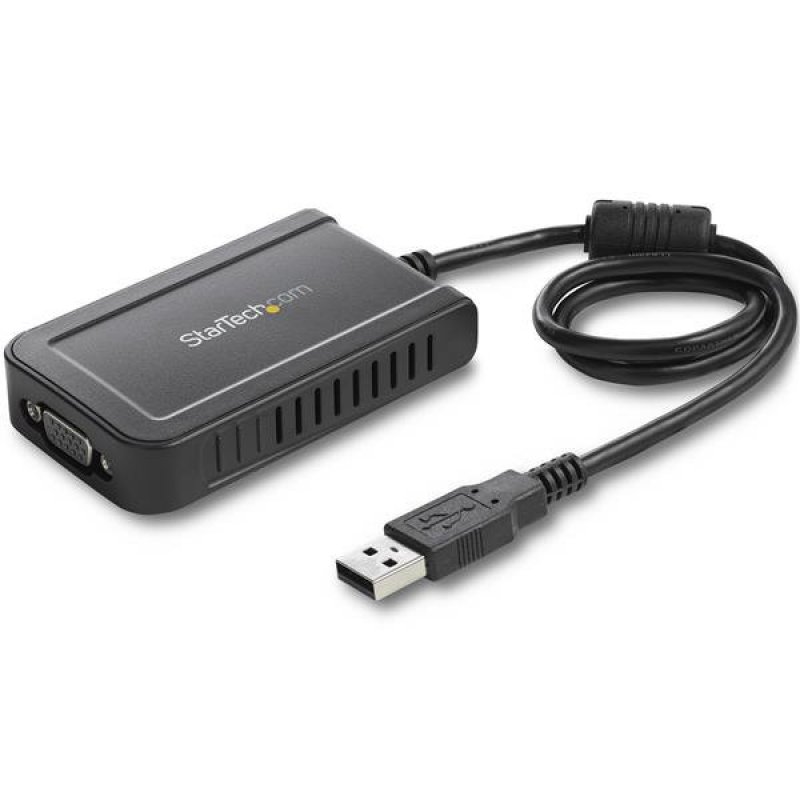

The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port.
A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.
Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
52.5 mm |
| Depth |
88 mm |
| Height |
18 mm |
| Weight |
94 g |
| USB cable length |
0.5 m |
| Performance |
| USB version |
2.0 |
| DVI output |
No |
| HDMI output |
No |
| DisplayPort output |
No |
| Number of displays supported |
1 |
| USB connector type |
USB Type-A |
| VGA (D-Sub) output |
Yes |
| Internal memory |
32 MB |
| Maximum resolution |
1920 x 1200 pixels |
| Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (H |
| Chipset |
Trigger - T2-285A |
| USB pass-through |
No |
| Certification |
CE, FCC, RoHS |
| Packaging content |
| Drivers included |
Yes |
| Manual |
Yes |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, W |
| Design |
| Product colour |
Black |
| Integrated USB cable |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 55 °C |
| Storage temperature (T-T) |
-25 - 75 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Packaging data |
| Package width |
145 mm |
| Package depth |
210 mm |
| Package height |
40 mm |
| Package weight |
247 g |
Features
StarTech.com USB to VGA Adapter - 1920x1200. USB connector type: USB Type-A, Internal memory: 32 MB, Maximum resolution: 1920 x 1200 pixels. Product colour: Black. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 52.5 mm, Depth: 88 mm, Height: 18 mm. Package width: 145 mm, Package depth: 210 mm, Package height: 40 mm
Product Description
USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows
The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port.
A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.
Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
