Stock Status: 1x unit in stock
Dual 4K60 | DisplayPort and/or HDMI | USB-IF Certified | 3x USB-A | 1x USB-C | Mac, Windows & Chrome OS | Lock Slot

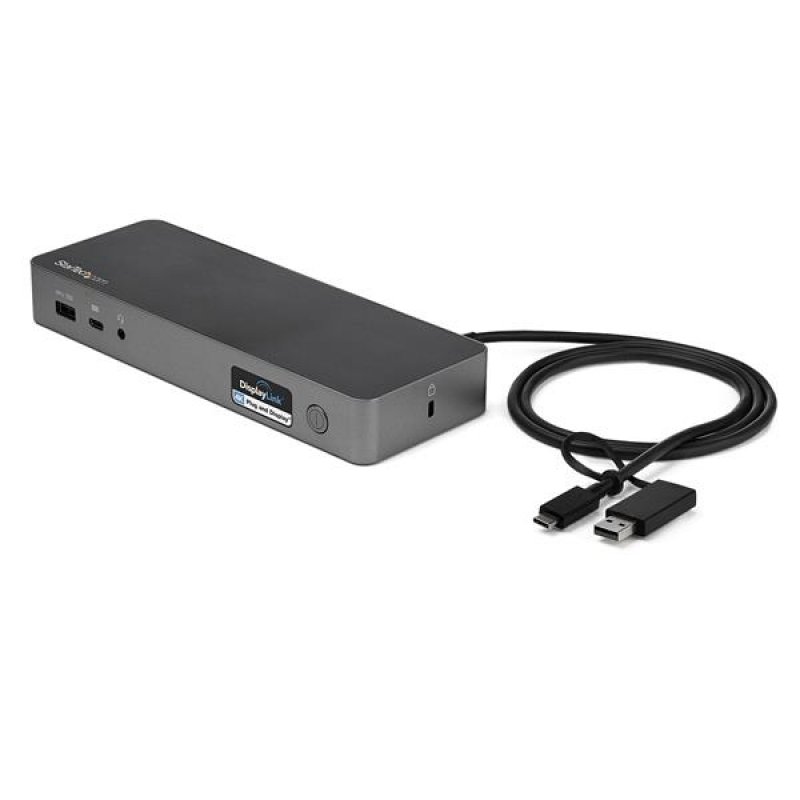

Transition from the legacy USB-A (USB 3.0) to the new USB-C with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 100W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.
The Uniquely Universal Host Cable
The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.
100W Power Delivery
For high performance laptops that require more charging power, the dock powers and charges your laptop as you work with 100W PD for faster charging, using the 170W power adapter - all through a single cable.
Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.
Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
Single 5K DisplayPort* | Up to 5120 × 2880
*Requires monitor support for 5K using two DP ports
Certified for Universal Compatibility & Reliability
This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.
Easy and Convenient Setup
For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).
The Connections You Need
Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need. Connected Device Transparency with the StarTech.com MAC Address Changer Utility
The DK30C2DPEPUE, includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer’s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.The IT Pro’s Choice Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
DK30C2DPEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- HYBRID DOCK: Universal docking station works with USB Type-C, Thunderbolt 3 & USB Type-A laptop computers, using a 2-in-1 USB-C/USB-A 3.1 Gen 1 cable, ideal for hoteling or shared workspace setup
- 100W POWER DELIVERY 3.0: Power & charge USB-C & Thunderbolt 3 workstation laptops & ultrabooks incl. Lenovo X1, Thinkpad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, Zbook & MacBook Pro 16
- GUARANTEED COMPATIBILITY: USB-C & USB-A hybrid dock is USB-IF, VESA & DisplayLink certified for max performance & universal compatibility w/ Dell, HP, Lenovo & Apple where mixed laptop brands deployed
Specs
| Weight & dimensions |
| Width |
80 mm |
| Depth |
220 mm |
| Height |
30 mm |
| Weight |
280 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
2 |
| Headphone outputs |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| DisplayPorts quantity |
2 |
| Combo headphone/mic port |
Y |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Y |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
2.5 A |
| Power supply |
100 W |
| Output voltage |
20 V |
| Output current |
8.5 A |
| Power consumption (typical) |
170 W |
| Power plug type |
Type N |
| Compatible power plug types |
EU,UK |
| Packaging content |
| Cables included |
USB Type-A to USB Type-C |
| AC adapter included |
Y |
| Quick start guide |
Y |
| Other features |
| Chipset |
DisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Full duplex |
Y |
| 10G support |
N |
| Performance |
| Product colour |
Black, Grey |
| Card reader integrated |
N |
| Data transfer rate |
5 Gbit/s |
| Maximum digital resolution |
5120 x 2880 pixels |
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
| On/off switch |
Y |
| UASP support |
Y |
| Housing material |
Plastic |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH |
| Technical details |
| Sustainability certificates |
RoHS |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Ente |
| Mac compatibility |
Y |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina |
| Other operating systems supported |
Chrome |
| Packaging data |
| Package width |
155 mm |
| Package depth |
270 mm |
| Package height |
90 mm |
| Package weight |
1.3 kg |
| Logistics data |
| Quantity per master (outer) case |
6 pc(s) |
| Master (outer) case width |
28 cm |
| Master (outer) case length |
33.5 cm |
| Master (outer) case height |
30.2 cm |
| Products per master (outer) case |
6 pc(s) |
| Sustainability |
| Sustainability certificates |
RoHS |
