Stock Status: 1x unit in stock
Convert a Composite or S-Video Signal and the Accompanying Audio to HDMI

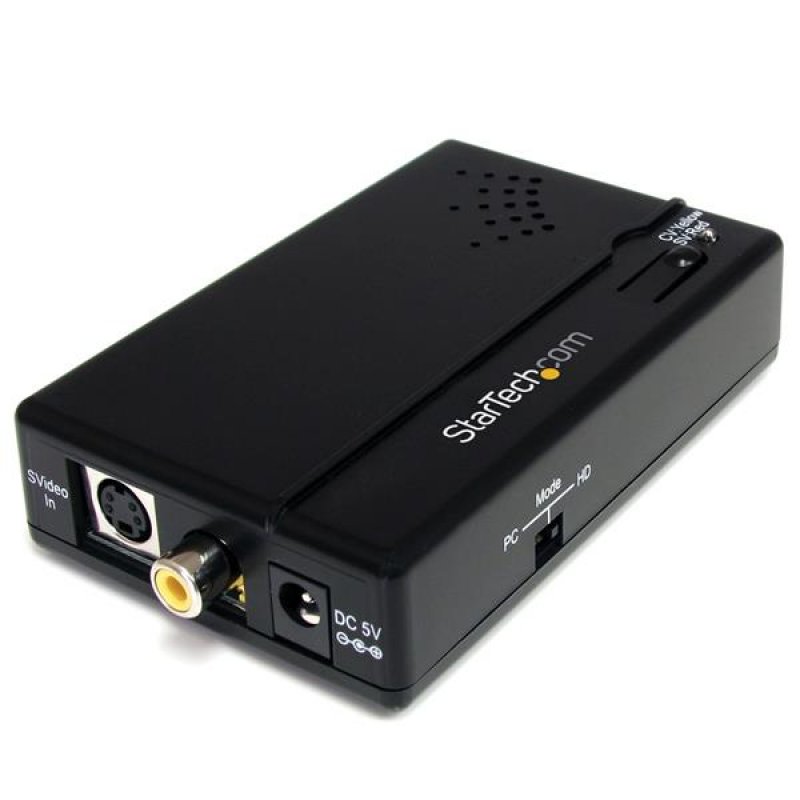

The VID2HDCON Composite and S-Video to HDMI Video Converter (with Audio) lets you connect an S-Video or Composite device, along with supporting 3.5mm audio, to your HDMI monitor or television.
Equipped with convenient selector switches for easy configuration, the S-Video/Composite to HDMI converter is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 1600x1200 (PC) or 1080p (TV) to seamlessly integrate with almost any display.
The converter features an integrated 3.5mm audio connection that enables sending the output through a single HDMI cable to your destination display, avoiding the hassle of running a separate audio cable.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Support for output resolutions from 480i to 1080p allow for simple conversion to suit almost any output display
- Pure hardware design requiring no software or drivers for use which makes for a quick plug-and-play installation
Specs
| Weight & dimensions |
| Width |
163 mm |
| Depth |
164 mm |
| Height |
34 mm |
| Weight |
79 g |
| Power |
| External power adapter |
Y |
| Input voltage |
100 - 240 V |
| Operating voltage |
5 V |
| Operating current |
1.2 A |
| Power consumption (typical) |
2.5 W |
| Input current |
0.3 A |
| Power plug type |
Type M |
| Packaging data |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Package width |
155 mm |
| Package depth |
124 mm |
| Package height |
56 mm |
| Package weight |
310 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Video |
| Maximum video resolution |
1600 x 1200 pixels |
| Video resolutions |
1024 x 768,1280 x 1024,1600 x 1200 |
| Analog signal format system |
NTSC,PAL |
| Ports & interfaces |
| Host interface |
Composite, S-Video |
| Output interface |
HDMI |
| 3.5 mm connector |
Y |
| Technical details |
| Sustainability certificates |
RoHS |
| Features |
| Converter type |
Active video converter |
| Product colour |
Black |
| Housing material |
Plastic |
| Certification |
CE, FCC, REACH |
Features
StarTech.com Composite and S-Video to HDMI Converter with Audio. Converter type: Active video converter, Product colour: Black, Housing material: Plastic. Maximum video resolution: 1600 x 1200 pixels, Video resolutions: 1024 x 768,1280 x 1024,1600 x 1200, Analog signal format system: NTSC,PAL. Host interface: Composite, S-Video, Output interface: HDMI. Input voltage: 100 - 240 V, Operating voltage: 5 V, Operating current: 1.2 A. Width: 163 mm, Depth: 164 mm, Height: 34 mm
Product Description
Convert a Composite or S-Video Signal and the Accompanying Audio to HDMI
The VID2HDCON Composite and S-Video to HDMI Video Converter (with Audio) lets you connect an S-Video or Composite device, along with supporting 3.5mm audio, to your HDMI monitor or television.
Equipped with convenient selector switches for easy configuration, the S-Video/Composite to HDMI converter is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 1600x1200 (PC) or 1080p (TV) to seamlessly integrate with almost any display.
The converter features an integrated 3.5mm audio connection that enables sending the output through a single HDMI cable to your destination display, avoiding the hassle of running a separate audio cable.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Support for output resolutions from 480i to 1080p allow for simple conversion to suit almost any output display
- Pure hardware design requiring no software or drivers for use which makes for a quick plug-and-play installation
