Stock Status: 1x unit in stock

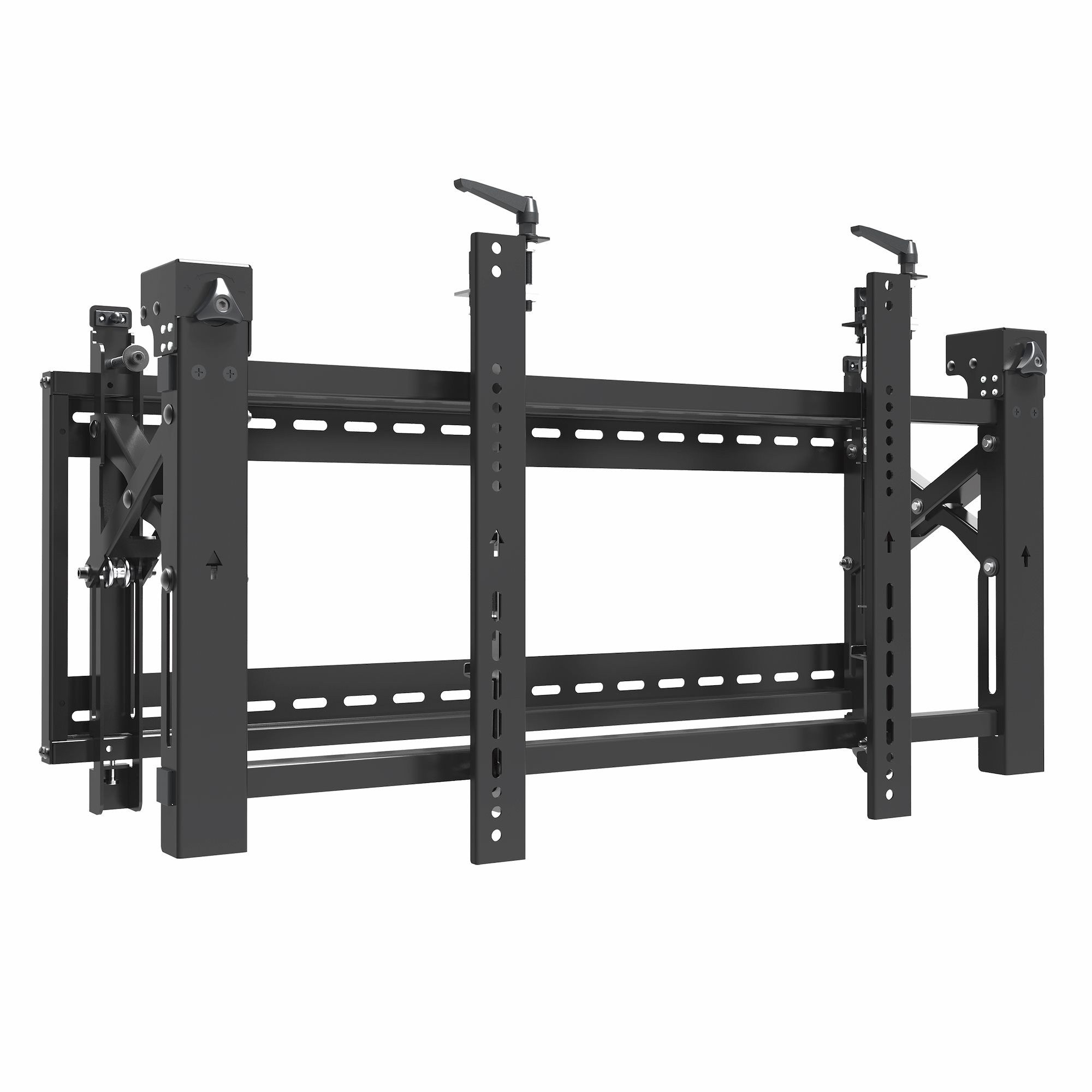

TV Video Wall System | Steel | Anti-Theft | For 45" to 70" Displays
This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall.
A Versatile Video Wall Mounting System
Engineered with heavy-duty steel, the video-wall mount securely supports 45" to 70" displays, weighing up to 154 lb. (70 kg).
Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It’s the ideal solution for public, business and commercial displays and includes a theft deterrence feature (padlock required).
Align Your Displays Seamlessly
With its unique pop-out design, the video wall mount helps you align your displays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when required.
The video-wall mount features 6 points of micro-adjustment, with vertical, tilt and swivel adjustments, to provide exact display alignment and an optimum viewing angle. You can tilt your display +3 / -5 degrees, adjust the swivel angle +1.2 / - 1.2 degrees, and rotate the display +3 / - 3 degrees. The video-wall mount also features lateral shift brackets, making it easy to move the display to the left or right for ideal alignment in your video wall.
Easy Installation and Maintenance
This video-wall mounting system is designed for easy set-up and maintenance. The pop-out design also assists in installation and maintenance, plus a convenient kickstand allows you to tilt the display up to 12 degrees giving you extra room when adjusting cables or accessing ports.
The VIDWALLMNT is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Create an impressive video wall with this flat-screen TV mount, supporting a 45" to 70" display (theft deterrent design); Heavy-duty steel construction supports displays up to 154 lb. (70 kg)
- Pop-out design extends up to 12" (306 mm) to give rear-screen access for display adjustment
- 6 points of micro-adjustment (vertical, tilt and swivel) for exact display alignment
Specs
| Weight & dimensions |
| Width |
306 mm |
| Depth |
934 mm |
| Depth (max) |
93.4 cm |
| Height |
483 mm |
| Weight |
13.5 kg |
| Ergonomics |
| Tilt angle range |
-5 - 3° |
| Swivel angle range |
-1.2 - 1.2° |
| Distance to the wall (min) |
14.2 cm |
| Distance to the wall (max) |
30.6 cm |
| Mounting |
| Maximum weight capacity |
70 kg |
| Maximum screen size |
177.8 cm (70") |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
600 x 400 mm |
| Minimum screen size |
114.3 cm (45") |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported |
1 |
| Design |
| Product colour |
Black |
| Housing material |
Aluminium, Steel |
| Accepts padlock |
Y |
| Certification |
CE, REACH |
| Packaging content |
| Manual |
Y |
| Screws included |
Y |
| Number of screws |
26 |
| Wrench included |
Y |
| Wrench type |
Hexagonal wrench |
| Washers included |
Y |
| Number of washers included |
6 |
| Spacer included |
Y |
| Number of spacers included |
12 |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging data |
| Package width |
510 mm |
| Package depth |
1000 mm |
| Package height |
209 mm |
| Package weight |
16.4 kg |
| Logistics data |
| Master (outer) case width |
510 mm |
| Master (outer) case length |
1010 mm |
| Master (outer) case height |
209 mm |
| Products per master (outer) case |
1 pc(s) |
Features
StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment. Maximum weight capacity: 70 kg, Minimum screen size: 114.3 cm (45"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 - 3°. Product colour: Black
Product Description
TV Video Wall System | Steel | Anti-Theft | For 45" to 70" Displays
This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall.
A Versatile Video Wall Mounting System
Engineered with heavy-duty steel, the video-wall mount securely supports 45" to 70" displays, weighing up to 154 lb. (70 kg).
Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It’s the ideal solution for public, business and commercial displays and includes a theft deterrence feature (padlock required).
Align Your Displays Seamlessly
With its unique pop-out design, the video wall mount helps you align your displays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when required.
The video-wall mount features 6 points of micro-adjustment, with vertical, tilt and swivel adjustments, to provide exact display alignment and an optimum viewing angle. You can tilt your display +3 / -5 degrees, adjust the swivel angle +1.2 / - 1.2 degrees, and rotate the display +3 / - 3 degrees. The video-wall mount also features lateral shift brackets, making it easy to move the display to the left or right for ideal alignment in your video wall.
Easy Installation and Maintenance
This video-wall mounting system is designed for easy set-up and maintenance. The pop-out design also assists in installation and maintenance, plus a convenient kickstand allows you to tilt the display up to 12 degrees giving you extra room when adjusting cables or accessing ports.
The VIDWALLMNT is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Create an impressive video wall with this flat-screen TV mount, supporting a 45" to 70" display (theft deterrent design); Heavy-duty steel construction supports displays up to 154 lb. (70 kg)
- Pop-out design extends up to 12" (306 mm) to give rear-screen access for display adjustment
- 6 points of micro-adjustment (vertical, tilt and swivel) for exact display alignment
