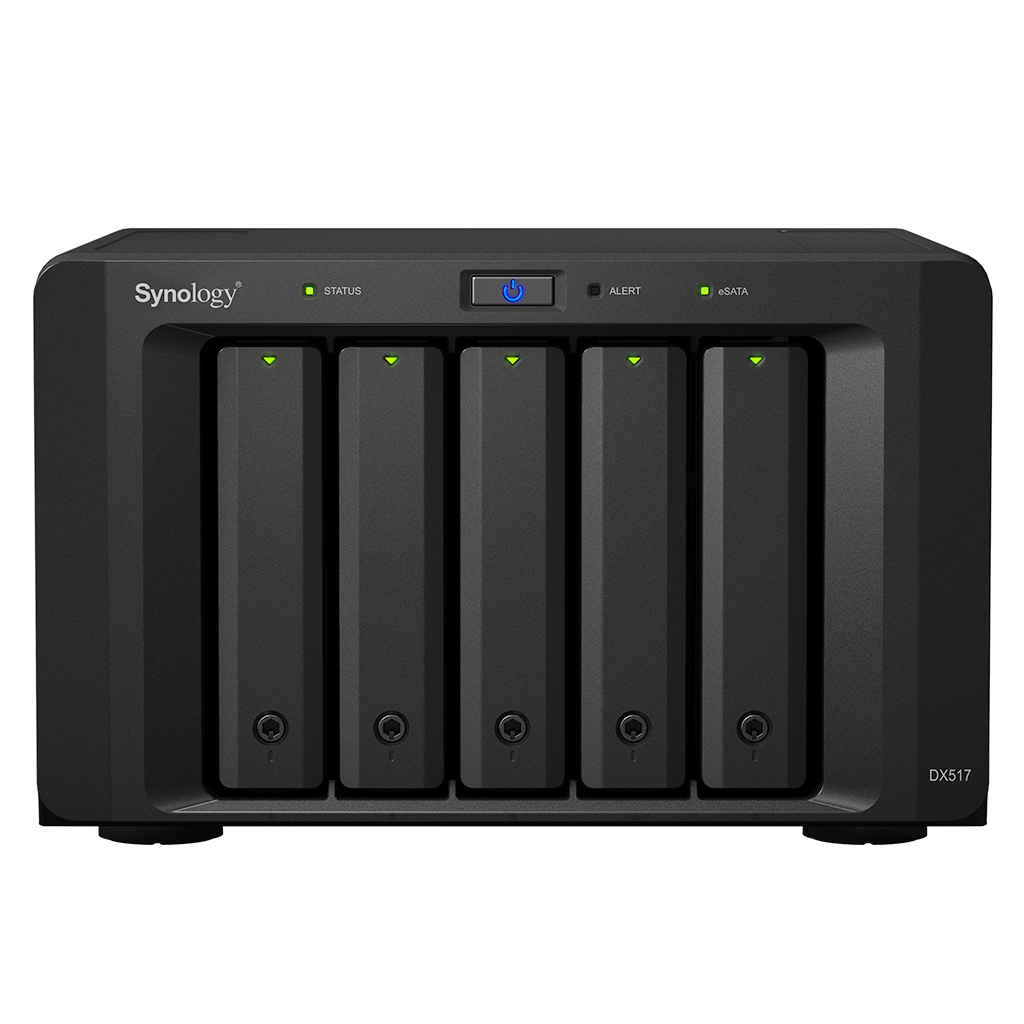

Effortless capacity expansion for Synology DiskStation solutions on-the-fly.
5-bay 3.5”/2.5” SATA expansion
Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5” and 3.5” SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.
Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.
Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.
Specs
| Weight & dimensions |
| Width |
248 mm |
| Depth |
233 mm |
| Height |
157 mm |
| Weight |
3.91 kg |
| Power |
| Power supply unit (PSU) capacity |
200 W |
| Number of power supply units |
1 |
| Power consumption (typical) |
29.9 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Ports & interfaces |
| USB connectivity |
N |
| eSATA ports quantity |
1 |
| Host ports |
1 |
| Storage |
| Storage drives installed |
Y |
| Installed storage drive type |
HDD |
| Number of storage drives installed |
5 |
| Total installed storage capacity |
60 TB |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
5 |
| Storage drive interface |
Serial ATA |
| Storage drive capacity |
12000 GB |
| Storage drive size |
2.5/3.5" |
| Hot-swap drive bays |
Y |
| Packaging content |
| Cables included |
AC, eSATA |
| Performance |
| Device class |
Small & Medium Business |
| Design |
| Chassis type |
Desktop |
| Internal |
N |
| Product colour |
Black |
| LED indicators |
Alarm, Power, Status |
| Number of fans |
2 fan(s) |
| Noise level |
21.5 dB |
| RoHS compliance |
Y |
| Certification |
FCC B, CE B, BSMI B |
| Technical details |
| Sustainability certificates |
RoHS |
| Harmonized System (HS) code |
84717020 |
| Logistics data |
| Harmonized System (HS) code |
84717020 |
Features
Synology DX517. Total installed storage capacity: 60 TB, Installed storage drive type: HDD, Storage drive interface: Serial ATA, Storage drive size: 2.5/3.5". Chassis type: Desktop. Device class: Small & Medium Business. Number of storage drives supported: 5, Supported storage drive types: HDD & SSD. Width: 248 mm, Depth: 233 mm, Height: 157 mm, Weight: 3.91 kg. Product colour: Black
Product Description
Effortless capacity expansion for Synology DiskStation solutions on-the-fly.
5-bay 3.5”/2.5” SATA expansion
Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5” and 3.5” SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.
Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.
Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.
