Stock Status: 1x unit in stock
An all-in-one edge storage solution

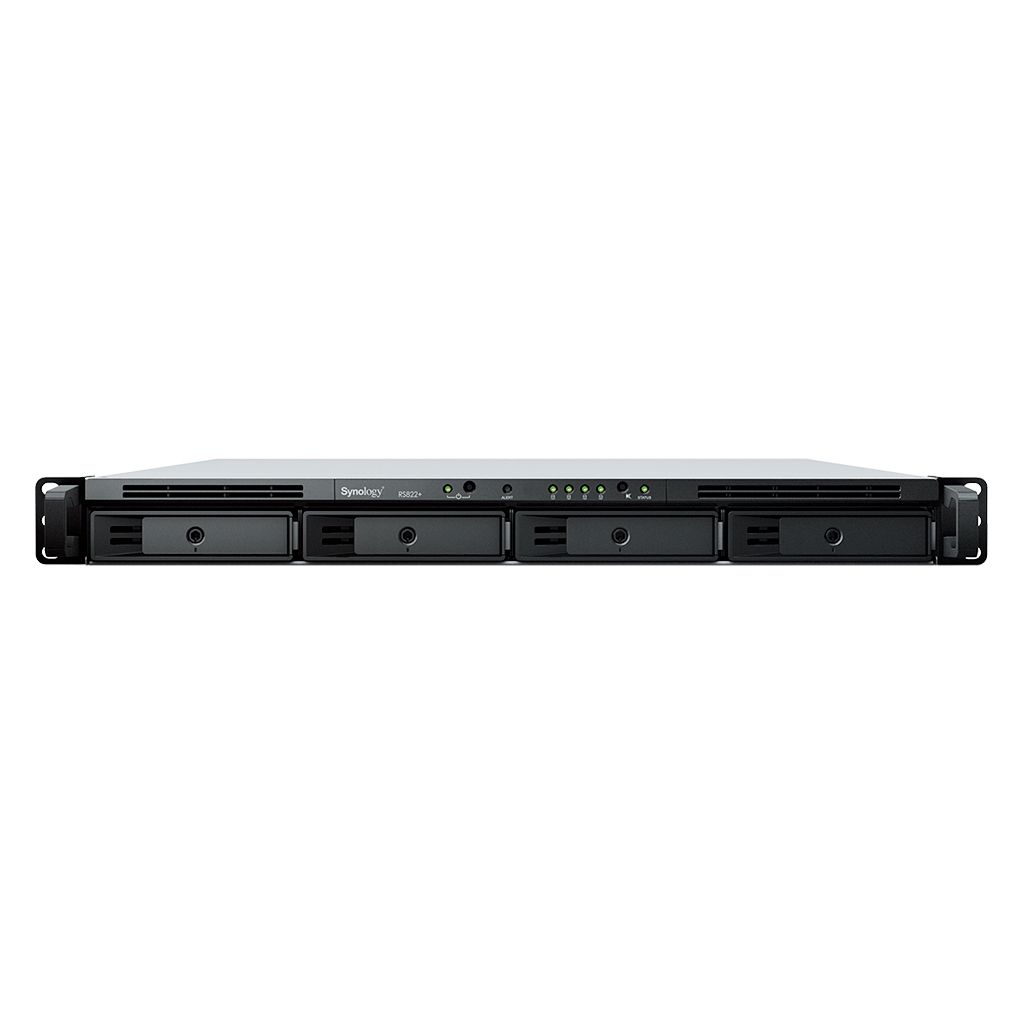

The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Built for reliability
RS822+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
All-in-one data management platform
The RS822+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
Specs
| Weight & dimensions |
| Width |
430.5 mm |
| Depth |
457.6 mm |
| Height |
44 mm |
| Weight |
6.4 kg |
| Power |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
8 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 5000 m |
| Networking |
| Wake-on-LAN ready |
Y |
| Supported network protocols |
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP) |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| eSATA ports quantity |
1 |
| PCI Express x8 (Gen 3.x) slots |
1 |
| Memory |
| Internal memory |
2 GB |
| Internal memory type |
DDR4 |
| Maximum RAM supported |
32 GB |
| Memory form factor |
SO-DIMM |
| Certificates |
| Certification |
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL |
| Processor |
| Processor family |
AMD Ryzen |
| Processor manufacturer |
AMD |
| Processor model |
V1500B |
| Processor frequency |
2.2 GHz |
| Processor cores |
4 |
| Processor threads |
8 |
| Storage |
| Storage drives installed |
N |
| Number of storage drives supported |
4 |
| Installed storage drive type |
N |
| Supported storage drive types |
HDD & SSD |
| RAID support |
Y |
| Supported storage drive interfaces |
Serial ATA |
| Maximum supported storage capacity |
108 TB |
| RAID levels |
0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays |
Y |
| Supported file systems |
BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Packaging content |
| Cables included |
AC |
| Performance |
| Type |
NAS |
| Backup function |
Y |
| Access Control List (ACL) |
Y |
| Reset button |
Y |
| On/off switch |
Y |
| Design |
| Number of fans |
3 fan(s) |
| LED indicators |
Alarm, Power, Status |
| Software |
| Operating system installed |
DSM |
Features
Synology RackStation RS822+. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Maximum supported storage capacity: 108 TB. Processor family: AMD Ryzen, Processor manufacturer: AMD, Processor model: V1500B. Internal memory: 2 GB, Internal memory type: DDR4, Maximum RAM supported: 32 GB. Supported network protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP). Number of fans: 3 fan(s), LED indicators: Alarm, Power, Status
Product Description
An all-in-one edge storage solution
The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Built for reliability
RS822+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
All-in-one data management platform
The RS822+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
