Stock Status: 1x unit in stock
Accommodate massive storage growth
Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units.1 Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)’s online volume expansion and powerful volume management options.
Easy setup and management
Connect the RX1222sas through the included expansion cable and start managing the additional storage in minutes with Storage Manager and other intuitive tools in Synology DSM. Online volume expansion enables you to add a new volume or expand RAID volumes without reformatting drives.
Fast and stable with Synology drives
Achieve higher levels of reliability with Synology’s SAS and SATA enterprise drives. Backed by hundreds of thousands of hours of rigorous testing, they ensure maximum integration and optimal performance when paired with your Synology deployment.
Built with service uptime in mind
RX1222sas’s hot-swappable drive trays, fans, and power supplies reduce the impact of maintenance on service availability, while the redundant power supply units keep your system online even in case one power source fails.
Specs
| Weight & dimensions |
| Width |
724 mm |
| Depth |
482 mm |
| Height |
88 mm |
| Weight |
13.5 kg |
| Ports & interfaces |
| USB connectivity |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage |
| Storage drive size |
2.5/3.5" |
| Supported storage drive interfaces |
SAS, Serial ATA, Serial ATA II, Serial ATA III |
| Number of storage drives supported |
12 |
| Hot-swap |
Y |
| Maximum storage capacity |
192 TB |
| Packaging content |
| Cables included |
AC |
| Manual |
Y |
| Performance |
| Noise level |
54.5 dB |
| Design |
| Product type |
HDD/SSD enclosure |
| Product colour |
Black |
| Rack mounting |
Y |
| Rack capacity |
2U |
| Number of fans |
4 fan(s) |
| Fan diameter |
8 cm |
| Certification |
FCC
CE
BSMI
UKCA
EAC
VCCI
RCM
KC |
| Technical details |
| Sustainability certificates |
RoHS |
| Power |
| Power source type |
AC |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
Features

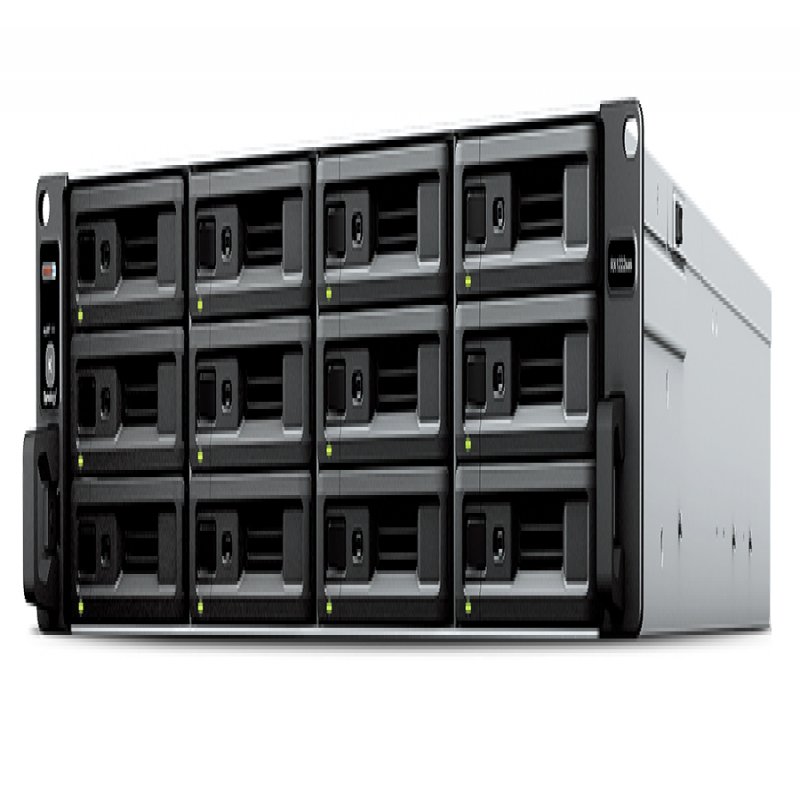

Synology RX1222sas. Product type: HDD/SSD enclosure. Number of storage drives supported: 12, Storage drive size: 2.5/3.5", Supported storage drive interfaces: SAS, Serial ATA, Serial ATA II, Serial ATA III, Maximum storage capacity: 192 TB, Hot-swap. Rack mounting, Rack capacity: 2U, Product colour: Black
Product Description
Accommodate massive storage growth
Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units.1 Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)’s online volume expansion and powerful volume management options.
Easy setup and management
Connect the RX1222sas through the included expansion cable and start managing the additional storage in minutes with Storage Manager and other intuitive tools in Synology DSM. Online volume expansion enables you to add a new volume or expand RAID volumes without reformatting drives.
Fast and stable with Synology drives
Achieve higher levels of reliability with Synology’s SAS and SATA enterprise drives. Backed by hundreds of thousands of hours of rigorous testing, they ensure maximum integration and optimal performance when paired with your Synology deployment.
Built with service uptime in mind
RX1222sas’s hot-swappable drive trays, fans, and power supplies reduce the impact of maintenance on service availability, while the redundant power supply units keep your system online even in case one power source fails.
