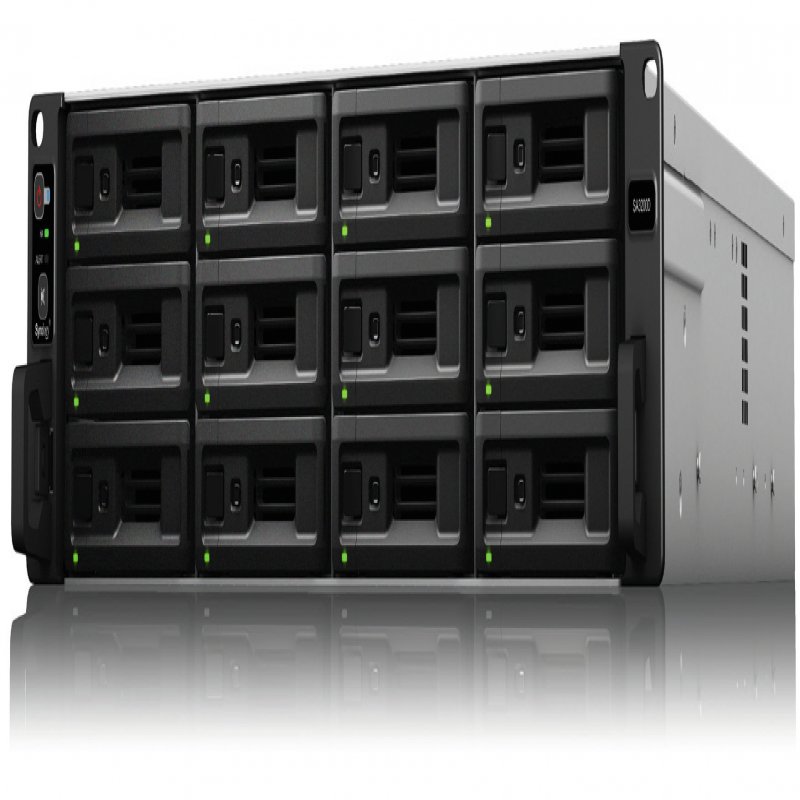

Synology SA3200D DC 12 Bay Rackmount SA3200D - CMS01
[SA3200D]

Name: Synology SA3200D DC 12 Bay Rackmount SA3200D - CMS01
Brand: SYNOLOGY
SKU: SA3200D
Price: 5542.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: SA3200D

Manufacturer: SYNOLOGY

Condition: New

Short Description:

Synology SA3200D DC 12 Bay Rackmount SA3200D

£5,542.00
£6,650.40 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

Maximize Service Availability, Minimize Downtime
Synology SA3200D features a dual controller architecture to ensure operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline. The hardware redundancy mechanism leverages controllers, power
supplies, and fans to prevent a single point of failure. Powered by the intuitive and feature-rich
operating system DiskStation Manager (DSM), SA3200D provides comprehensive protection for network, file services, and applications.
Designed with High Availability and Scalability
Synology SA3200D is a cost-effective yet highly available data management solution for enterprises, with a competitive priceperformance ratio of $0.05 per gigabyte. Underneath the 2U chassis are dual controller modules in an active-passive architecture, each connected to the other by the reliable, high-speed Non-Transparent Bridge (NTB) with low latency. Service continuity is also backed up by the hardware redundancy mechanism of modularized power supplies and fans to prevent a single point of failure.
With SA3200D, you can start small and grow in the future. It supports up to 12 x 3.5"/2.5" SAS interface drive slots by default, and the capacity can be further scaled up to 576 TB using two RXD1219sas4 expansion units, with minimal performance impact3. Data replication is not needed for the shared storage design, saving valuable rack space and network bandwidth when compared with two devices using Synology High Availability.
Real-Time Protection with Automatic Failover
With an active-passive design consisting of dual controller modules and the built-in Synology High Availability (SHA) service, SA3200D is built to provide a real-time, system-level protection to maximize service availability. It actively monitors network status and critical file services of CIFS, iSCSI, AFP, FTP, NFS, and Synology Directory Server. Once a controller module or the service is unavailable, the system will fail over automatically within a minute1 to minimize system interruption and ensure service continuity.
Easy to Deploy, Easy to Manage
SA3200D is designed to help IT administrators easily deploy and manage a highly available data management infrastructure. The system features straightforward, wizard-based GUI setup processes that allow you to build up a highly available service environment within minutes. Service status monitoring is made easy and intuitive.
Powered by DiskStation Manager (DSM), an intuitive, user-friendly webbased operating system across Synology hardware platforms, SA3200D provides IT administrators a unified user experience without the need to adapt to different user interfaces and complex configuration settings. With a full suite of software applications supported in the Package Center, you can download and install a variety of packages including backup, data protection, and virtualization.
Built for Your SAN Storage Needs
Synology SA3200D provides a fully certified virtualization solution with VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack Cinder. It supports both iSCSI and NFS protocols and integrates with VMware VAAI and Microsoft ODX, allowing IT
administrators to effectively deploy and facilitate storage operations in various virtualization environments. IT administrators can efficiently manage virtualized workloads through built-in DSM features and addon plugins for VMware and Windows environments. Features including
fast clone, NFS v4.1, and thin provisioning delivers more flexibility to accommodate to administration needs.
With no additional license fees required, your virtualized workload can be further protected by a complete suite of data protection applications including Synology Snapshot Replication, Hyper Backup, and Active Backup for Business to cover various protection scenarios.
Virtualize Workloads Flexibly in a Protected Environment
Synology Virtual Machine Manager (VMM) is an intuitive hypervisor software application allowing you to easily set up virtual machines and run various operating systems, including Windows, Linux, and Virtual DSM. By integrating the computing and the storage nodes into
one system, single vendor support experience is achieved to lower the management cost.
With VMM, each virtual machine can be fully protected by a set of disaster recovery features including instant snapshot, replication, clone, and restore, safeguarding your virtual machines without additional cost.

Reviews

Specs

Weight & dimensions
Width	430.5 mm
Depth	692 mm
Height	88 mm
Weight	19.7 kg
Power
Power supply location	Built-in
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 60 °C
Operating altitude	0 - 5000 m
Networking
Ethernet LAN	Y
Wi-Fi	N
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Copper ethernet cabling technology	10GBASE-T
iSCSI support	Y
Supported network protocols	SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
USB port	N
Memory
Internal memory	8 GB
Internal memory type	DDR4
Maximum RAM supported	64 GB
Memory form factor	UDIMM
Certificates
RoHS compliance	Y
Processor
Processor family	Intel® Xeon® D
Processor model	D-1521
Processor frequency	2.4 GHz
Processor boost frequency	2.7 GHz
Processor cores	4
Processor manufacturer	Intel
Processor threads	8
Processor cache	6 MB
CPU configuration (max)	1
PCI Express configurations	1x16,1x4,1x8
PCI Express slots version	2.0,3.0
Processor code	SR2DF
Processor codename	Broadwell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon D-1500
Processor socket	BGA 1667
Scalability	1S
Stepping	V2
Thermal Design Power (TDP)	45 W
Maximum internal memory supported by processor	128 GB
Conflict-Free processor	Y
Other features
Processor ARK ID	91202
Storage
Storage drives installed	N
Installed storage drive type	N
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
RAID support	Y
Hot-swap drive bays	Y
Supported storage drive interfaces	Serial Attached SCSI (SAS)
Storage drive sizes supported	2.5,3.5"
RAID levels	0,1,5,6,10,JBOD
Supported file systems	BTRFS,FAT,HFS+,NTFS,exFAT,ext3,ext4
Packaging content
Cables included	AC
Quick installation guide	Y
Performance
Type	NAS
Device class	Small & Medium Business
Backup function	Y
Backup features	Cloud, iSCSI LUN
Multilingual support	Y
Number of users	16000 user(s)
Snapshot	Y
Security algorithms	AES
Access Control List (ACL)	Y
Web-based management	Y
Reset button	Y
On/off switch	Y
Built-in FTP server	Y
Browser supported	Chrome, Firefox, Edge, Internet Explorer, Safari, Chrome
Password authentication	Y
Design
Chassis type	Rack (2U)
Cooling type	Active
Product colour	Black, Grey
Number of fans	2 fan(s)
Fan diameter	6 cm
Fan diameter 2	6 cm
Technical details
Sustainability certificates	RoHS
Processor special features
Embedded options available	N
Enhanced Intel SpeedStep Technology	Y
Execute Disable Bit	Y
Idle States	Y
Intel 64	Y
Intel Enhanced Halt State	Y
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Y
Intel TSX-NI	Y
Intel TSX-NI version	1.00
Intel Virtualization Technology (VT-x)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel® Hyper Threading Technology (Intel® HT Technology)	Y
Intel® OS Guard	Y
Intel® Secure Key	Y
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	32
Thermal Monitoring Technologies	Y
UART	Y
Memory types supported by processor	DDR3-SDRAM,DDR4-SDRAM
Software
Operating system installed	DiskStation Manager
Windows operating systems supported	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.
