Stock Status: 1x unit in stock
Extend your desktop with an external HDMI monitor or connect a projector or TV using the HDMI interface. The docking station supports Ultra HD 4K video transfer with a resolution of up to 3840×2160@60Hz including an audio signal.
The station also offers USB-C Power Delivery up to 100 W, which is designed to power a connected laptop or tablet using your original AC adapter. The docking station also supports charging of the connected USB mobile devices such as smartphones, e-book readers, media players, navigations and tablets.
There is also available 3x USB 3.0 port, 1x Ethernet GLAN RJ-45 port, 1x USB-C Power Delivery port, 1x Combo audio jack (headphones and microphone) 1x SD card reader and 1x microSD card reader.
Connect the docking station with a single cable (30 cm) into your computer’s USB-C or Thunderbolt 3 port and you can start using it immediately. The driver is installed automatically from the system.
This docking station is suitable for use with all laptops and other devices equipped with the USB-C connector with video transmission support (USB-C DisplayPort Alt mode). In case of incompatibility, your new i-tec product may not work properly. For details regarding your device’s USB port specifications, please refer to your laptop / tablet / smartphone manual or contact your device manufacturer’s customer support. However, even if you are not sure that your device is fully compatible after verification, please contact our technical department by writing an email to support@itecproduct.com.
Important:
If you disconnect the USB-C power adapter from the docking station, then the docking station may in some cases restart, i.e. disconnect and reconnect all connected devices.

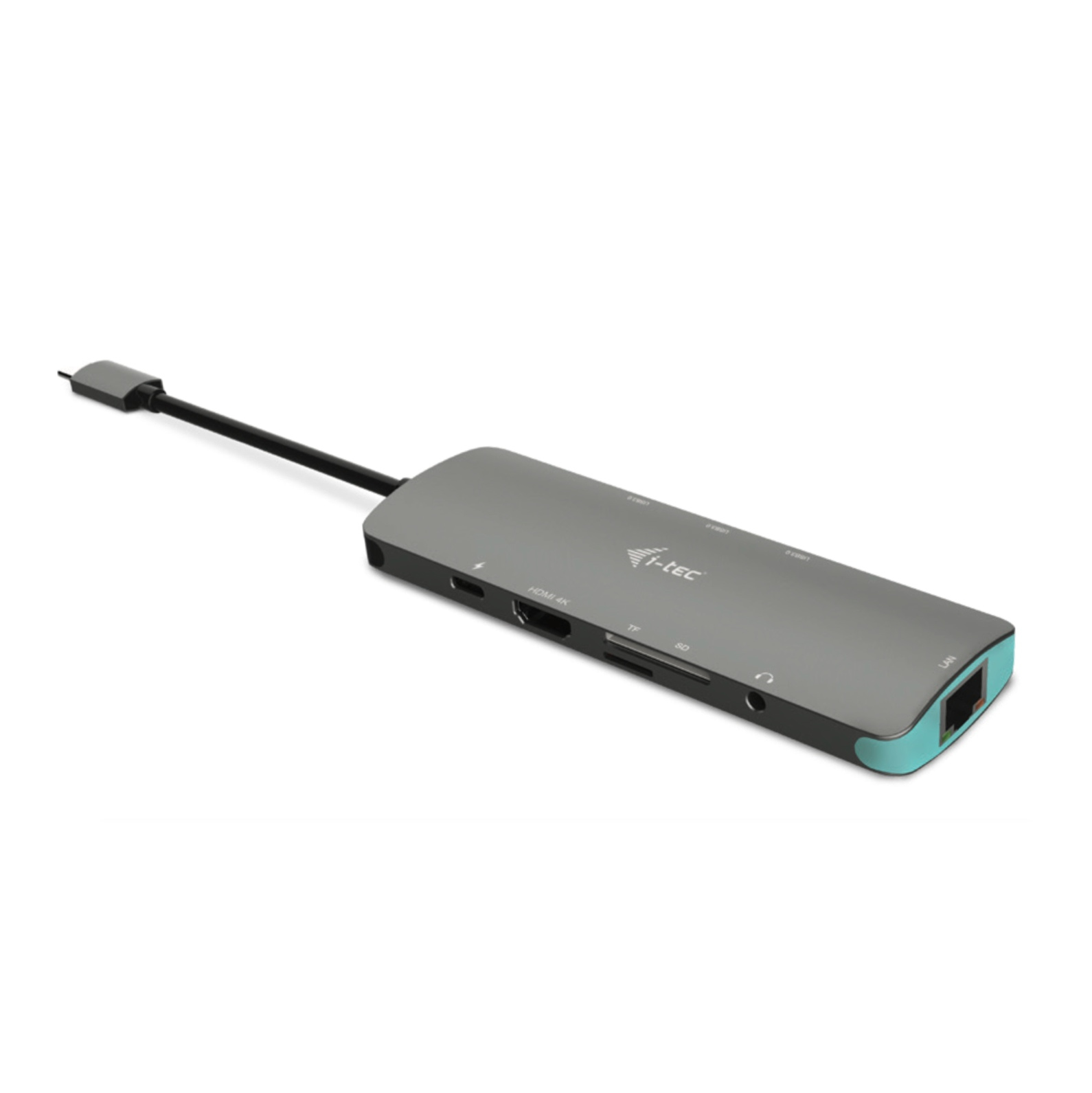

Long produkct description: i-tec USB-C Metal Nano Docking Station – 1x HDMI 4K Ultra HD 3840 x 2016 @ 60 Hz, 1x SD Card Reader, 1x microSD Card Reader, 1x Ethernet GLAN RJ-45 port, 1x Combo audio jack, 3x USB 3.0 ports, 1x USB-C Power Delivery port (100W), compatible with Thunderbolt 3
Specs
| Weight & dimensions |
| Width |
130 mm |
| Depth |
43 mm |
| Height |
15 mm |
| Weight |
85 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
| Microphone in |
No |
| Headphone outputs |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| Combo headphone/mic port |
Yes |
| Power |
| Power source type |
USB |
| Packaging content |
| Quick start guide |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
| Product colour |
Silver, Turquoise |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Maximum digital resolution |
3840 x 2160 pixels |
| Software |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
Android |
| Packaging data |
| Package width |
191 mm |
| Package depth |
97 mm |
| Package height |
23 mm |
| Package weight |
130 g |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
Features
i-tec Metal USB-C Nano Docking Station 4K HDMI LAN + Power Delivery 100 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Turquoise, Compatible memory cards: MicroSD (TransFlash), SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: USB. Other operating systems supported: Android
Product Description
Extend your desktop with an external HDMI monitor or connect a projector or TV using the HDMI interface. The docking station supports Ultra HD 4K video transfer with a resolution of up to 3840×2160@60Hz including an audio signal.
The station also offers USB-C Power Delivery up to 100 W, which is designed to power a connected laptop or tablet using your original AC adapter. The docking station also supports charging of the connected USB mobile devices such as smartphones, e-book readers, media players, navigations and tablets.
There is also available 3x USB 3.0 port, 1x Ethernet GLAN RJ-45 port, 1x USB-C Power Delivery port, 1x Combo audio jack (headphones and microphone) 1x SD card reader and 1x microSD card reader.
Connect the docking station with a single cable (30 cm) into your computer’s USB-C or Thunderbolt 3 port and you can start using it immediately. The driver is installed automatically from the system.
This docking station is suitable for use with all laptops and other devices equipped with the USB-C connector with video transmission support (USB-C DisplayPort Alt mode). In case of incompatibility, your new i-tec product may not work properly. For details regarding your device’s USB port specifications, please refer to your laptop / tablet / smartphone manual or contact your device manufacturer’s customer support. However, even if you are not sure that your device is fully compatible after verification, please contact our technical department by writing an email to support@itecproduct.com.
Important:
If you disconnect the USB-C power adapter from the docking station, then the docking station may in some cases restart, i.e. disconnect and reconnect all connected devices.
Long produkct description: i-tec USB-C Metal Nano Docking Station – 1x HDMI 4K Ultra HD 3840 x 2016 @ 60 Hz, 1x SD Card Reader, 1x microSD Card Reader, 1x Ethernet GLAN RJ-45 port, 1x Combo audio jack, 3x USB 3.0 ports, 1x USB-C Power Delivery port (100W), compatible with Thunderbolt 3
