Stock Status: 1x unit in stock

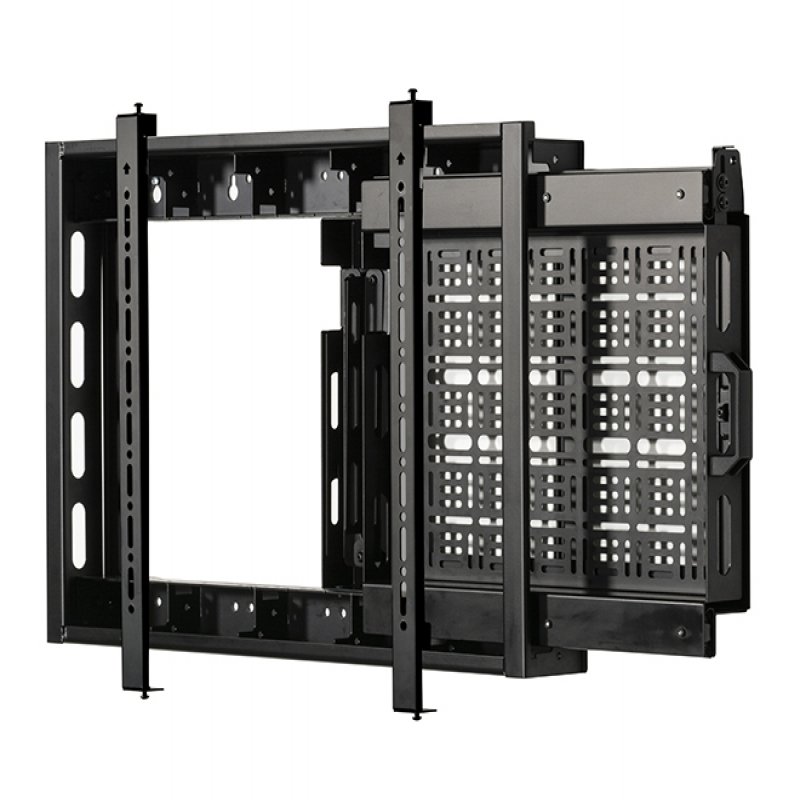

The BT7883 is a screen mounting solution with an integrated slide-out tray for storing AV equipment behind the screen. Featuring a quick release equipment interface plate which can be separated from the mount, AV equipment can be easily added or removed from the install without needing to remove the screen first. The tray mechanism is tool-less for ease and speed of use, with the option to add a padlock (not included) to help prevent unauthorised access to the equipment. To ensure cables do not get tangled or pinched when the tray is opened and closed, an integrated cable management track moves in unison with the tray. The BT7883 is suitable for wall mounting as well as to B-Tech’s System 2 poles and System X/Mode-AL columns.
Specs
| Weight & dimensions |
| Width |
335 mm |
| Depth (max) |
6.5 cm |
| Height |
424 mm |
| Mounting |
| Number of displays supported |
1 |
| Maximum screen size |
177.8 cm (70") |
| Mounting type |
Wall |
| Maximum weight capacity |
100 kg |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
600 x 400 mm |
| Minimum screen size |
81.3 cm (32") |
| Panel mounting interface |
200 x 200,600 x 400 mm |
| Ergonomics |
| Cable management |
Yes |
| Easy to adjust |
Yes |
| Distance to the wall (max) |
10 cm |
| Design |
| Product colour |
Black |
| Logistics data |
| Harmonized System (HS) code |
83024200 |
Features
B-Tech Flat Screen Wall Mount with Slide-Out AV Storage Tray (VESA 600 x 400). Maximum weight capacity: 100 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Distance to the wall (max): 10 cm. Product colour: Black
Product Description
The BT7883 is a screen mounting solution with an integrated slide-out tray for storing AV equipment behind the screen. Featuring a quick release equipment interface plate which can be separated from the mount, AV equipment can be easily added or removed from the install without needing to remove the screen first. The tray mechanism is tool-less for ease and speed of use, with the option to add a padlock (not included) to help prevent unauthorised access to the equipment. To ensure cables do not get tangled or pinched when the tray is opened and closed, an integrated cable management track moves in unison with the tray. The BT7883 is suitable for wall mounting as well as to B-Tech’s System 2 poles and System X/Mode-AL columns.
