Stock Status: 1x unit in stock

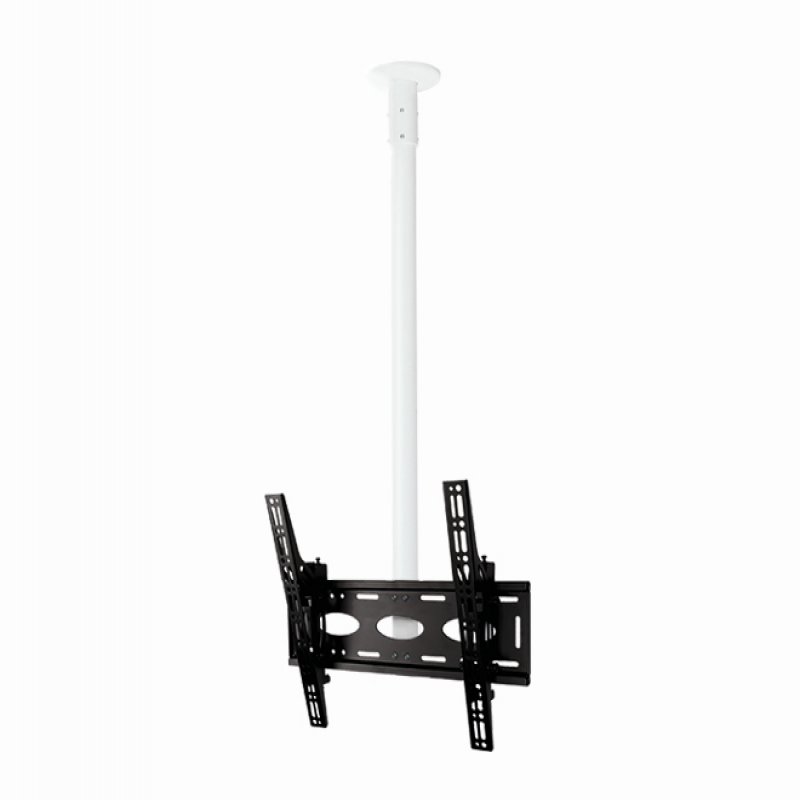

Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
Specs
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Ergonomics |
| Tilt adjustment |
Yes |
| Tilt angle range |
15 - -15° |
| Cable management |
Yes |
| Ceiling mounting tube length (max) |
100 cm |
| Mounting |
| Maximum weight capacity |
50 kg |
| Maximum screen size |
165.1 cm (65") |
| Mounting type |
Ceiling |
| Minimum VESA mount |
468 x 400 mm |
| Maximum VESA mount |
600 x 400 mm |
| Number of displays supported |
1 |
| Mounting |
Screws |
| Panel mounting interface |
600 x 400 mm |
| Design |
| Product colour |
Black, White |
| Orientation |
Landscape/Portrait |
| Easy to install |
Yes |
| Logistics data |
| Harmonized System (HS) code |
83024200 |
Features
B-Tech Universal Flat Screen Ceiling Mount with Tilt (VESA 600 x 400) - 1m Ø50mm Pole. Mounting: Screws, Maximum weight capacity: 50 kg, Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 468 x 400 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 15 - -15°. Product colour: Black, White
Product Description
Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.
