b-tech BT8431B BT8431/B - MW01
[bt8431/b]

Name: b-tech BT8431B BT8431/B - MW01
Brand: B-Tech
SKU: bt8431/b
Price: 72.00 GBP
Availability: InStock

Part Number: bt8431/b

Manufacturer: B-Tech

Condition: New

Short Description:

Universal Flat Screen Wall Mount With Tilt 39 - 55

£72.00
£86.40 - Inc VAT

Stock Status: 1x unit in stock

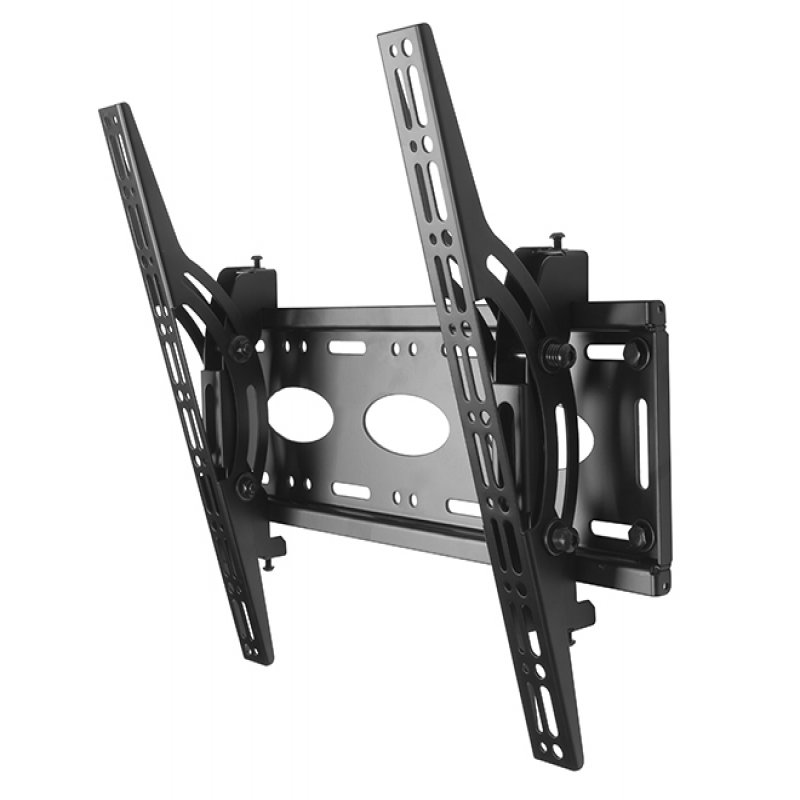

Designed to mount medium to large sized screens, the BT8431 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8431 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.

Reviews

Specs

Weight & dimensions
Width	500 mm
Depth (min)	2.1 cm
Depth (max)	14.8 cm
Height	420 mm
Mounting
Maximum weight capacity	50 kg
Maximum screen size	139.7 cm (55")
Mounting type	Wall
Maximum VESA mount	400 x 400 mm
Minimum screen size	99.1 cm (39")
Number of displays supported	1
Ergonomics
Tilt angle range	-15 - 15°
Distance to the wall (max)	14.8 cm
Distance to the wall (min)	8.1 cm
Design
Product colour	Black
Packaging content
Mounting kit	Yes
Logistics data
Master (outer) case gross weight	8.9 kg
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	83024200
Master (outer) case volume	28000 cm³

Related Products

B-Tech Acc. Collar Two-piece Style (50mm) Single Attachment BT7841/B - eet01

1m Pole - Black Bt7850-100/b - WC01

B-Tech 50mm Dia Extension Pole BT7850, Base, Black, 140 kg, BT7850-300/B - eet01

B-Tech 65" TFT BLACK TILT ONLY Universal LCD / Plasma Wall BT8432/B - eet01

B-Tech 50mm Dia Extension Pole BT7850, 2000 mm, 5 cm BT7850-200/B - eet01

B-Tech 50mm Dia Extension Pole BT7850-150/B, 1500 mm, 5 cm BT7850-150/B - eet01

B-Tech 50mm Dia Extension Pole BT7850-200, Base, Chrome, 140 BT7850-200/C - eet01

B-Tech Fixed Ceiling Mount System 2, Heavy Duty Floor / BT7822/B - eet01

B-Tech SYSTEM X Universal Twin Screen System X Universal Twin BTF845/BB - eet01

Bt7850-150/c b-tech Bt7850-150/c 50mm Pole - 1.5m - NA01

b-tech BT7371/GB BT7371/B - MW01

b-tech BT7372/B BT7372/B - MW01

b-tech BT7374 BT7374/B - MW01

b-tech BT7383 BT7383/B - MW01

b-tech BT7841/C BT7841/C - MW01

b-tech BTEBT7850-050/C BT7850-050/C - MW01

b-tech BT7850-050 BT7850-050/B - MW01

b-tech BTF842 BTF842/BB - MW01

Features

B-Tech Universal Flat Screen Wall Mount with Tilt (VESA 400). Maximum weight capacity: 50 kg, Minimum screen size: 99.1 cm (39"), Maximum screen size: 139.7 cm (55"), Maximum VESA mount: 400 x 400 mm. Tilt angle range: -15 - 15°, Distance to the wall (min): 8.1 cm, Distance to the wall (max): 14.8 cm. Product colour: Black

Product Description

Designed to mount medium to large sized screens, the BT8431 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8431 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.
