b-tech BT8432B BT8432/B - MW01
[bt8432/b]

Specs

Related Products

Features

B-Tech Universal Flat Screen Wall Mount with Tilt (VESA 600 x 400). Maximum weight capacity: 68 kg. Tilt angle range: -15 - 15°. Product colour: Black

Product Description

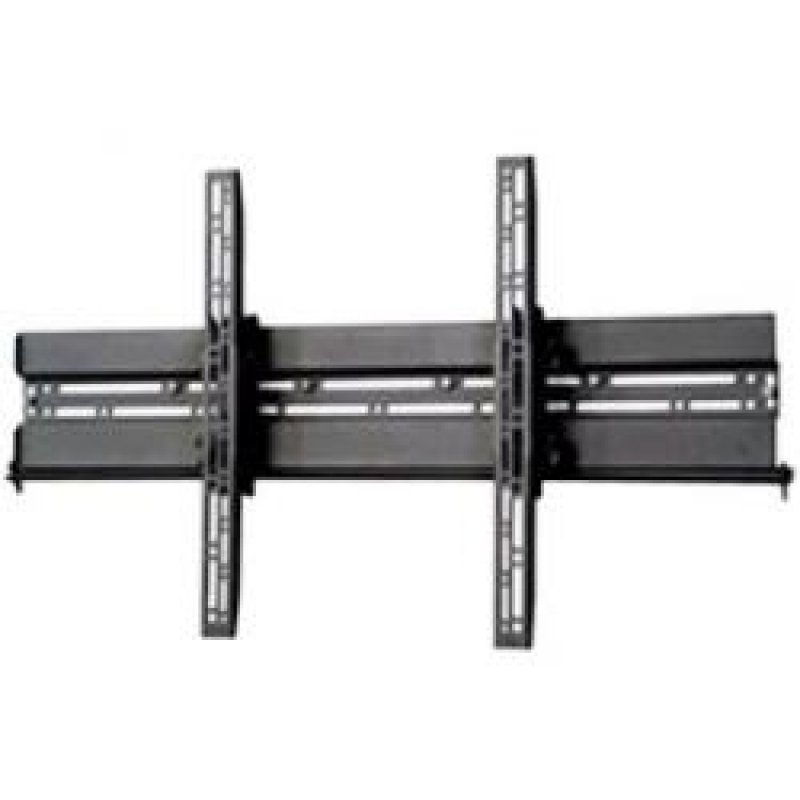

The B-TECH BT-8432 Plasma / LCD Wall mount is designed for screens from 37-inch to 61-inch and weights up to 150 lbs. Will work with VESA and Non-VESA compliant Screens. Quick "Hook On" mounting for easy installation. Mount allows Screen to tilt +/- 15 Degrees with easy knob adjustment. Includes locking bar for secure installation. All mounting hardware included. Will work with all LG 37 to 61 TV

Will work with:
- VESA MIS-F 800,400,8 VESA 800mm x 400mm found on most Philips flat panels.
- VESA 600mm x 400mm.
- VESA 400mm x 200mm.
- VESA 400mm x 100mm.
- VESA 200mm x 200mm.
- VESA 200mm x 100mm.
- VESA 100mm x 100mm.

Mounting Plate:
860mm (33.75-inch)w X 156mm (6.25-inch)h

Hook on Arms:
500mm (19.73-inch)h

Screen mounting:
width:75mm (2.98-inch)min / 835mm (32.75-inch)max
height: 474mm (18.64-inch)
