Stock Status: 1x unit in stock

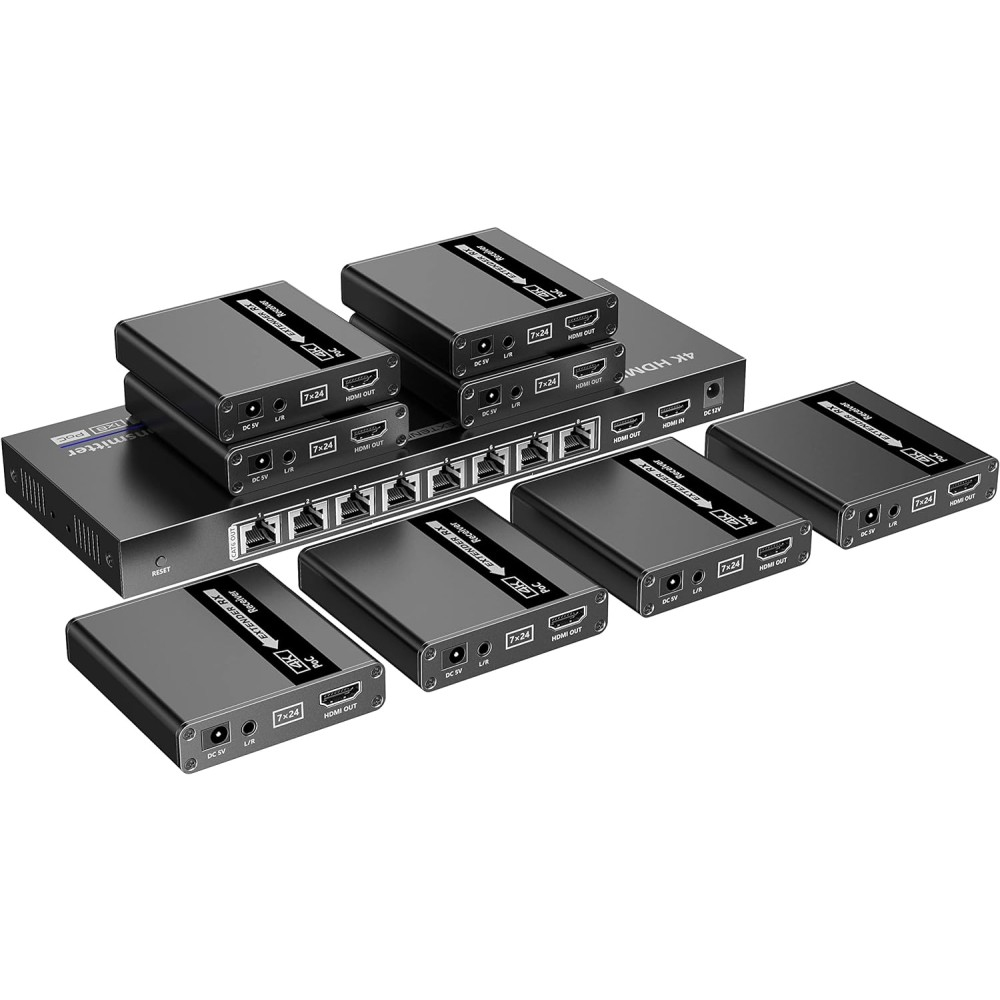

IDATA EX-HL81TYP represents the reliable solution for extending an HDMI signal over long distances, guaranteeing clarity and stability for both video and audio quality, with full support for full HD video and PCM audio signals, all while optimizing costs thanks to the use of a common copper network cable.
It finds application in various contexts: training, school, healthcare or corporate. Suitable for digital advertising, video surveillance systems via DVR, conference rooms, trade fair pavilions or commercial exhibitions and much more.
IDATA EX-HL81TYP can connect devices with HDMI output such as PCs, DVRs, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables.
Specs
| Ports & interfaces |
| Connectivity technology |
Wired |
| RJ-45 input ports |
8 |
| RJ-45 output ports |
8 |
| HDMI in |
2 |
| Number of HDMI outputs |
8 |
| HDMI version |
1.4 |
| 3.5 mm (1/8-inch) in |
Yes |
| 3.5 mm (1/8-inch) out |
Yes |
| Remote (IR) input |
8 |
| Remote (IR) output |
8 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Receiver dimensions (WxDxH) |
75 x 80 x 18 mm |
| Receiver weight |
160 g |
| Transmitter dimensions (WxDxH) |
272 x 96.5 x 23 mm |
| Transmitter weight |
615 g |
| Packaging data |
| Quantity per pack |
9 pc(s) |
| Package type |
Box |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Power |
| Power source type |
DC |
| Operating voltage |
12 V |
| Operating voltage (transmitter) |
12 V |
| Operating voltage (receiver) |
12 V |
| Power consumption (typical) |
12 W |
| Packaging content |
| Manual |
Yes |
| Mounting kit |
Yes |
| Features |
| Type |
AV transmitter & receiver |
| Maximum resolution |
3840 x 2160 pixels |
| Cable types supported |
Cat6, Cat6a, Cat7 |
| Maximum transfer distance |
70 m |
| Bidirectional |
Yes |
| LED indicators |
Yes |
| Supported video modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 960, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Audio formats supported |
LPCM, PCM |
| HDCP |
Yes |
| Material |
Metal |
| 3D |
No |
| HDCP version |
1.4 |
| Product colour |
Black |
| Certification |
EC, RoHS |
Features
Techly IDATA EX-HL81TYP. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6, Cat6a, Cat7. Connectivity technology: Wired. Power source type: DC, Operating voltage: 12 V, Operating voltage (transmitter): 12 V. Receiver dimensions (WxDxH): 75 x 80 x 18 mm, Receiver weight: 160 g, Transmitter dimensions (WxDxH): 272 x 96.5 x 23 mm. Quantity per pack: 9 pc(s), Package type: Box
Product Description
IDATA EX-HL81TYP represents the reliable solution for extending an HDMI signal over long distances, guaranteeing clarity and stability for both video and audio quality, with full support for full HD video and PCM audio signals, all while optimizing costs thanks to the use of a common copper network cable.
It finds application in various contexts: training, school, healthcare or corporate. Suitable for digital advertising, video surveillance systems via DVR, conference rooms, trade fair pavilions or commercial exhibitions and much more.
IDATA EX-HL81TYP can connect devices with HDMI output such as PCs, DVRs, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables.
