Stock Status: 1x unit in stock

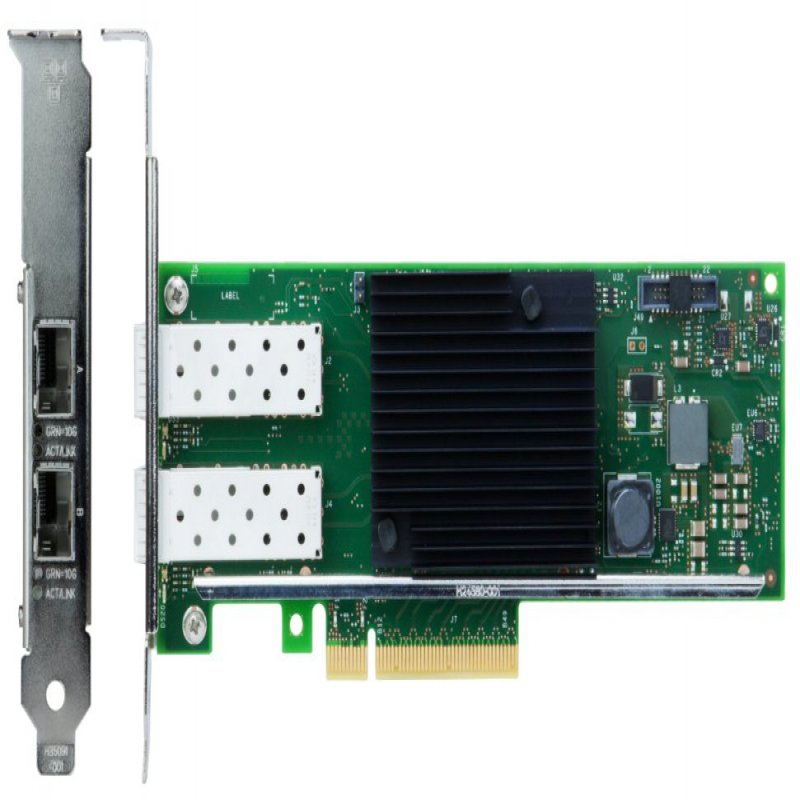

The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems.
Specs
| Networking |
| Maximum data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ae, IEEE 802.3x |
| Wake-on-LAN ready |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
9728 |
| VLAN tagging |
Y |
| iSCSI support |
Y |
| System requirements |
| Compatible operating systems |
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft Windows Server 2016
Red Hat Enterprise Linux 6 Server x64 Edition
Red Hat Enterprise Linux 7
SUSE Linux Enterprise Server 11 for AMD64/EM64T
SUSE Lin |
| Weight & dimensions |
| Width |
15 mm |
| Depth |
167 mm |
| Height |
69 mm |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Fiber |
| Fiber ports quantity |
2 |
| Fiber optic connector |
SFP+ |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 65 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 80% |
| Operating altitude |
0 - 2134 m |
| Other features |
| Flow control support |
Y |
| Intel® Virtualization Technology (Intel® VT) |
Y |
| Intel Virtual Machine Device Queues (VMDq) |
Y |
| Intelligent Offloads |
Y |
| Intel Data Direct I/O Technology |
Y |
| Receive Side Scaling (RSS) |
Y |
| Design |
| Internal |
Y |
| Component for |
Server |
| Product colour |
Black, Green |
| Certification |
EN55022
EN55024
EN 61000-3-2
EN 61000-3-3
ICES-003, Issue-004
FCC 47 CFR Part 15 Class A
VCCI
AS/NZS CISPR 22 / C-tick
RRL for KC
BSMI
UL 94 V-1 |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Quantity |
1 |
Features
Lenovo 7ZT7A00537. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green
Product Description
The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems.
